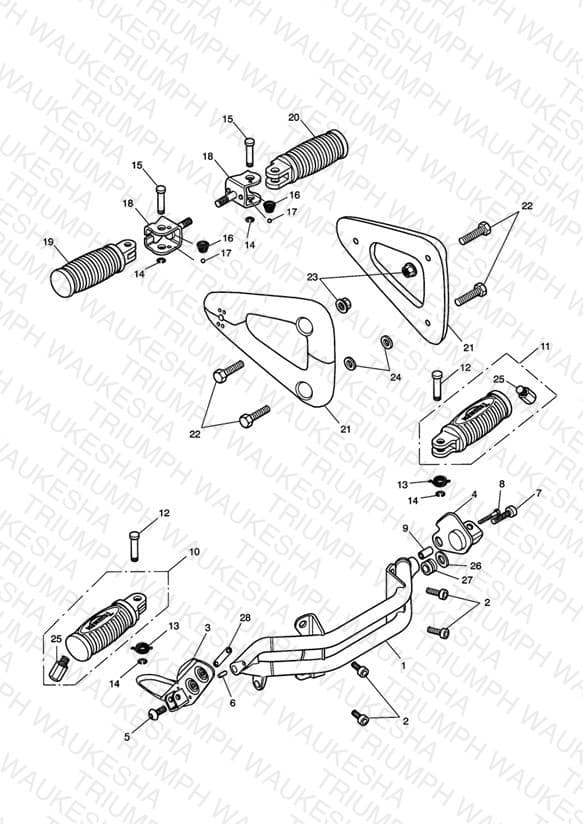

Footrests & Mountings
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2082001 Footrest/Control Hanger Assy | Footrest/Control Hanger Assy | 1 | $182.47 | Available to order | 1 |
| 2 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 4 | $7.42 | Available to order | 4 |
| 3 | T2081016 Clevis Assy, RH | Clevis Assy, RH > 281465-F2 / 279278-F4 | 1 | $138.75 | Available to order | 1 |
| 3 | T2081023 Clevis Assy, RH | Clevis Assy, RH 281466-F2 / 279279-F4 > | 1 | $138.75 | Available to order | 1 |
| 4 | T2081017 Clevis Assy, LH | Clevis Assy, LH LH | 1 | $108.34 | Available to order | 1 |
| 5 | T3330747 Screw, Btn/Hd, M10 x 24, S/S | Screw, Btn/Hd, M10 x 24, S/S M8 | 1 | $4.12 | Available to order | 1 |
| 6 | T3000085 Spirol pin | Spirol pin | 1 | $3.33 | Available to order | 1 |
| 7 | T3051222 Kit, Screw, Cap/HD, M10 | Kit, Screw, Cap/HD, M10 | 1 | $26.99 | Unavailable | View Details |
| 8 | T3330790 Bolt | Bolt M6 x 35mm > 192149 | 1 | $3.13 | Obsolete | View Details |
| 8 | T3203040 Bolt, RHHF Domed, M6 x 40 | Bolt, RHHF Domed, M6 x 40 192150 > | 1 | $1.72 | Available to order | 1 |
| 9 | T2081020 Spacer | Spacer | 1 | $16.66 | Available to order | 1 |
| 10 | T2080549 Footrest Assy, Front, RH | Footrest Assy, Front, RH > 297552-F2 / 305815-F4 | 1 | $119.76 | Available to order | 1 |
| 10 | T2080733 Footrest Assy, Front RH | Footrest Assy, Front RH 297553-F2 / 305816-F4 > | 1 | $119.76 | Available to order | 1 |
| 11 | T2080548 Footrest Assy, Front, LH | Footrest Assy, Front, LH > 297552-F2 / 305815-F4 | 1 | $62.31 | Obsolete | View Details |
| 11 | T2080732 Footrest Assy, Front, LH | Footrest Assy, Front, LH 297553-F2 / 305816-F4 > | 1 | $119.76 | Available to order | 1 |
| 12 | T2080722 Pivot Pin, Footrest | Pivot Pin, Footrest | 2 | $6.45 | Available to order | 2 |
| 13 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.29 | Available to order | 2 |
| 14 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 | 4 | $2.14 | Available to order | 4 |
| 15 | T2080721 Pivot Pin, Footrest | Pivot Pin, Footrest | 2 | $6.45 | Available to order | 2 |
| 16 | T2080724 Spring, Footrest (Rear) | Spring, Footrest (Rear) | 2 | $2.10 | Available to order | 2 |
| 17 | T2080725 Detent Ball | Detent Ball | 2 | $1.72 | Available to order | 2 |
| 18 | T2070806 Clevis Assemby, Footrest | Clevis Assemby, Footrest | 2 | $37.18 | Available to order | 2 |
| 19 | T2080234 Kit, Footrest Assy, LH & RH | Kit, Footrest Assy, LH & RH Logo Footrest | 1 | $112.13 | Available to order | 1 |
| 20 | T2080233 Kit, Footrest Assy, LH & RH | Kit, Footrest Assy, LH & RH Logo Footrest | 1 | $112.13 | Backorder — Early August 2026 | 1 |
| 21 | T2081701 Rear Footrest Hanger,Crk Blk | Rear Footrest Hanger,Crk Blk > 174616 | 2 | $98.85 | Out of Stock | Notify Me |
| 21 | T2081063 Rear Footrest Hanger | Rear Footrest Hanger 281466-F2 / 279279-F4 > | 2 | $98.85 | Out of Stock | Notify Me |
| 22 | T3200455 Bolt, HHF, M8 x 33, A2 S/S | Bolt, HHF, M8 x 33, A2 S/S | 4 | $6.65 | Available to order | 4 |
| 23 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.45 | Available to order | 2 |
| 24 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.74 | Available to order | 2 |
| 25 | T2085164 Peg, Bank Angle, 9.2mm | Peg, Bank Angle, 9.2mm | 2 | $14.07 | Available to order | 2 |
| 26 | T3550950 Wavy Washer | Wavy Washer | 1 | $4.12 | Available to order | 1 |
| 27 | T2080997 Boss, Pedal | Boss, Pedal | 1 | $19.21 | Available to order | 1 |
| 28 | T2081036 Spacer, Rear Brake M/CYL | Spacer, Rear Brake M/CYL 281466-F2 / 279279-F4 > | 1 | $20.12 | Available to order | 1 |
