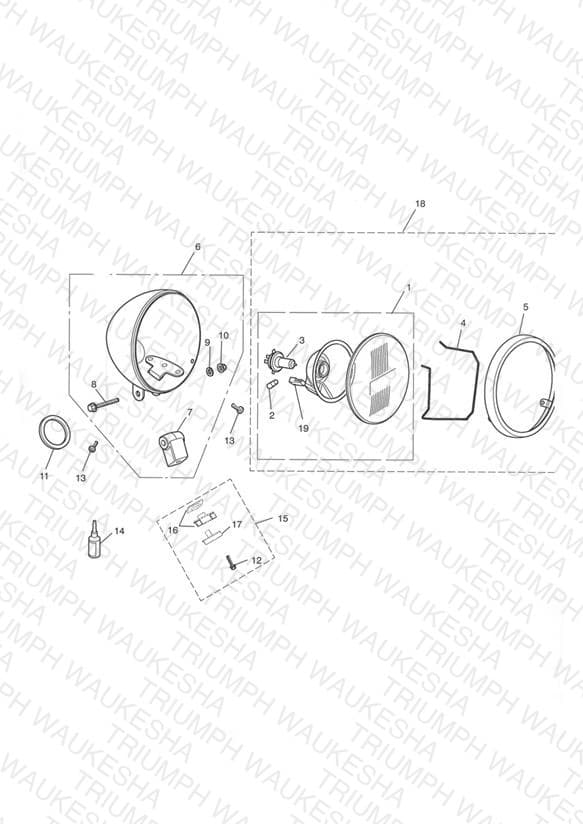

Headlight/Mountings
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2700355 Headlight & Rim Assy, LH | Headlight & Rim Assy, LH UK, NZ, AU, JP, ZA, CY, HK, MY, SG > 210696 | 1 | $285.16 | Available to order | 1 |
| 1 | T2701011 Headlight Assy, RH | Headlight Assy, RH DE,SE,BR,IT,ES,PT,GR,FR,CH,AR,NL > 199315 US,TW & CA >199339 | 1 | $268.77 | Available to order | 1 |
| 2 | T2700210 Bulb, Parking Lamp, 12V 4W | Bulb, Parking Lamp, 12V 4W 12v 4w | 1 | $4.12 | Available to order | 1 |
| 3 | T2700001 Bulb, H4 60/55W, 12V, Type 1, Clear | Bulb, H4 60/55W, 12V, Type 1, Clear | 1 | $17.69 | Available to order | 1 |
| 4 | T2700343 Spring Clip, Headlight | Spring Clip, Headlight All Vins - US, CA & TW > 199315 - DE,SE,BR,IT,ES,PT,GR,FR,CH,AR,NL > 210696 - JP,NZ,CY,ZA,MY,HK,UK,AU,SG | 1 | $9.41 | Available to order | 1 |
| 5 | T2700307 Rim headlight | Rim headlight | 1 | $133.08 | Available to order | 1 |
| 6 | T2701130 Headlight Assy, Bowl | Headlight Assy, Bowl | 1 | $180.61 | Available to order | 1 |
| 7 | T2701131 Mount, Headlight, Forged | Mount, Headlight, Forged | 1 | $66.52 | Available to order | 1 |
| 8 | T2701132 Bolt, HHF, M8x70 | Bolt, HHF, M8x70 | 1 | $6.29 | Out of Stock | Notify Me |
| 9 | T2701133 Washer, M8 | Washer, M8 | 1 | $1.27 | Available to order | 1 |
| 10 | T2700348 Locknut, Flanged, M8 | Locknut, Flanged, M8 | 1 | $4.44 | Obsolete | View Details |
| 11 | T3020351 Grommet, 56 x 0.75 x 52 | Grommet, 56 x 0.75 x 52 | 1 | $3.17 | Available to order | 1 |
| 12 | T3200090 Bolt, RHHF, M8 x 30, Slv, Enc | Bolt, RHHF, M8 x 30, Slv, Enc | 1 | $2.10 | Available to order | 1 |
| 13 | T2700081 Screw, C'sunk, Phil, M5 x .08 x 16 | Screw, C'sunk, Phil, M5 x .08 x 16 | 2 | $1.27 | Available to order | 2 |
| 14 | T2700324 Spring Clip, Headlight | Spring Clip, Headlight 199316 > DE,SE,BR,IT,ES,PT,GR,FE,CH,AR,NL 210697 > JP,NZ,CY,ZA,MY,HK,UK,AU,SG | 1 | $9.41 | Available to order | 1 |
| 15 | T2047095 Yoke Kit | Yoke Kit > 198518 | 1 | $528.14 | Available to order | 1 |
| 16 | T3020035 Grommet, Headlight Mounting | Grommet, Headlight Mounting 198519 > | 2 | $7.22 | Available to order | 2 |
| 17 | T3010096 Flanged Sleeve, M8 x 12.8 x 17.2 | Flanged Sleeve, M8 x 12.8 x 17.2 198519 > | 1 | $11.88 | Available to order | 1 |
| 18 | T2700356 Headlight & Rim Assy, RH | Headlight & Rim Assy, RH 199316 > DE,SE,BR,IT,ES,PT,GR,FR,CH,AR,NL | 1 | $279.90 | Backorder — Late August 2026 | 1 |
| 18 | T2700357 Headlight & Rim Assy, SYM | Headlight & Rim Assy, SYM 199340 > US,TW & CA | 1 | $279.90 | Available to order | 1 |
| 19 | T2701017 Subharness, Headlight | Subharness, Headlight Outer cover not supplied - 198519 > | 1 | $26.56 | Available to order | 1 |
