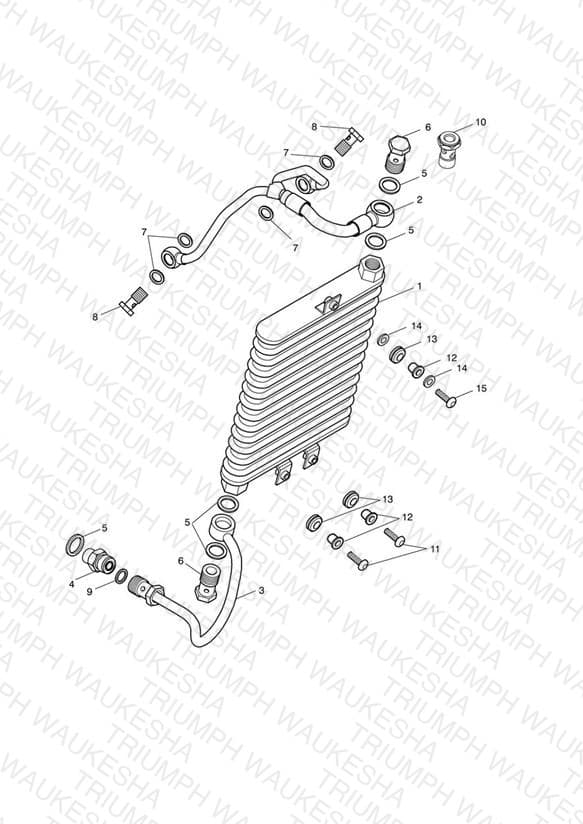

Oil Cooler
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1210226 Oil Cooler, 12 Row | Oil Cooler, 12 Row ** Part No Longer Available ** | 1 | $431.41 | Obsolete | View Details |
| 2 | T2101675 Kit, Oil Feed Return | Kit, Oil Feed Return > Eng No 527191 | 1 | $262.38 | Available to order | 1 |
| 2 | T2101660 Pipe, Oil Feed | Pipe, Oil Feed Eng No 527192 > | 1 | $152.11 | Available to order | 1 |
| 3 | T2101626 Oil Return Pipe | Oil Return Pipe Eng No 534557 > | 1 | $112.13 | Available to order | 1 |
| 4 | T2101600 Adaptor, Male | Adaptor, Male | 1 | $12.63 | Available to order | 1 |
| 5 | T3550905 Washer, M18 x 21.9 OD, Copper | Washer, M18 x 21.9 OD, Copper | 5 | $2.48 | Available to order | 5 |
| 6 | T2100227 Banjo Bolt, M18 x 31 | Banjo Bolt, M18 x 31 | 2 | $13.33 | Available to order | 2 |
| 7 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 4 | $4.32 | Available to order | 4 |
| 8 | T1210241 Banjo Bolt, M14 x 28 | Banjo Bolt, M14 x 28 | 2 | $13.18 | Available to order | 2 |
| 9 | T2101380 O Ring | O Ring | 1 | $4.12 | Available to order | 1 |
| 10 | T2101900 Banjo Bolt, M18 Ext, M12 Int | Banjo Bolt, M18 Ext, M12 Int | 1 | $17.77 | Available to order | 1 |
| 11 | T3203025 Bolt, RHHF, Domed, M6 x 25, S/S | Bolt, RHHF, Domed, M6 x 25, S/S > Eng No 482550 | 2 | $2.10 | Available to order | 2 |
| 11 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv Eng No 482551 > | 2 | $2.46 | Available to order | 2 |
| 12 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 3 | $5.78 | Available to order | 3 |
| 13 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 3 | $2.85 | Available to order | 3 |
| 14 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.00 | Available to order | 2 |
| 15 | T3203040 Bolt, RHHF Domed, M6 x 40 | Bolt, RHHF Domed, M6 x 40 > 465047 | 1 | $1.72 | Available to order | 1 |
| 15 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv 465048 > | 1 | $2.37 | Available to order | 1 |
