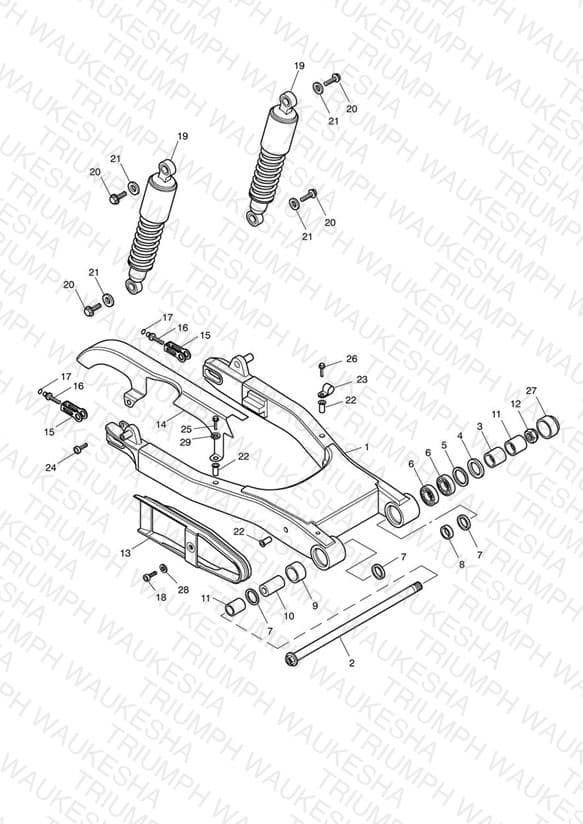

Rear Suspension
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2059600 Swinging arm assembly | Swinging arm assembly > 713426 - Inc bearings etc, items 4,5,6,7,9 & 22 | 1 | $1170.64 | Out of Stock | Notify Me |
| 1 | T2050307 Swinging Arm Assembly, 90% Gloss | Swinging Arm Assembly, 90% Gloss 713427 > - Inc bearings etc, items 4,5,6,7,9 & 22 | 1 | $1170.64 | Out of Stock | Notify Me |
| 2 | T2059590 Spindle, Bolt, Swinging Arm | Spindle, Bolt, Swinging Arm | 1 | $131.17 | Out of Stock | Notify Me |
| 3 | T2059591 Spacer, Outrigger, Inner | Spacer, Outrigger, Inner | 1 | $12.46 | Available to order | 1 |
| 4 | T3600044 Oil Seal, 35 25 4 | Oil Seal, 35 25 4 | 1 | $10.44 | Available to order | 1 |
| 5 | T3500204 Circlip, Int, 35 x 1.5 | Circlip, Int, 35 x 1.5 | 1 | $0.97 | Available to order | 1 |
| 6 | T3800506 Bearing, Ball, 17 x 35 x 10 | Bearing, Ball, 17 x 35 x 10 | 2 | $19.29 | Available to order | 2 |
| 7 | T3600170 Seal, SD 25 32 04 | Seal, SD 25 32 04 | 3 | $13.51 | Available to order | 3 |
| 8 | T2054063 Spacer, 25 x 17 x 8.5 | Spacer, 25 x 17 x 8.5 | 1 | $8.01 | Available to order | 1 |
| 9 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 10 | T2054344 Sleeve, Ground, 25 x 17 x 37 | Sleeve, Ground, 25 x 17 x 37 | 1 | $13.21 | Available to order | 1 |
| 11 | T2059592 Spacer, Outrigger, Outer | Spacer, Outrigger, Outer | 2 | $23.48 | Available to order | 2 |
| 12 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 13 | T2059601 Chain Rubbing Strip | Chain Rubbing Strip | 1 | $46.76 | Available to order | 1 |
| 14 | T2059509 Chainguard, Fab, Blk | Chainguard, Fab, Blk > 469050 | 1 | $96.97 | Out of Stock | Notify Me |
| 14 | T2059539 Chainguard, Fab, Blk | Chainguard, Fab, Blk 469051 > | 1 | $96.97 | Available to order | 1 |
| 15 | T2059566 Brackets, Chain Adjuster | Brackets, Chain Adjuster | 2 | $25.20 | Available to order | 2 |
| 16 | T3330809 Screw, Chain Adjuster | Screw, Chain Adjuster | 2 | $9.57 | Available to order | 2 |
| 17 | T3500042 Circlip, Chain Adjuster | Circlip, Chain Adjuster | 2 | $0.89 | Available to order | 2 |
| 18 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 19 | T2059610 Rsu, Preload Adjustable | Rsu, Preload Adjustable > 469050 | 2 | $668.93 | Out of Stock | Notify Me |
| 19 | T2055025 RSU, Preload Adjustable | RSU, Preload Adjustable 469051 > 580693 | 2 | $668.93 | Available to order | 2 |
| 19 | T2055026 RSU, Preload Adjustable | RSU, Preload Adjustable 580964 > 617260 | 2 | $668.93 | Available to order | 2 |
| 19 | T2055036 RSU, Preload Adjuster, Black | RSU, Preload Adjuster, Black 617621 > | 2 | $668.93 | Available to order | 2 |
| 20 | T3205457 Bolt, HHF, Lghtd, M8 x 20, Enc | Bolt, HHF, Lghtd, M8 x 20, Enc > 465269 | 4 | $1.62 | Available to order | 4 |
| 21 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 > 465269 | 4 | $2.74 | Available to order | 4 |
| 22 | T3350216 Threaded Insert, M6 | Threaded Insert, M6 | 3 | $3.39 | Available to order | 3 |
| 23 | T3700192 P Clip, ID 8mm | P Clip, ID 8mm | 1 | $11.12 | Available to order | 1 |
| 24 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 25 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
| 26 | T3203203 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Out of Stock | Notify Me |
| 27 | T3450028 Moulding Cap 24 A/F | Moulding Cap 24 A/F | 1 | $3.17 | Available to order | 1 |
| 28 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 1 | $1.40 | Available to order | 1 |
