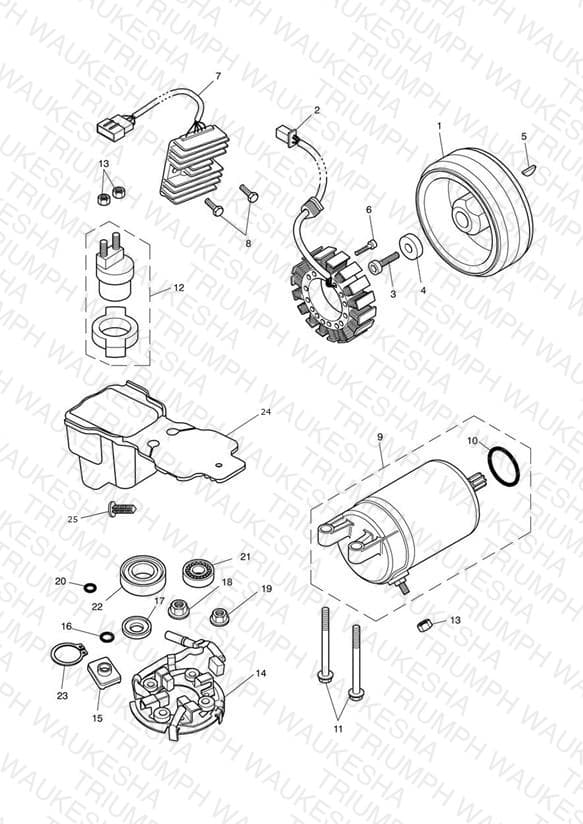

Starter & Alternator
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1305501 Rotor, Alternator | Rotor, Alternator | 1 | $985.79 | Available to order | 1 |
| 2 | T1305502 Stator, Alternator | Stator, Alternator | 1 | $566.24 | Available to order | 1 |
| 3 | T3330831 Bolt, Cap HD, M12x40 | Bolt, Cap HD, M12x40 | 1 | $7.22 | Available to order | 1 |
| 4 | T3555002 Washer 13 x 30 x 6 | Washer 13 x 30 x 6 | 1 | $4.19 | Out of Stock | Notify Me |
| 5 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 6 | T3051135 Screw, Cap/Hd, M6 x 30, Enc | Screw, Cap/Hd, M6 x 30, Enc | 3 | $1.06 | Available to order | 3 |
| 7 | T1300889 Kit, Regulator Rectifier | Kit, Regulator Rectifier > 513324 | 1 | $422.46 | Available to order | 1 |
| 7 | T1300888 Regulator, Alternator | Regulator, Alternator 513325 > | 1 | $413.67 | Available to order | 1 |
| 8 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv > 513324 | 2 | $2.46 | Available to order | 2 |
| 8 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv 513325 > | 2 | $4.55 | Available to order | 2 |
| 9 | T1311115 Starter Motor | Starter Motor | 1 | $1090.29 | Available to order | 1 |
| 10 | T1310910 O ring | O ring | 1 | $5.98 | Available to order | 1 |
| 11 | T3205075 Bolt, HHF, Lghtd, M6 x 65, Slv | Bolt, HHF, Lghtd, M6 x 65, Slv | 2 | $3.77 | Available to order | 2 |
| 12 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 13 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 3 | $0.67 | Available to order | 3 |
| 14 | T1310024 Holder, Sub Assy, Starter | Holder, Sub Assy, Starter | 1 | $79.84 | Available to order | 1 |
| 15 | T1310028 Brushing Insulation | Brushing Insulation | 1 | $2.63 | Available to order | 1 |
| 16 | T1310029 O Ring, Starter Motor | O Ring, Starter Motor | 1 | $2.25 | Backorder — Early August 2026 | 1 |
| 17 | T1310030 Brushing Insulation | Brushing Insulation | 1 | $1.95 | Obsolete | View Details |
| 18 | T1310031 Nut, Starter Motor | Nut, Starter Motor | 1 | $1.05 | Obsolete | View Details |
| 19 | T1310032 Nut, Starter Motor | Nut, Starter Motor | 1 | $2.21 | Obsolete | View Details |
| 20 | T1310033 Seal, Starter Motor | Seal, Starter Motor | 1 | $5.17 | Obsolete | View Details |
| 21 | T1310035 Bearing, Starter Motor | Bearing, Starter Motor | 1 | $7.52 | Available to order | 1 |
| 22 | T1310036 Bearing, Starter Motor | Bearing, Starter Motor | 1 | $9.94 | Obsolete | View Details |
| 23 | T1310037 Circlip, Starter Motor | Circlip, Starter Motor | 1 | $1.40 | Out of Stock | Notify Me |
| 24 | T2502501 Boot, Rubber, Solenoid | Boot, Rubber, Solenoid | 1 | $10.06 | Available to order | 1 |
| 25 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 1 | $5.24 | Available to order | 1 |
| 26 | 1310009-T0301 Terminal Kit, Starter Solenoid | Terminal Kit, Starter Solenoid Not Illustrated | 1 | $12.63 | Backorder — Late August 2026 | 1 |
