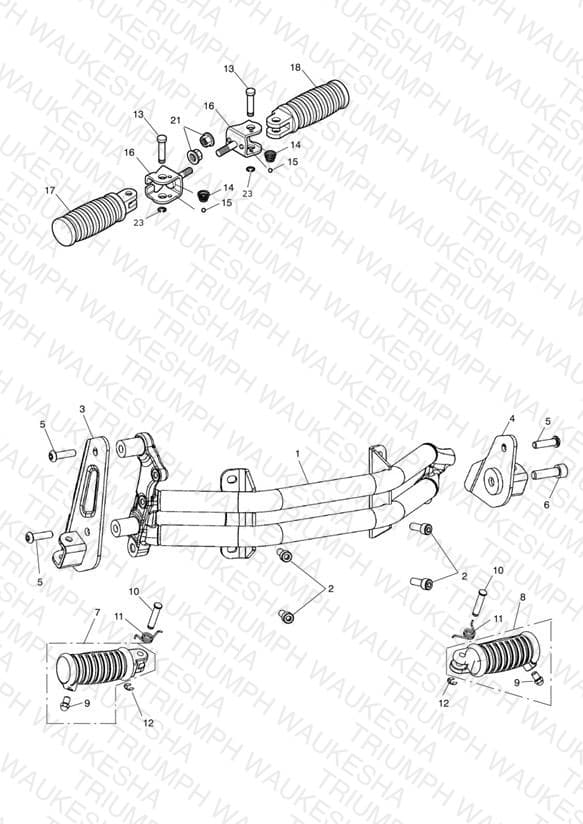

Footrests & Mountings 469051 > 617620
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2085065 Foot Control Hanger Assy | Foot Control Hanger Assy > 532899 | 1 | $182.47 | Available to order | 1 |
| 1 | T2085076 Foot Control Hanger Assy | Foot Control Hanger Assy 532900 > | 1 | $190.11 | Available to order | 1 |
| 2 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 4 | $7.42 | Available to order | 4 |
| 3 | T2085062 Foot Control Plate, RH | Foot Control Plate, RH | 1 | $95.04 | Available to order | 1 |
| 4 | T2085061 Foot Control Plate, LH | Foot Control Plate, LH | 1 | $92.25 | Available to order | 1 |
| 5 | T3331022 Screw, M8 x 30, S/S | Screw, M8 x 30, S/S | 3 | $12.29 | Available to order | 3 |
| 6 | T3203206 Screw, Cap/Hd, M10 x 35, Slv | Screw, Cap/Hd, M10 x 35, Slv | 1 | $6.67 | Available to order | 1 |
| 7 | T2085057 Footrest Assy, Front, RH | Footrest Assy, Front, RH | 1 | $119.76 | Available to order | 1 |
| 8 | T2085056 Footrest Assy, Front, LH | Footrest Assy, Front, LH | 1 | $119.76 | Available to order | 1 |
| 9 | T2085164 Peg, Bank Angle, 9.2mm | Peg, Bank Angle, 9.2mm | 2 | $14.07 | Available to order | 2 |
| 10 | T2080547 Pivot pin | Pivot pin | 2 | $6.55 | Available to order | 2 |
| 11 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.29 | Available to order | 2 |
| 12 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 2 | $2.85 | Available to order | 2 |
| 13 | T2080721 Pivot Pin, Footrest | Pivot Pin, Footrest | 2 | $6.45 | Available to order | 2 |
| 14 | T2080724 Spring, Footrest (Rear) | Spring, Footrest (Rear) | 2 | $2.10 | Available to order | 2 |
| 15 | T2080725 Detent Ball | Detent Ball | 2 | $1.72 | Available to order | 2 |
| 16 | T2070806 Clevis Assemby, Footrest | Clevis Assemby, Footrest | 2 | $37.18 | Available to order | 2 |
| 17 | T2081044 Footrest, RH, Rear | Footrest, RH, Rear Logo Footrest | 1 | $117.87 | Available to order | 1 |
| 18 | T2081043 Footrest, LH, Rear | Footrest, LH, Rear Logo Footrest | 1 | $117.87 | Available to order | 1 |
| 21 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.45 | Available to order | 2 |
| 23 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 | 2 | $2.14 | Available to order | 2 |
