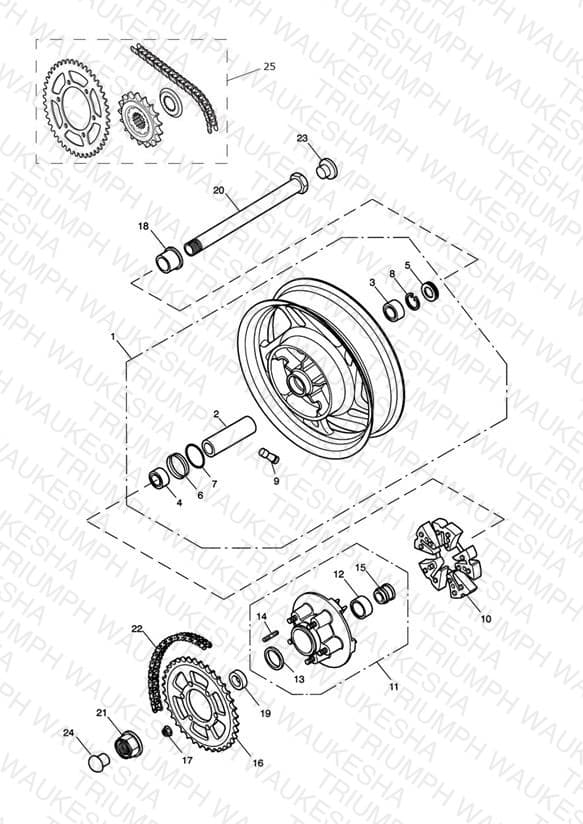

Rear Wheel & Final Drive > 469050
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2015102 Wheel Assy, Rear, 15x3.5 | Wheel Assy, Rear, 15x3.5 | 1 | $1021.03 | Available to order | 1 |
| 2 | T2003514 Spacer, Wheel | Spacer, Wheel | 1 | $43.42 | Available to order | 1 |
| 3 | T3800705 Ball Bearing | Ball Bearing | 1 | $9.10 | Available to order | 1 |
| 4 | T3800703 Bearing, Ball, 20 47 14 | Bearing, Ball, 20 47 14 | 1 | $45.80 | Available to order | 1 |
| 5 | T3600704 Seal, Oil, DC 30 52 7 | Seal, Oil, DC 30 52 7 | 1 | $7.52 | Available to order | 1 |
| 6 | 2012040-T0301 Carrier, O Ring, Rear | Carrier, O Ring, Rear | 1 | $1.40 | Available to order | 1 |
| 7 | 3600023-T0301 O ring | O ring | 1 | $1.27 | Backorder — Mid August 2026 | 1 |
| 8 | 3500013-T0301 Circlip, Rear Wheel | Circlip, Rear Wheel | 1 | $3.01 | Available to order | 1 |
| 9 | T2006615 Valve Assy, aluminium, 90, Slv | Valve Assy, aluminium, 90, Slv | 1 | $16.04 | Available to order | 1 |
| 10 | T2012201 Rubber, Cush Drive | Rubber, Cush Drive | 1 | $114.08 | Available to order | 1 |
| 11 | T2012199 Sprocket Carrier Assy, Black | Sprocket Carrier Assy, Black | 1 | $378.49 | Out of Stock | Notify Me |
| 12 | 3800018-T0301 Ball bearing | Ball bearing | 1 | $45.12 | Available to order | 1 |
| 13 | 3600022-T0301 Seal | Seal | 1 | $5.14 | Available to order | 1 |
| 14 | T2012108 Stud, Sprocket Carrier | Stud, Sprocket Carrier | 5 | $1.13 | Out of Stock | Notify Me |
| 15 | T2012092 Spacer, Internal | Spacer, Internal | 1 | $22.72 | Available to order | 1 |
| 16 | T2015210 Rear Sprocket | Rear Sprocket | 1 | $53.84 | Out of Stock | Notify Me |
| 17 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 5 | $6.07 | Available to order | 5 |
| 18 | T2012053 Spacer, RH, R/Wheel | Spacer, RH, R/Wheel | 1 | $23.08 | Available to order | 1 |
| 19 | T2010647 Spacer Tube, 35 x 20 x 12.5 | Spacer Tube, 35 x 20 x 12.5 | 1 | $8.09 | Available to order | 1 |
| 20 | T2015208 Spindle, Rear Wheel | Spindle, Rear Wheel | 1 | $112.60 | Out of Stock | Notify Me |
| 21 | T3350152 Locknut, Flgd, M18 | Locknut, Flgd, M18 | 1 | $15.72 | Available to order | 1 |
| 22 | T2015209 Chain, Final Drive 525 112 Links | Chain, Final Drive 525 112 Links | 1 | $250.39 | Available to order | 1 |
| 23 | T3450063 Bung | Bung > 431043 | 1 | $6.45 | Available to order | 1 |
| 24 | T3450258 Bung, Black | Bung, Black > 431043 | 1 | $9.88 | Available to order | 1 |
| 25 | T2017188 Chain & Sprocket Kit, 112/42/18 | Chain & Sprocket Kit, 112/42/18 | 1 | $274.57 | Available to order | 1 |
