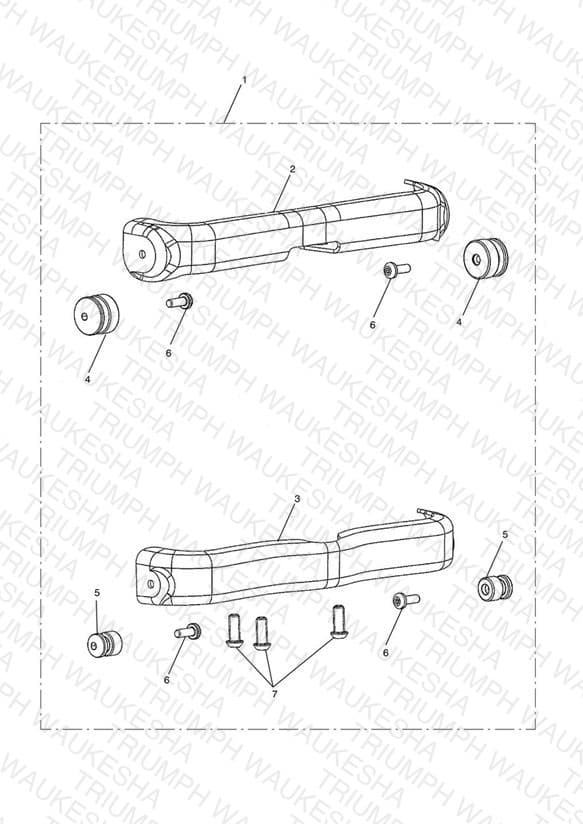

Screen Mounting Kit
Parts (7)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9708238 Screen Mounting Kit | Screen Mounting Kit | 1 | $39.50 | Obsolete | View Details |
| 2 | A9701230 Bracket, Screen, Upper | Bracket, Screen, Upper | 1 | $33.48 | Out of Stock | Notify Me |
| 3 | A9701231 Bracket, Screen, Lower | Bracket, Screen, Lower | 1 | $39.42 | Backorder — Late August 2026 | 1 |
| 4 | T2302383 Spool, M6 x 22.6, SS | Spool, M6 x 22.6, SS | 2 | $14.46 | Available to order | 2 |
| 5 | A9701256 Spool, M6 x 22 x 16, Slv | Spool, M6 x 22 x 16, Slv | 2 | $5.50 | Obsolete | View Details |
| 6 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 4 | $2.63 | Available to order | 4 |
| 7 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 3 | $3.50 | Available to order | 3 |
