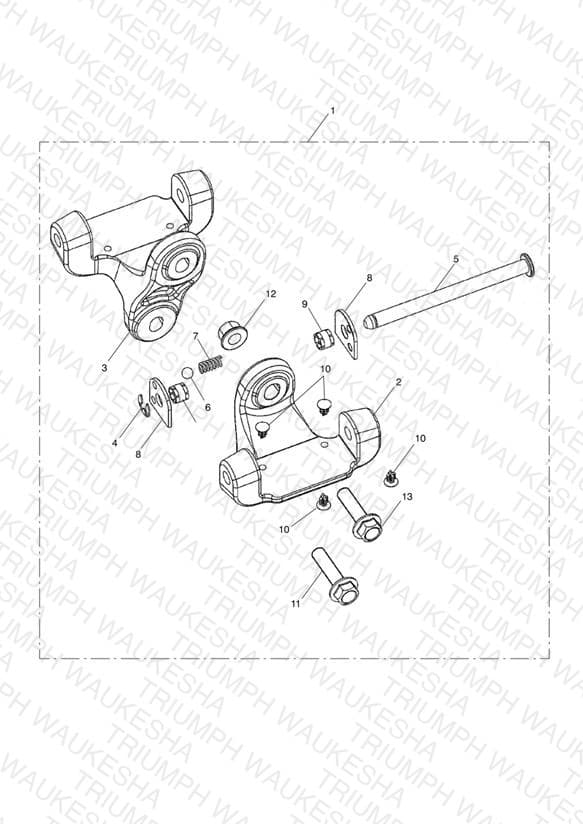

Pillion Footboard Mounting Kit
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9778000 Pillion Footboard Mounting Kit | Pillion Footboard Mounting Kit | 1 | $189.00 | Obsolete | View Details |
| 2 | A9770012 Bracket, Pillion Footboard, RHS | Bracket, Pillion Footboard, RHS | 1 | $33.00 | Obsolete | View Details |
| 3 | A9770013 Bracket, Pillion Footboard, LHS | Bracket, Pillion Footboard, LHS | 1 | $33.00 | Obsolete | View Details |
| 4 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 2 | $2.85 | Available to order | 2 |
| 5 | T2083017 Pivot Pin | Pivot Pin | 2 | $17.77 | Available to order | 2 |
| 6 | T2081675 Detent Ball | Detent Ball | 2 | $1.91 | Available to order | 2 |
| 7 | T2081674 Spring, Detent | Spring, Detent | 2 | $6.39 | Available to order | 2 |
| 8 | T2081704 Detent Plate | Detent Plate | 4 | $10.18 | Available to order | 4 |
| 9 | T3750022 Bush, 8 x 10 x 8, Zero Tol | Bush, 8 x 10 x 8, Zero Tol | 4 | $12.55 | Available to order | 4 |
| 10 | T3300008 Rivet, Barbed, 2.1-4.3mm | Rivet, Barbed, 2.1-4.3mm | 8 | $10.18 | Available to order | 8 |
| 11 | T3205868 Bolt, HHF, Lghtd, M8 x 33, Slv | Bolt, HHF, Lghtd, M8 x 33, Slv | 2 | $6.65 | Available to order | 2 |
| 12 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.45 | Available to order | 2 |
| 13 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 2 | $1.21 | Available to order | 2 |
