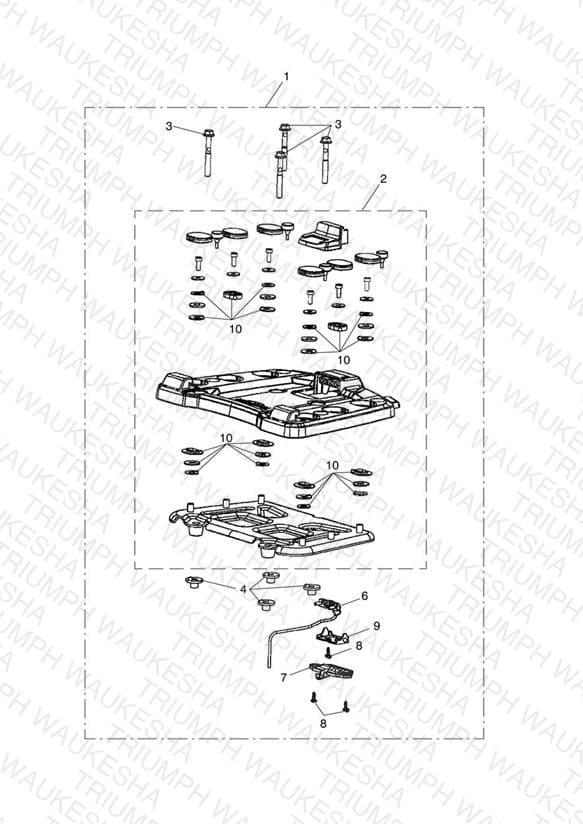

Sliding Carriage Assy
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9508155 Sliding Carriage Assy Kit | Sliding Carriage Assy Kit | 1 | $92.00 | Obsolete | View Details |
| 2 | T2351532 Sliding Carriage Assembly | Sliding Carriage Assembly | 1 | $150.17 | Available to order | 1 |
| 3 | T3202315 Bolt, HHF, M8 x 65, Slv | Bolt, HHF, M8 x 65, Slv | 4 | $8.18 | Available to order | 4 |
| 4 | T3010121 Sleeve, Flanged, 8.2 x 11.3 x 9.15 | Sleeve, Flanged, 8.2 x 11.3 x 9.15 | 4 | $2.25 | Available to order | 4 |
| 5 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long Not illustrated | 1 | $0.89 | Available to order | 1 |
| 6 | T2353261 Sub Harness, Top Box, 2 Pin | Sub Harness, Top Box, 2 Pin | 1 | $37.81 | Unavailable | View Details |
| 7 | T2350534 Harness Cover, Sliding Carriage | Harness Cover, Sliding Carriage | 1 | $8.90 | Available to order | 1 |
| 8 | T3331680 Screw, Pan/HD, S/Tap, 4.2 x 13 | Screw, Pan/HD, S/Tap, 4.2 x 13 | 3 | $2.37 | Available to order | 3 |
| 9 | T2351245 Moulding, Terminal Support SC | Moulding, Terminal Support SC | 1 | $7.62 | Available to order | 1 |
| 10 | T2351548 Spares Kit, Sliding Carriage | Spares Kit, Sliding Carriage | 1 | $32.38 | Available to order | 1 |
