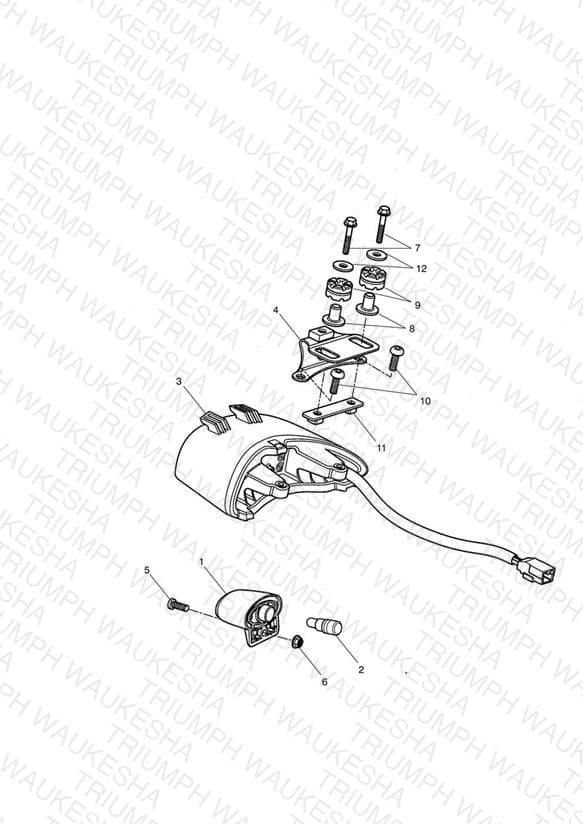

Rear Light
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2702699 Light, Reg Plate | Light, Reg Plate | 1 | $34.72 | Available to order | 1 |
| 2 | T2700938 Bulb, W5W, 5W, 12V, Clear | Bulb, W5W, 5W, 12V, Clear | 1 | $4.30 | Available to order | 1 |
| 3 | T2703219 Rear Light Assy, LED | Rear Light Assy, LED | 1 | $137.81 | Unavailable | View Details |
| 4 | T2701508 Support Bracket, Rear Light | Support Bracket, Rear Light | 1 | $33.74 | Available to order | 1 |
| 5 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv | 1 | $5.69 | Available to order | 1 |
| 6 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 1 | $2.25 | Available to order | 1 |
| 7 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
| 8 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 9 | T3020601 Grommet, Castellated | Grommet, Castellated | 2 | $4.01 | Available to order | 2 |
| 10 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 11 | T2702072 Bracket, M6 | Bracket, M6 | 1 | $13.45 | Available to order | 1 |
| 12 | T3555025 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 2 | $1.72 | Available to order | 2 |
