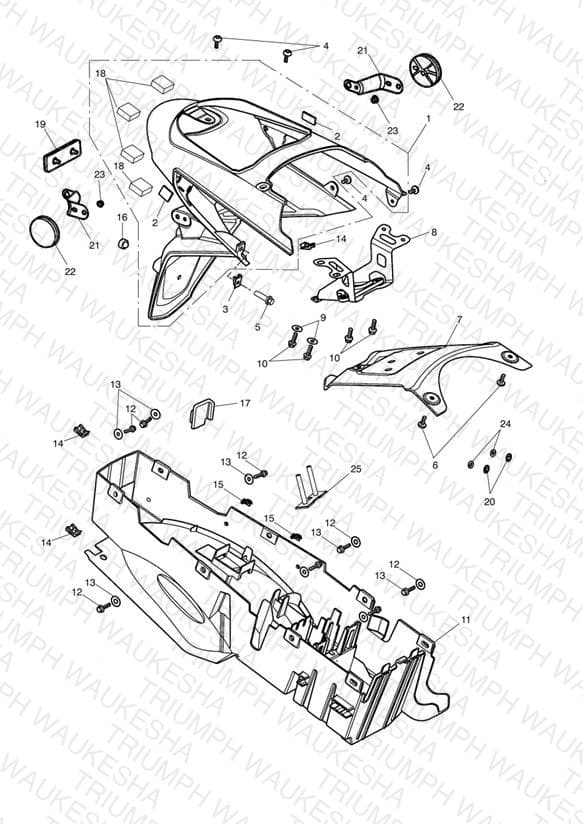

Rear Mudguard & Battery Box
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2302122 Rear Mudguard Assy | Rear Mudguard Assy | 1 | $407.99 | Available to order | 1 |
| 2 | T2309977 Adhesive Pad, 25 x 18 | Adhesive Pad, 25 x 18 | 2 | $3.23 | Out of Stock | Notify Me |
| 3 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 1 | $4.65 | Available to order | 1 |
| 4 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 4 | $5.24 | Available to order | 4 |
| 5 | T3338989 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S | 1 | $7.20 | Available to order | 1 |
| 6 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $7.18 | Available to order | 2 |
| 7 | T2302078 Infill, Rear Mudguard, Mldg | Infill, Rear Mudguard, Mldg | 1 | $23.35 | Available to order | 1 |
| 8 | T2301204 Support Bracket, Mudguard | Support Bracket, Mudguard | 1 | $124.48 | Out of Stock | Notify Me |
| 9 | T3555023 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 2 | $1.36 | Available to order | 2 |
| 10 | T3330892 Bolt, RHHF, M5 x 15, S5041 | Bolt, RHHF, M5 x 15, S5041 | 4 | $1.21 | Backorder — Early October 2026 | 4 |
| 11 | T2303096 Kit, Battery Tray | Kit, Battery Tray > 503669 | 1 | $55.98 | Out of Stock | Notify Me |
| 11 | T2302097 Battery Tray, Moulding | Battery Tray, Moulding 503670 > | 1 | $45.06 | Out of Stock | Notify Me |
| 12 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 8 | $4.84 | Available to order | 8 |
| 13 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 8 | $1.29 | Available to order | 8 |
| 14 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 3 | $2.63 | Available to order | 3 |
| 15 | T3700162 Clip, Cable/Pipe | Clip, Cable/Pipe | 2 | $1.21 | Available to order | 2 |
| 16 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 | 1 | $2.31 | Available to order | 1 |
| 17 | T2302359 Battery Tray Bung | Battery Tray Bung | 1 | $3.54 | Backorder — Early October 2026 | 1 |
| 18 | T3660149 Rubber Pad, 25 x 25 x 20 | Rubber Pad, 25 x 25 x 20 | 4 | $7.90 | Available to order | 4 |
| 19 | T2707111 Reflex Reflector | Reflex Reflector | 1 | $10.52 | Available to order | 1 |
| 20 | T3550253 Washer, Dia 5 mm, Retaining | Washer, Dia 5 mm, Retaining | 2 | $1.04 | Available to order | 2 |
| 21 | T2700529 Bracket, Side Reflector, Rear | Bracket, Side Reflector, Rear | 2 | $27.91 | Available to order | 2 |
| 22 | T2700464 Reflector, Red, Circular | Reflector, Red, Circular | 2 | $7.60 | Available to order | 2 |
| 23 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.40 | Available to order | 2 |
| 24 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 2 | $5.65 | Available to order | 2 |
| 25 | T2303095 Stud Plate, M4 | Stud Plate, M4 | 1 | $10.32 | Out of Stock | Notify Me |
