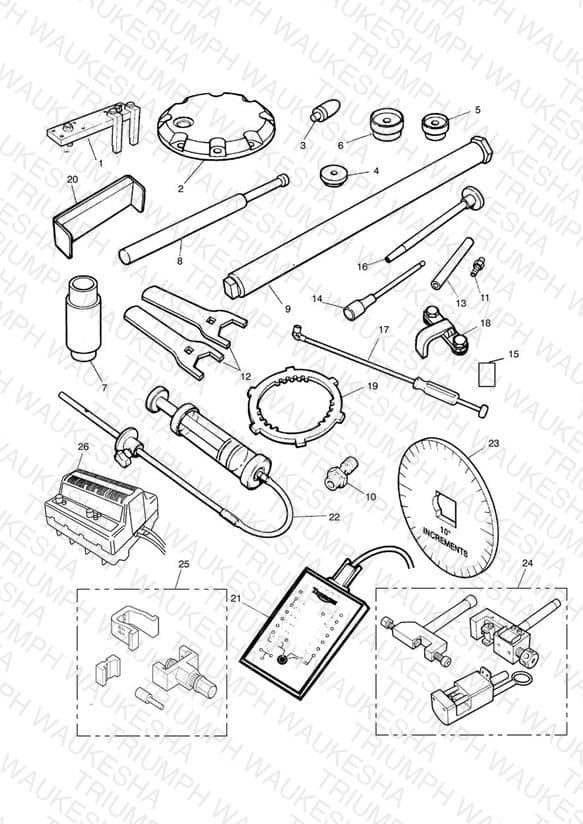

Service Tools All Versions
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T3880012 Removal tool | Removal tool Valve shim | 1 | $176.16 | Available to order | 1 |
| 2 | 3880050-T0301 Timing cover | Timing cover | 1 | $54.20 | Available to order | 1 |
| 3 | T3880060 Swinging Arm, Bearing Alignment | Swinging Arm, Bearing Alignment | 1 | $27.86 | Available to order | 1 |
| 4 | 3880065-T0301 Bearing adaptor | Bearing adaptor | 1 | $11.43 | Available to order | 1 |
| 5 | 3880070-T0301 Bearing Installer | Bearing Installer Wheel | 1 | $11.95 | Out of Stock | Notify Me |
| 6 | 3880075-T0301 Wheel Bearing Fitment | Wheel Bearing Fitment Wheel | 1 | $15.80 | Available to order | 1 |
| 7 | 3880080-T0301 Fork Seal/Bearing Drift | Fork Seal/Bearing Drift Fork seal/bearing | 1 | $23.73 | Backorder — Early August 2026 | 1 |
| 8 | 3880085-T0301 Fork Piston Holder | Fork Piston Holder Fork Assembler | 1 | $10.23 | Available to order | 1 |
| 9 | 3880090-T0301 Fork kit | Fork kit Fork Assembler | 1 | $28.94 | Available to order | 1 |
| 10 | 3880095-T0301 Adaptor | Adaptor Oil pressure | 1 | $29.43 | Obsolete | View Details |
| 11 | 3880120-T0301 Adaptor | Adaptor Float Chamber | 1 | $21.41 | Available to order | 1 |
| 12 | T3880140 Spanner, Thin, 38mm | Spanner, Thin, 38mm | 2 | $16.43 | Available to order | 2 |
| 13 | 3880125-T0301 Adaptor | Adaptor Float Gauge | 1 | $20.78 | Obsolete | View Details |
| 14 | 3880130-T0301 Allen key | Allen key | 1 | $15.91 | Obsolete | View Details |
| 15 | 3880150-T0301 Plastigauge | Plastigauge Not illustrated | — | $33.47 | Available to order | 1 |
| 16 | 3880155-T0301 Punch | Punch | 1 | $43.24 | Obsolete | View Details |
| 17 | 3880015-T0301 Carburettor Adjustment Tool | Carburettor Adjustment Tool | 1 | $214.45 | Obsolete | View Details |
| 18 | 3880040-T0301 Locking device | Locking device Alternator shaft | 1 | $33.36 | Available to order | 1 |
| 19 | 3880025-T0301 Locking plate | Locking plate Clutch | 1 | $21.41 | Available to order | 1 |
| 20 | T3880185 Stop plate | Stop plate | 1 | $38.19 | Obsolete | View Details |
| 21 | T3880170 Diagnostic kit | Diagnostic kit | 1 | $686.88 | Obsolete | View Details |
| 22 | T3880160 Evacuator | Evacuator Fork filler | 1 | $162.23 | Out of Stock | Notify Me |
| 23 | T3880105 Angular Torque Gauge | Angular Torque Gauge | 1 | $4.54 | Available to order | 1 |
| 24 | A3880205 Kit chain link tool | Kit chain link tool > 16921 | 1 | $338.02 | Available to order | 1 |
| 25 | T3880810 Kit, Drive Chain, DID | Kit, Drive Chain, DID 16922 > | 1 | $123.75 | Available to order | 1 |
| 26 | T3880071 Battery Charger, 230V | Battery Charger, 230V All Except CA, US & JP - Also Requires Power Cord Item 27 | 1 | $1338.06 | Backorder — Late August 2026 | 1 |
| 26 | T3880072 Battery Charger, 115V | Battery Charger, 115V CA & US Only - Also Requires Power Cord Item 27 | 1 | $1155.48 | Available to order | 1 |
| 26 | T3880073 Battery Charger, 100V | Battery Charger, 100V JP Only - Also Requires Power Cord Item 27 | 1 | $1155.48 | Backorder — Late August 2026 | 1 |
| 27 | T3880114 Power Cord, UK 3 Pin | Power Cord, UK 3 Pin UK Only - Not Illustrated | 1 | $28.42 | Out of Stock | Notify Me |
| 27 | T3880115 Power Cord, USA/Canada | Power Cord, USA/Canada CA, US, JP & TH Only - Not Illustrated | 1 | $42.64 | Available to order | 1 |
| 27 | T3880116 Power Cord, Rest of Europe | Power Cord, Rest of Europe All Except UK, CA, US, JP, TH, AU, NZ & CN - Not Illustrated | 1 | $17.79 | Out of Stock | Notify Me |
| 27 | T3880187 Power Cord, AU/NZ | Power Cord, AU/NZ AU, NZ & CN - Not Illustrated | 1 | $47.38 | Out of Stock | Notify Me |
| 28 | T3880110 Dealer tool kit | Dealer tool kit Not illustrated | 1 | $8381.63 | Available to order | 1 |
