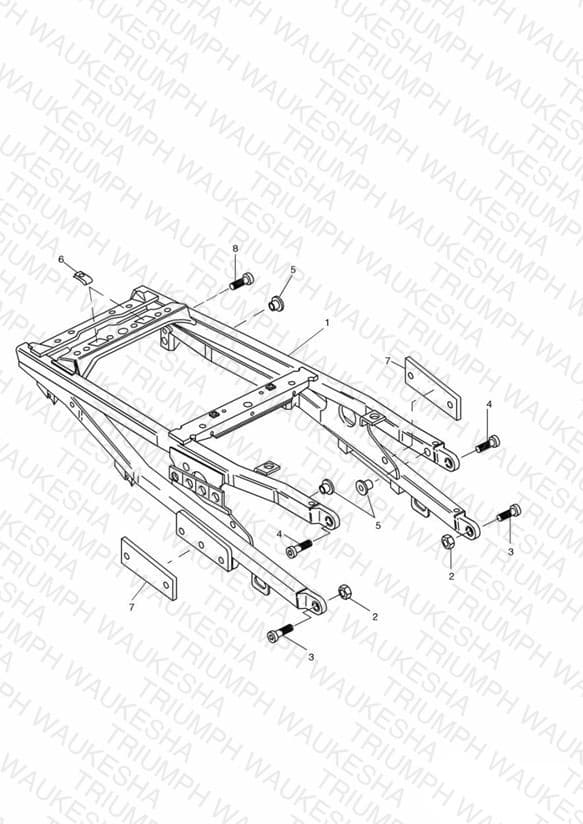

Rear Sub-Frame and Fittings
Parts (8)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2072872 Subframe | Subframe | 1 | $638.57 | Obsolete | View Details |
| 2 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 2 | $4.43 | Available to order | 2 |
| 3 | T3331921 Screw, Tx, Flgd, M10 x 47, Slv | Screw, Tx, Flgd, M10 x 47, Slv | 2 | $5.35 | Obsolete | View Details |
| 4 | T3050097 Capscrew | Capscrew M10 x 27mm | 2 | $5.19 | Obsolete | View Details |
| 5 | T3350210 Threaded Insert, M6, Open Ended | Threaded Insert, M6, Open Ended | 3 | $1.73 | Available to order | 3 |
| 6 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 2 | $1.91 | Available to order | 2 |
| 7 | T2070968 Plate | Plate | 2 | $12.52 | Obsolete | View Details |
| 8 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 1 | $1.73 | Available to order | 1 |
