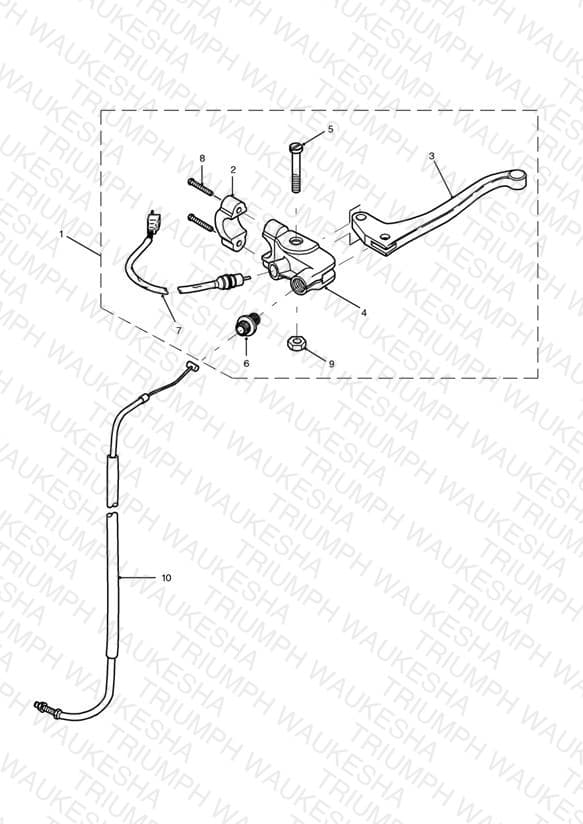

Control Cables
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046503 Lever assembly | Lever assembly » 91864 | 1 | $41.85 | Obsolete | View Details |
| 1 | T2046507 Lever assembly | Lever assembly 91865 » » 110020 | 1 | $95.68 | Obsolete | View Details |
| 2 | T2046510 Clamp, Clutch lever bracket | Clamp, Clutch lever bracket | 1 | $16.04 | Available to order | 1 |
| 3 | T2046500 Clutch lever | Clutch lever » 91864 - * PART NO LONGER AVAILABLE * | 1 | $56.82 | Obsolete | View Details |
| 3 | T2046508 Clutch lever | Clutch lever GEARBOX NO 91865 » | 1 | $61.32 | Available to order | 1 |
| 4 | T2046505 Bracket | Bracket | 1 | $33.62 | Obsolete | View Details |
| 5 | T2046515 Bolt, Clutch Pivot | Bolt, Clutch Pivot PART NO LONGER AVAILABLE | 1 | $2.85 | Obsolete | View Details |
| 6 | T2046520 Adjuster Screw | Adjuster Screw | 1 | $8.53 | Available to order | 1 |
| 7 | T2505005 Switch assembly | Switch assembly Clutch | 1 | $21.13 | Backorder — Early August 2026 | 1 |
| 8 | T2046522 Bolt, Handlebar Clamp | Bolt, Handlebar Clamp | 2 | $2.00 | Available to order | 2 |
| 9 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt | 1 | $1.21 | Available to order | 1 |
| 10 | T2040464 Clutch cable | Clutch cable | 1 | $57.42 | Available to order | 1 |
