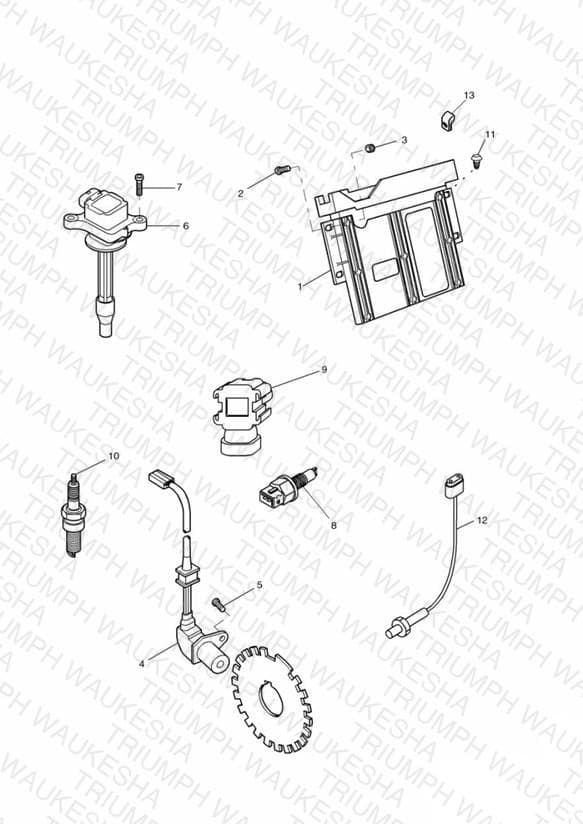

Engine Management System » 89736
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1290600 Electronic Control Module | Electronic Control Module | 1 | $1452.78 | Obsolete | View Details |
| 2 | T3330706 Bolt, Rhhf, Lightened, M6 X 18 | Bolt, Rhhf, Lightened, M6 X 18 M6 x 18mm | 1 | $1.69 | Obsolete | View Details |
| 3 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 4 | T1290036 Sensor | Sensor Crankshaft | 1 | $155.89 | Available to order | 1 |
| 5 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 6 | T1290006 Ignition coil | Ignition coil | 3 | $154.17 | Obsolete | View Details |
| 7 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 6 | $0.97 | Available to order | 6 |
| 8 | T1297000 Sensor, Air Temperature | Sensor, Air Temperature Air temperature | 1 | $57.48 | Available to order | 1 |
| 9 | T1290505 Sensor | Sensor Barometric pressure | 1 | $53.29 | Obsolete | View Details |
| 10 | T1290024 Spark Plug, DPR8EA-9 | Spark Plug, DPR8EA-9 NGK DPR 8 EA-9 | 3 | $7.34 | Available to order | 3 |
| 11 | T3450266 Fir Tree Plug, Blk, 19mm long | Fir Tree Plug, Blk, 19mm long PART NO LONGER AVAILABLE | 3 | $1.18 | Obsolete | View Details |
| 12 | T2201344 Sensor oxygen | Sensor oxygen DE | 1 | $190.59 | Obsolete | View Details |
| 13 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 1 | $4.92 | Backorder — Early August 2026 | 1 |
