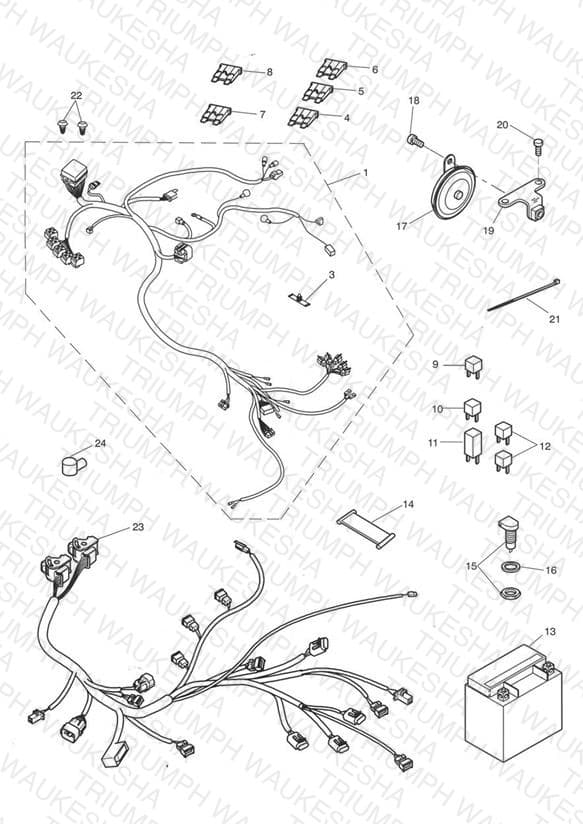

Electrical Equipment 89737 »
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2500540 Main harness | Main harness | 1 | $592.03 | Obsolete | View Details |
| 3 | T2501160 Clip, Harness, Firtree | Clip, Harness, Firtree | 2 | $2.71 | Out of Stock | Notify Me |
| 4 | T2500812 Fuse, 5A | Fuse, 5A PART NO LONGER AVAILABLE | — | $1.41 | Obsolete | View Details |
| 5 | 2500810-T0301 Fuse 10 amp | Fuse 10 amp | — | $1.21 | Available to order | 1 |
| 6 | 2500807-T0301 Fuse 15 amp | Fuse 15 amp ** PART NO LONGER AVAILABLE ** | — | $1.45 | Obsolete | View Details |
| 7 | T2500805 Fuse, 30A | Fuse, 30A | — | $1.50 | Available to order | 1 |
| 8 | T2505035 Fuse 40 amp | Fuse 40 amp | — | $1.21 | Available to order | 1 |
| 9 | T2508033 Relay, EFI | Relay, EFI ECM main power relays | 1 | $38.93 | Available to order | 1 |
| 10 | T2501705 Relay, Changeover | Relay, Changeover Changeover Headlight Cut-out | 1 | $21.04 | Available to order | 1 |
| 11 | T2500531 Relay, Indicator, 2 (4) x 10W | Relay, Indicator, 2 (4) x 10W Indicator | 1 | $95.18 | Available to order | 1 |
| 13 | T2506721 Kit, Battery, YTX14-BS | Kit, Battery, YTX14-BS EF/ER/GR Markets Only | 1 | $136.98 | Out of Stock | Notify Me |
| 13 | T2500182 Battery | Battery All Markets Except EF/ER/GR | 1 | $119.50 | Available to order | 1 |
| 13 | T2502513 Battery Multipack (10) | Battery Multipack (10) (10 x T2500182) | 1 | $1141.21 | Out of Stock | Notify Me |
| 14 | T2501740 Battery Strap | Battery Strap | 1 | $10.61 | Available to order | 1 |
| 15 | T2505075 Socket, Auxillary Power | Socket, Auxillary Power | 1 | $58.76 | Available to order | 1 |
| 16 | T3550211 Washer, Plastic, M18 | Washer, Plastic, M18 | 1 | $3.54 | Available to order | 1 |
| 17 | T2500113 Horn Assembly, Hi Tone | Horn Assembly, Hi Tone | 1 | $41.82 | Available to order | 1 |
| 18 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 1 | $1.84 | Available to order | 1 |
| 19 | T2500112 Bracket | Bracket | 1 | $6.98 | Obsolete | View Details |
| 20 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 2 | $1.04 | Available to order | 2 |
| 21 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 9 | $0.95 | Available to order | 9 |
| 22 | T3450255 Plug, Retainer, Plastic | Plug, Retainer, Plastic | 2 | $1.50 | Backorder — Early October 2026 | 2 |
| 23 | T2500940 Engine harness | Engine harness | 1 | $415.80 | Obsolete | View Details |
| 24 | T2500254 Boot | Boot Brake Light Switch | 1 | $2.91 | Available to order | 1 |
