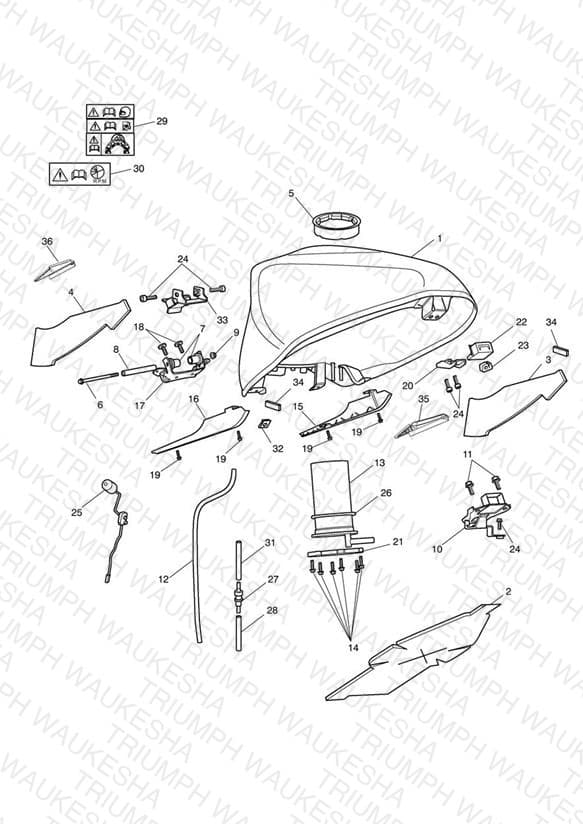

Fuel Tank & Fittings - 340148> (Non ABS) 340227> (ABS Version)
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2401351-JI Fuel Tank Assy | Fuel Tank Assy Pacific Blue; Includes insulation, items 2, 3 & 4 and item 34 | 1 | $1794.05 | Obsolete | View Details |
| 1 | T2401351-CM Fuel Tank Assy | Fuel Tank Assy Tornado Red > 363102; Includes insulation, items 2, 3 & 4 and item 34 | 1 | $1794.05 | Obsolete | View Details |
| 1 | T2401351-LC Fuel Tank Assy | Fuel Tank Assy Graphite; Includes insulation, items 2, 3 & 4 and item 34 | 1 | $1794.05 | Obsolete | View Details |
| 1 | T2401351-PR Fuel Tank Assy | Fuel Tank Assy Phantom Black 363103 > 440388; Includes insulation, items 2, 3 & 4 and item 34 | 1 | $1794.05 | Backorder — Mid October 2026 | 1 |
| 1 | T2401902-PR Fuel Tank Assy | Fuel Tank Assy Phantom Black 440389 > ; Includes insulation, items 2, 3 & 4 and items 34, 35 & 36 | 1 | $1794.05 | Obsolete | View Details |
| 1 | T2401902-CM Fuel Tank Assy | Fuel Tank Assy Tornado Red 440389 > ; Includes insulation, items 2, 3 & 4 and items 34, 35 & 36 | 1 | $1794.05 | Out of Stock | Notify Me |
| 1 | T2401902-JD Fuel Tank Assy | Fuel Tank Assy Caspian Blue 473836 > ; Includes insulation, items 2, 3 & 4 and items 34, 35 & 36 | 1 | $871.42 | Obsolete | View Details |
| 1 | T2401902-HA Fuel Tank Assy | Fuel Tank Assy British Racing Green; 473836 > ; Includes insulation, items 2, 3 & 4 and items 34, 35 & 36 | 1 | $1794.05 | Obsolete | View Details |
| 2 | T2401355 Insulation, Fuel Tank, Centre | Insulation, Fuel Tank, Centre | 1 | $27.87 | Backorder — Mid October 2026 | 1 |
| 3 | T2401356 Insulation, Fuel Tank, Left | Insulation, Fuel Tank, Left | 1 | $18.66 | Available to order | 1 |
| 4 | T2401357 Insulation, Fuel Tank, Right | Insulation, Fuel Tank, Right | 1 | $18.66 | Backorder — Mid October 2026 | 1 |
| 5 | T2405034 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $9.00 | Available to order | 1 |
| 6 | T3205079 Bolt, HHF, Lghtd, M6 x 105, Slv | Bolt, HHF, Lghtd, M6 x 105, Slv | 1 | $3.73 | Available to order | 1 |
| 7 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.45 | Out of Stock | Notify Me |
| 8 | T3330588 Compression Limiter, Rod | Compression Limiter, Rod | 1 | $8.21 | Available to order | 1 |
| 9 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.71 | Available to order | 1 |
| 10 | T2400486 Bracket, Fuel Tank Mounting | Bracket, Fuel Tank Mounting | 1 | $19.10 | Out of Stock | Notify Me |
| 11 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 2 | $1.73 | Available to order | 2 |
| 12 | T3620221 Pipe, Fuel Tank Overflow | Pipe, Fuel Tank Overflow | 1 | $2.14 | Available to order | 1 |
| 13 | T2403893 Fuel Pump | Fuel Pump | 1 | $525.79 | Available to order | 1 |
| 14 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.65 | Available to order | 6 |
| 15 | T2301665 MOULDING,INFILL,LH | MOULDING,INFILL,LH > 440388 | 1 | $20.91 | Obsolete | View Details |
| 16 | T2301655 MOULDING,INFILL,RH | MOULDING,INFILL,RH > 440388 | 1 | $20.91 | Obsolete | View Details |
| 17 | T2401348 Bracket, Fuel Tank, Rear | Bracket, Fuel Tank, Rear | 1 | $10.19 | Out of Stock | Notify Me |
| 18 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.61 | Available to order | 2 |
| 19 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 > 440388 | 4 | $3.45 | Available to order | 4 |
| 20 | T2401341 Pressing, Location, Front | Pressing, Location, Front | 1 | $8.79 | Backorder — Mid October 2026 | 1 |
| 21 | T2401250 Location Plate, Fuel Pump | Location Plate, Fuel Pump | 1 | $37.09 | Backorder — Mid October 2026 | 1 |
| 22 | T2400488 Rubber, Tank Mounting | Rubber, Tank Mounting | 1 | $4.38 | Available to order | 1 |
| 23 | T2400641 Pad, Rubber | Pad, Rubber > 440388 | 2 | $2.91 | Available to order | 2 |
| 24 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 5 | $3.73 | Available to order | 5 |
| 25 | T2401326 Level Sender | Level Sender | 1 | $139.14 | Out of Stock | Notify Me |
| 26 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.91 | Available to order | 1 |
| 27 | T2405042 Roll Over Valve | Roll Over Valve Not US Cal or HK; for US Cal & HK see evap section | 1 | $40.38 | Available to order | 1 |
| 28 | T3620111 Hose, Fuel, Formed | Hose, Fuel, Formed Not US Cal or HK; for US Cal & HK see evap section | — | $14.21 | Obsolete | View Details |
| 29 | T3900132 Label, Fuel Tank, Faired, White | Label, Fuel Tank, Faired, White | 1 | $6.06 | Backorder — Mid October 2026 | 1 |
| 30 | T3900154 Label, Running In, White Text | Label, Running In, White Text | 1 | $3.04 | Available to order | 1 |
| 31 | T3620098 Pipe, Hose, 5 x 8 x 35 | Pipe, Hose, 5 x 8 x 35 > 440388 | 1 | $15.95 | Available to order | 1 |
| 31 | T3620099 Hose, breather, Formed | Hose, breather, Formed 440389 > | 1 | $11.55 | Obsolete | View Details |
| 32 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 4 | $4.65 | Available to order | 4 |
| 33 | T2401349 Bracket, Seat Location | Bracket, Seat Location | 1 | $10.19 | Available to order | 1 |
| 34 | T2301948 Anti Abrasion Strip | Anti Abrasion Strip > 440388 | 2 | $7.28 | Available to order | 2 |
| 35 | T2301953 Infill Panel, Fuel Tank, LH | Infill Panel, Fuel Tank, LH 440389 > | 1 | $19.02 | Out of Stock | Notify Me |
| 36 | T2301954 Infill Panel, Fuel Tank, RH | Infill Panel, Fuel Tank, RH 440389 > | 1 | $19.02 | Backorder — Early October 2026 | 1 |
