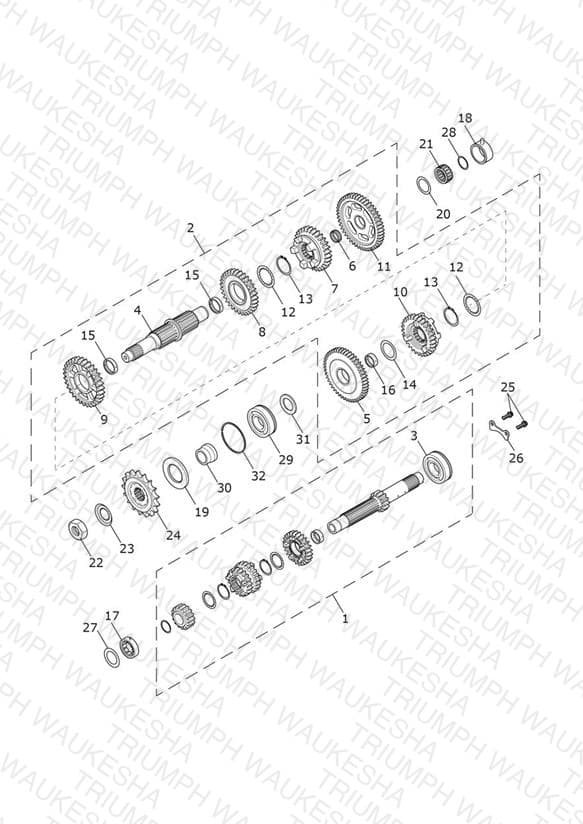

Transmission
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1187105 Gearbox Assembly, Input, 5 Speed | Gearbox Assembly, Input, 5 Speed | 1 | $1056.22 | Available to order | 1 |
| 2 | T1187205 Gearbox Assembly, Output, 5 Speed | Gearbox Assembly, Output, 5 Speed | 1 | $1320.28 | Available to order | 1 |
| 3 | T3800444 Bearing, Ball, 25 x 62 x 17 | Bearing, Ball, 25 x 62 x 17 | 1 | $45.80 | Available to order | 1 |
| 4 | T1187023 Output Shaft, 5 Speed, Chain | Output Shaft, 5 Speed, Chain | 1 | $279.90 | Out of Stock | Notify Me |
| 5 | T1187012 Ouput Gear, 2nd, 45T | Ouput Gear, 2nd, 45T | 1 | $122.28 | Out of Stock | Notify Me |
| 6 | T3800101 Bearing, Needle | Bearing, Needle | 1 | $18.85 | Available to order | 1 |
| 7 | T1187015 Output Gear, 5th, 35T | Output Gear, 5th, 35T | 1 | $81.52 | Out of Stock | Notify Me |
| 8 | T1187014 Output Gear, 4th, 37T | Output Gear, 4th, 37T | 1 | $89.05 | Out of Stock | Notify Me |
| 9 | T1187013 Output Gear, 3rd, 37T | Output Gear, 3rd, 37T | 1 | $105.09 | Unavailable | View Details |
| 10 | T1187003 Shift Ring, 2nd/3rd Gear | Shift Ring, 2nd/3rd Gear | 1 | $174.91 | Available to order | 1 |
| 11 | T1187011 Output Gear, 1st, 49T | Output Gear, 1st, 49T | 1 | $122.28 | Backorder — Late August 2026 | 1 |
| 12 | T1184040 Thrust Washer, 35.5 x 43 x 1.5 | Thrust Washer, 35.5 x 43 x 1.5 | 2 | $3.24 | Available to order | 2 |
| 13 | T3501000 Circlip, ID 32.2 | Circlip, ID 32.2 | 2 | $6.06 | Unavailable | View Details |
| 14 | T1188128 Thrust Washer, 30.5 x 40 x 1.5 | Thrust Washer, 30.5 x 40 x 1.5 | 1 | $2.92 | Unavailable | View Details |
| 15 | T1187803 Plain Bush, Output, 3rd | Plain Bush, Output, 3rd | 2 | $38.99 | Unavailable | View Details |
| 16 | T1187802 Plain Bush, Output, 2nd | Plain Bush, Output, 2nd | 1 | $38.99 | Unavailable | View Details |
| 17 | T3802206 Bearing, Cyl Roll 22, 1 x 40 x 12 | Bearing, Cyl Roll 22, 1 x 40 x 12 | 1 | $58.92 | Available to order | 1 |
| 18 | T1180156 Sleeve Assy, Needle bearing | Sleeve Assy, Needle bearing | 1 | $63.70 | Available to order | 1 |
| 19 | T3600113 Seal, Oil 35 x 62 x 5 | Seal, Oil 35 x 62 x 5 | 1 | $24.60 | Available to order | 1 |
| 20 | T3555016 Thrust Washer, 25 x 35 x 1.0 | Thrust Washer, 25 x 35 x 1.0 | 1 | $4.92 | Available to order | 1 |
| 21 | T3800159 Bearing, Needle, K25 x 32 x 16 V5 | Bearing, Needle, K25 x 32 x 16 V5 | 1 | $17.77 | Available to order | 1 |
| 22 | T1180175 Nut, Gearbox Sprocket | Nut, Gearbox Sprocket | 1 | $5.56 | Available to order | 1 |
| 23 | T1186601 Tab Washer, Sprocket | Tab Washer, Sprocket | 1 | $27.87 | Available to order | 1 |
| 24 | T1189970 Sprocket, Front, 17T, 520 | Sprocket, Front, 17T, 520 | 1 | $37.51 | Available to order | 1 |
| 25 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 2 | $0.57 | Available to order | 2 |
| 26 | T1189876 Bearing Retainer Plate | Bearing Retainer Plate | 1 | $19.13 | Available to order | 1 |
| 27 | T1183333 Restrictor Washer, Gearbox | Restrictor Washer, Gearbox | 1 | $8.12 | Available to order | 1 |
| 28 | T3500201 Circlip, EXT, 23.5 x 1.2 | Circlip, EXT, 23.5 x 1.2 | 1 | $4.36 | Available to order | 1 |
| 29 | T3800555 Bearing, Ball, 25 x 62 x 17 | Bearing, Ball, 25 x 62 x 17 | 1 | $199.57 | Available to order | 1 |
| 30 | T1187040 Spacer, Sprocket, Width 18.01 | Spacer, Sprocket, Width 18.01 | 1 | $13.67 | Available to order | 1 |
| 31 | T1187606 Thrust Washer | Thrust Washer | 1 | $8.65 | Available to order | 1 |
| 32 | T3800189 Snap Ring | Snap Ring | 1 | $3.59 | Available to order | 1 |
