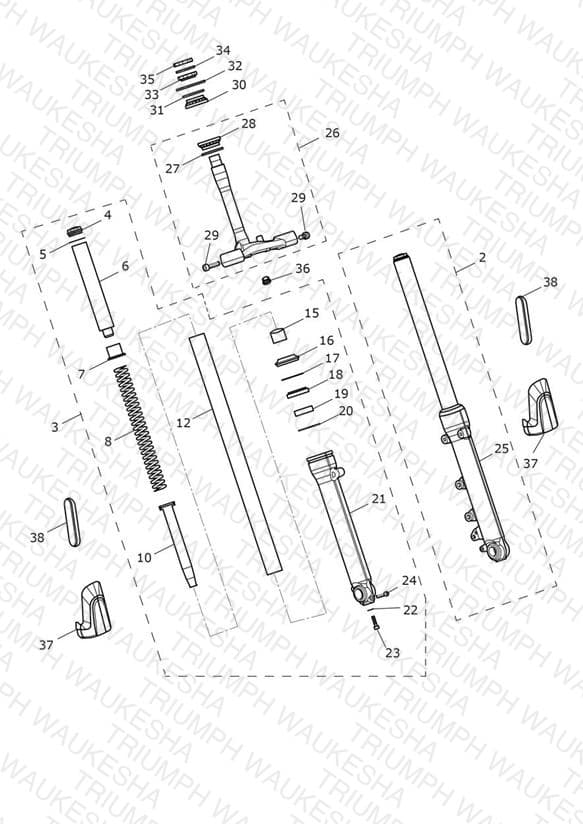

Front Forks & Lower Yoke
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | T2042544 Stanchion Assembly, LH | Stanchion Assembly, LH | 1 | $1188.28 | Available to order | 1 |
| 3 | T2042545 Stanchion Assembly, RH | Stanchion Assembly, RH | 1 | $1188.28 | Available to order | 1 |
| 4 | T2041156 Fork Cap | Fork Cap | 2 | $81.75 | Available to order | 2 |
| 5 | T2047113 O Ring, Fork Seal | O Ring, Fork Seal | 2 | $2.74 | Available to order | 2 |
| 6 | T2041673 Spacer | Spacer | 2 | $11.71 | Available to order | 2 |
| 7 | T2047141 Washer | Washer | 2 | $1.27 | Available to order | 2 |
| 8 | T2043709 Spring, Front Fork, Main | Spring, Front Fork, Main | 2 | $96.97 | Available to order | 2 |
| 10 | T2046071 Piston, Damper | Piston, Damper | 2 | $131.17 | Out of Stock | Notify Me |
| 12 | T2042704 Fork Tube Inner | Fork Tube Inner | 2 | $299.25 | Backorder — Early August 2026 | 2 |
| 15 | T2045311 Oil Lock | Oil Lock | 2 | $39.44 | Available to order | 2 |
| 16 | T2047109 Dust Seal, Fork | Dust Seal, Fork | 2 | $18.30 | Backorder — Late August 2026 | 2 |
| 17 | T2040248 Snap Ring | Snap Ring | 2 | $6.73 | Available to order | 2 |
| 18 | T2044161 Oil Seal | Oil Seal | 2 | $24.04 | Available to order | 2 |
| 19 | T2047106 Guide, Bushing | Guide, Bushing | 2 | $13.51 | Available to order | 2 |
| 20 | T2047107 Ring, Back Up | Ring, Back Up | 2 | $4.36 | Backorder — Late August 2026 | 2 |
| 21 | T2041702 Casting, Fork, RH | Casting, Fork, RH | 1 | $545.70 | Available to order | 1 |
| 22 | T2045045 Washer, Sealing B | Washer, Sealing B | 2 | $1.13 | Available to order | 2 |
| 23 | T2045046 Capscrew, Oil Lock | Capscrew, Oil Lock | 2 | $10.63 | Available to order | 2 |
| 24 | T3050133 Capscrew | Capscrew | 1 | $4.55 | Backorder — Early October 2026 | 1 |
| 25 | T2045253 Casting, Fork, LH | Casting, Fork, LH | 1 | $545.70 | Available to order | 1 |
| 26 | T2042318 Kit, Lower Yoke Assy | Kit, Lower Yoke Assy > 837499 All Expt BR & > 841082 BR Only | 1 | $501.70 | Available to order | 1 |
| 26 | T2041556 Lower Yoke Assembly | Lower Yoke Assembly 837467 > All Expt BR & 841083 > BR Only | 1 | $492.91 | Backorder — Late August 2026 | 1 |
| 27 | T3600063 Seal, Dust, Dia 55 | Seal, Dust, Dia 55 | 1 | $8.34 | Available to order | 1 |
| 28 | T3800052 Bearing, Sac, 55 x 30 x 17 | Bearing, Sac, 55 x 30 x 17 | 1 | $33.95 | Available to order | 1 |
| 29 | T2048899 Capscrew, M10 x 30, SS, Enc | Capscrew, M10 x 30, SS, Enc | 2 | $8.09 | Available to order | 2 |
| 30 | T3800091 Bearing, Sac | Bearing, Sac | 1 | $33.95 | Available to order | 1 |
| 31 | T3600234 Dust Seal, Dia 55 | Dust Seal, Dia 55 | 1 | $8.34 | Available to order | 1 |
| 32 | T2042138 Cover, Headstock Bearing | Cover, Headstock Bearing | 1 | $10.90 | Available to order | 1 |
| 33 | T2040301 Adjuster Nut, M30, Lower | Adjuster Nut, M30, Lower | 1 | $28.50 | Available to order | 1 |
| 34 | T2044183 Washer, Headstock | Washer, Headstock | 1 | $8.30 | Available to order | 1 |
| 35 | T2040304 Locknut, M30 | Locknut, M30 | 1 | $20.60 | Available to order | 1 |
| 36 | T3450060 Cap | Cap | 1 | $1.40 | Available to order | 1 |
| 37 | T2044141 Fork Protector | Fork Protector | 2 | $15.72 | Available to order | 2 |
| 38 | T2700332 Reflector, Amber, Oval | Reflector, Amber, Oval All Markets Except BR & TH | 2 | $6.39 | Available to order | 2 |
