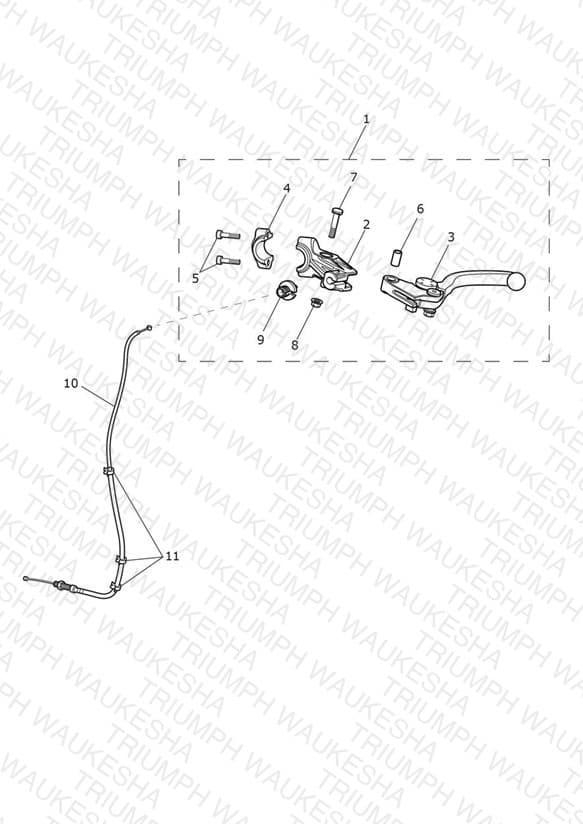

Clutch Controls
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2043111 Lever Assy, Clutch, Adj | Lever Assy, Clutch, Adj | 1 | $115.19 | Available to order | 1 |
| 2 | T2046082 Clutch Lever Bracket | Clutch Lever Bracket | 1 | $38.96 | Available to order | 1 |
| 3 | T2046041 Clutch Lever, Adjustable | Clutch Lever, Adjustable | 1 | $87.92 | Available to order | 1 |
| 4 | T2046510 Clamp, Clutch lever bracket | Clamp, Clutch lever bracket | 1 | $16.04 | Available to order | 1 |
| 5 | T2046522 Bolt, Handlebar Clamp | Bolt, Handlebar Clamp | 1 | $2.00 | Available to order | 1 |
| 6 | T2046526 Collar, Clutch Lever | Collar, Clutch Lever | 1 | $3.29 | Available to order | 1 |
| 7 | T2046524 Pivot Bolt | Pivot Bolt | 1 | $2.63 | Available to order | 1 |
| 8 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt | 1 | $1.21 | Available to order | 1 |
| 9 | T2046520 Adjuster Screw | Adjuster Screw | 1 | $8.53 | Available to order | 1 |
| 10 | T2048890 Cable, Clutch | Cable, Clutch | 1 | $47.53 | Backorder — Late August 2026 | 1 |
| 11 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 3 | $3.24 | Available to order | 3 |
