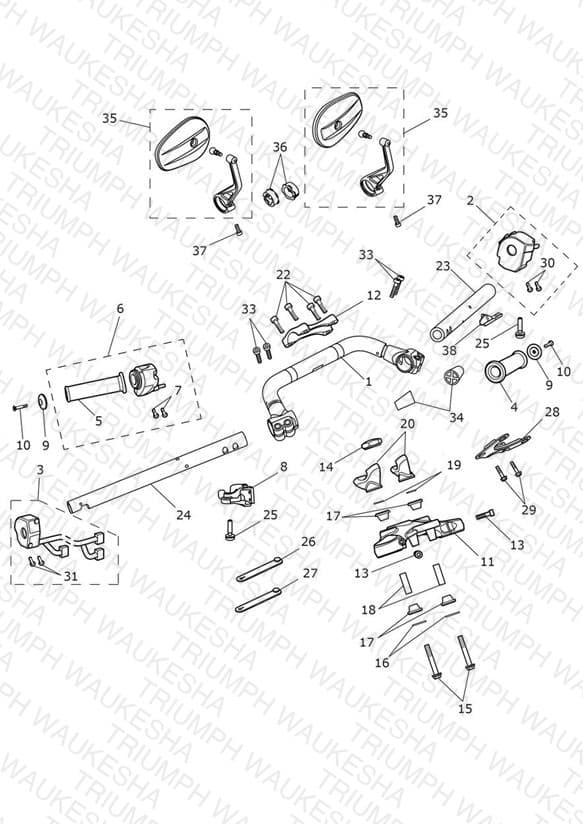

Handlebars, Top Yoke & Mirrors
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2048844 Handlebar, ID 25.4, ACE, Blk | Handlebar, ID 25.4, ACE, Blk | 1 | $197.72 | Available to order | 1 |
| 2 | T2041967 Switchcube, LH, Non-Mode | Switchcube, LH, Non-Mode Clutch Switch Included | 1 | $258.75 | Available to order | 1 |
| 3 | T2048653 Switchcube, RH | Switchcube, RH | 1 | $184.39 | Available to order | 1 |
| 4 | T2041579 Grip, Handlebar, LH | Grip, Handlebar, LH | 1 | $18.16 | Available to order | 1 |
| 5 | T2042119 Grip, APS, RH | Grip, APS, RH | 1 | $52.29 | Available to order | 1 |
| 6 | T2044045 Sensor, APS, Assembly | Sensor, APS, Assembly | 1 | $249.05 | Available to order | 1 |
| 7 | T2041629 Screw, APS Housing | Screw, APS Housing | 2 | $2.17 | Available to order | 2 |
| 8 | T2028043 Bracket, Brake Switch, Front | Bracket, Brake Switch, Front > 876055 | 1 | $12.94 | Available to order | 1 |
| 9 | T2042476 Bar End Finisher | Bar End Finisher | 2 | $22.52 | Available to order | 2 |
| 10 | T3330923 Screw, Csk, M6 x 20, Slv, Enc | Screw, Csk, M6 x 20, Slv, Enc | 2 | $2.37 | Available to order | 2 |
| 11 | T2042144 Upper Yoke, Type C | Upper Yoke, Type C | 1 | $279.90 | Available to order | 1 |
| 12 | T2041762 Clamp, Handlebar Upper, 25.4, Slv | Clamp, Handlebar Upper, 25.4, Slv | 1 | $58.96 | Backorder — Late August 2026 | 1 |
| 13 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 2 | $4.12 | Available to order | 2 |
| 14 | T2042135 Nut, Upper, M25, Domed | Nut, Upper, M25, Domed | 1 | $3.77 | Available to order | 1 |
| 15 | T3205765 Bolt, HHF, M10 x 65, Slv | Bolt, HHF, M10 x 65, Slv | 2 | $4.12 | Available to order | 2 |
| 16 | T3555030 Washer, 10.5 x 30 x 2.5 | Washer, 10.5 x 30 x 2.5 | 2 | $6.65 | Available to order | 2 |
| 17 | T2042136 Rubber Bush, Handlebar Clamp | Rubber Bush, Handlebar Clamp | 4 | $8.25 | Available to order | 4 |
| 18 | T2049488 Sleeve, Dia 13 x 43 | Sleeve, Dia 13 x 43 | 2 | $4.86 | Available to order | 2 |
| 19 | T3550632 Washer, 10.5 x 21 x 2 | Washer, 10.5 x 21 x 2 | 2 | $2.95 | Available to order | 2 |
| 20 | T2042242 Spares Kit, Clamp, Lower, 25.4 | Spares Kit, Clamp, Lower, 25.4 contains LH & RH clamp | 1 | $89.35 | Backorder — Mid August 2026 | 1 |
| 23 | T2046569 Kit, Handlebar Tube, LH | Kit, Handlebar Tube, LH Includes plug | 1 | $188.23 | Available to order | 1 |
| 24 | T2045967 Handlebar Tube, RH, Black | Handlebar Tube, RH, Black | 1 | $186.31 | Available to order | 1 |
| 25 | T3331750 Screw, Tx, M4 x 17.5, Slv | Screw, Tx, M4 x 17.5, Slv | 2 | $4.30 | Out of Stock | Notify Me |
| 26 | T3700212 Band, Rubber | Band, Rubber | 1 | $3.29 | Available to order | 1 |
| 27 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $3.90 | Available to order | 1 |
| 28 | T2041583 Mount, Instruments | Mount, Instruments | 1 | $40.87 | Available to order | 1 |
| 29 | T3331110 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 30 | T3331790 Screw, Pan/Hd, Ph, M5 x 30, Blk | Screw, Pan/Hd, Ph, M5 x 30, Blk | 2 | $0.89 | Available to order | 2 |
| 31 | T3331826 Screw, Pan/Hd, M4 x 20, Blk | Screw, Pan/Hd, M4 x 20, Blk | 2 | $1.13 | Obsolete | View Details |
| 32 | T3050333 Screw, Cap/Hd, M6 x 25, Slv | Screw, Cap/Hd, M6 x 25, Slv | 4 | $7.62 | Available to order | 4 |
| 34 | T3450154 Bung, Tapered, EPDM | Bung, Tapered, EPDM | 2 | $3.77 | Available to order | 2 |
| 35 | T2060314 Mirror, Bar End, Assy | Mirror, Bar End, Assy | 2 | $86.66 | Available to order | 2 |
| 36 | T2060086 Spares Kit, Friction Ring | Spares Kit, Friction Ring BR/IN Only | 1 | $36.96 | Available to order | 1 |
| 36 | T2060499 Friction Ring, 22.2 | Friction Ring, 22.2 All Expt BR/IN 905400 > | 2 | $36.96 | Available to order | 2 |
| 37 | T3050159 Capscrew, SKT HD, M6 x 20, SS | Capscrew, SKT HD, M6 x 20, SS | 2 | $5.14 | Available to order | 2 |
| 38 | T2048021 Cover, Plastic | Cover, Plastic > 832749 | 1 | $9.02 | Available to order | 1 |
| 38 | T2045856 Plastic Plug, 22.2 | Plastic Plug, 22.2 832750 > | 1 | $2.25 | Available to order | 1 |
