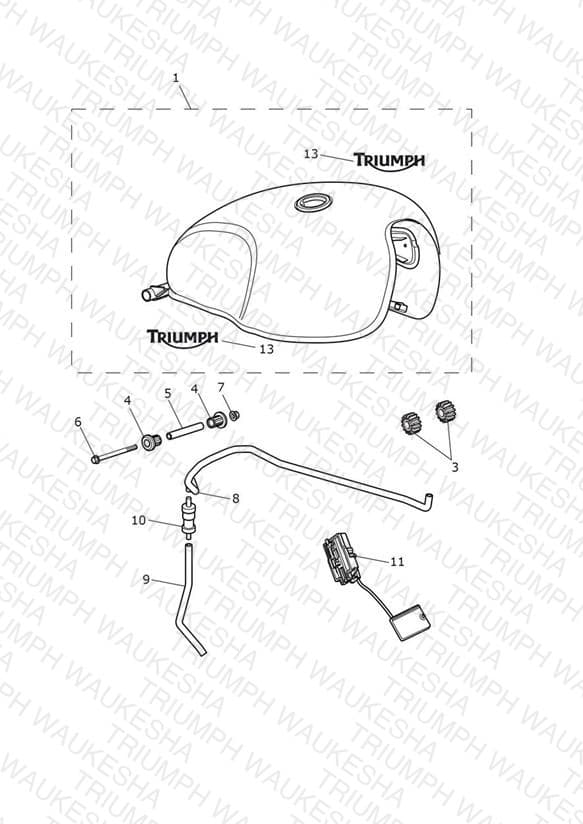

Fuel Tank
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2403289-PG Fuel Tank Assembly | Fuel Tank Assembly Jet Black - Includes Badges, item 13 | 1 | $2587.81 | Available to order | 1 |
| 1 | T2403289-FA Fuel Tank Assembly | Fuel Tank Assembly Racing Yellow - Includes Badges, item 13 | 1 | $2587.81 | Available to order | 1 |
| 3 | T2400854 Tank Mount Bush | Tank Mount Bush | 2 | $2.74 | Available to order | 2 |
| 4 | T2403597 Rubber Bush | Rubber Bush | 2 | $3.50 | Available to order | 2 |
| 5 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 6 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 7 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 8 | T2403036 Formed Hose, Tank to Roll Over | Formed Hose, Tank to Roll Over | 1 | $17.28 | Available to order | 1 |
| 9 | T2403029 Formed Hose, Roll Over Drain | Formed Hose, Roll Over Drain AU, JP, NZ, ZA Only | 1 | $17.88 | Available to order | 1 |
| 10 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 11 | T2403627 Fuel Level Sensor | Fuel Level Sensor | 1 | $241.45 | Available to order | 1 |
| 13 | T2409026 Spares Kit, Tank Badge, 140mm, Chrome | Spares Kit, Tank Badge, 140mm, Chrome | 1 | $107.50 | Available to order | 1 |
