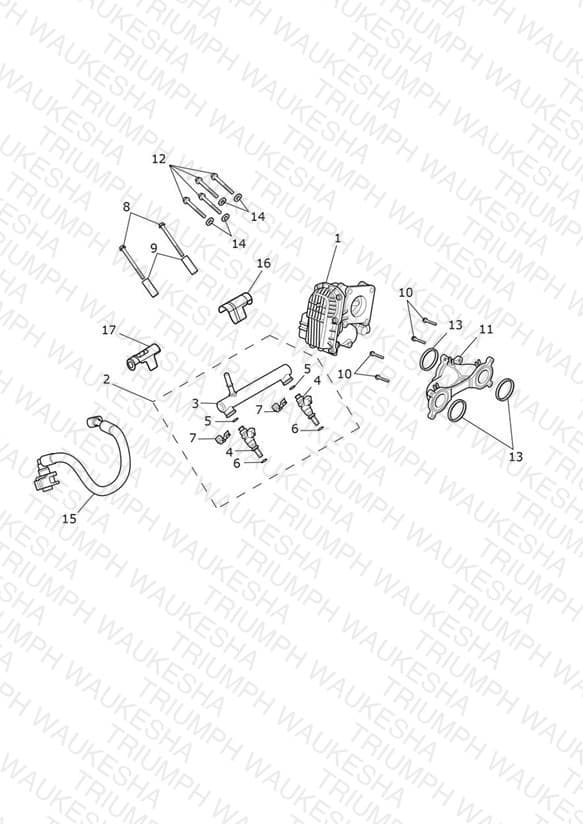

Throttle Bodies
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1243320 Throttle Body Assembly, Single | Throttle Body Assembly, Single | 1 | $466.48 | Available to order | 1 |
| 2 | T1242250 Fuel Rail Assy, Low Flow | Fuel Rail Assy, Low Flow | 1 | $272.39 | Out of Stock | Notify Me |
| 3 | T1242261 Fuel Rail Assy | Fuel Rail Assy | 1 | $243.93 | Out of Stock | Notify Me |
| 4 | T1242240 Injector Assembly, Low Flow | Injector Assembly, Low Flow | 2 | $218.63 | Available to order | 2 |
| 5 | T1241965 O Ring, Injector, Upper | O Ring, Injector, Upper | 2 | $5.42 | Available to order | 2 |
| 6 | T1241966 O Ring, Injector, Lower | O Ring, Injector, Lower | 2 | $5.42 | Available to order | 2 |
| 7 | T1241967 Clip, Injector | Clip, Injector | 2 | $5.78 | Available to order | 2 |
| 8 | T3200195 Bolt, RHHF, M6 x 68, Slv | Bolt, RHHF, M6 x 68, Slv | 2 | $4.36 | Available to order | 2 |
| 9 | T1242786 Spacer, Fuel Rail, Aluminium | Spacer, Fuel Rail, Aluminium | 2 | $5.60 | Available to order | 2 |
| 10 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 4 | $2.63 | Available to order | 4 |
| 11 | T1241333 Kit, Inlet Y-Piece | Kit, Inlet Y-Piece > 783907 | 1 | $228.13 | Backorder — Late August 2026 | 1 |
| 11 | T1241997 Y Piece, Inlet | Y Piece, Inlet 783908 > | 1 | $209.11 | Available to order | 1 |
| 12 | T3205093 Bolt, HHF, Lghtd, M6 x 50, Slv | Bolt, HHF, Lghtd, M6 x 50, Slv | 4 | $6.73 | Available to order | 4 |
| 13 | T1241996 Intake Seal | Intake Seal | 3 | $6.94 | Available to order | 3 |
| 14 | T3550634 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 | 4 | $1.72 | Out of Stock | Notify Me |
| 15 | T1243321 Hose Assy, Fuel Feed, Rubber | Hose Assy, Fuel Feed, Rubber | 1 | $137.88 | Available to order | 1 |
| 16 | T1241955 Cover, Fuel Rail, LH | Cover, Fuel Rail, LH | 1 | $22.52 | Available to order | 1 |
| 17 | T1241956 Cover, Fuel Rail, RH | Cover, Fuel Rail, RH | 1 | $22.52 | Available to order | 1 |
