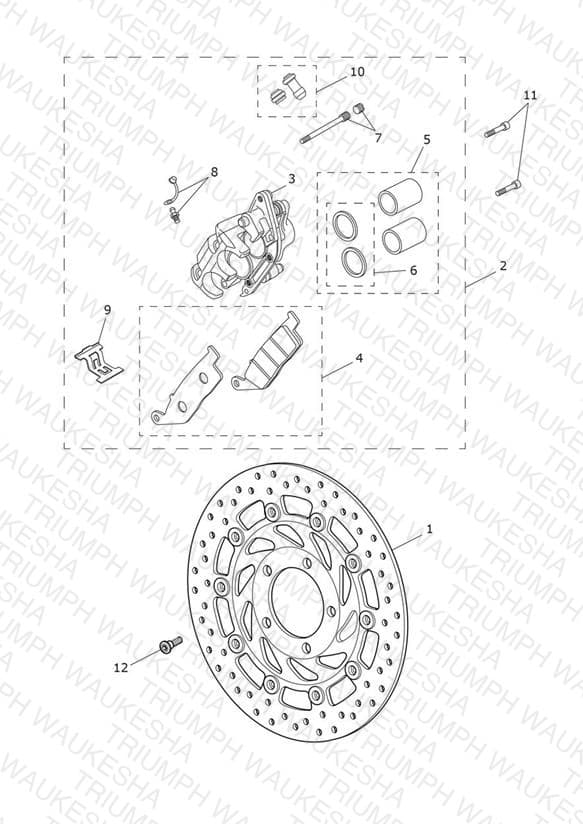

Front Brake Caliper & Disc
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021404 Front Disc, LH | Front Disc, LH | 1 | $258.42 | Available to order | 1 |
| 2 | T2026271 Caliper Assy, LH, Toyo Pads | Caliper Assy, LH, Toyo Pads | 1 | $730.56 | Available to order | 1 |
| 3 | T2025438 Bracket, Caliper, LH | Bracket, Caliper, LH | 1 | $59.87 | Available to order | 1 |
| 4 | T2027535 Brake Pad Set, LH | Brake Pad Set, LH | 1 | $68.07 | Available to order | 1 |
| 5 | T2020050 Piston Set | Piston Set | 1 | $119.76 | Available to order | 1 |
| 6 | T2020505 Seal Kit, 2 Piston Caliper | Seal Kit, 2 Piston Caliper | 1 | $57.03 | Available to order | 1 |
| 7 | T2021151 Pin Set, Hanger | Pin Set, Hanger | 1 | $9.28 | Available to order | 1 |
| 8 | T2020014 Bleed Screw | Bleed Screw | 1 | $15.27 | Available to order | 1 |
| 9 | T2020086 Pad, Spring, D Spec | Pad, Spring, D Spec | 1 | $10.34 | Available to order | 1 |
| 10 | T2021707 Set, Sliding Seals | Set, Sliding Seals | 1 | $44.27 | Available to order | 1 |
| 11 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 2 | $1.21 | Available to order | 2 |
| 12 | T2024801 Bolt, Disc, M8 x 30, Slv, Enc | Bolt, Disc, M8 x 30, Slv, Enc | 5 | $1.90 | Available to order | 5 |
