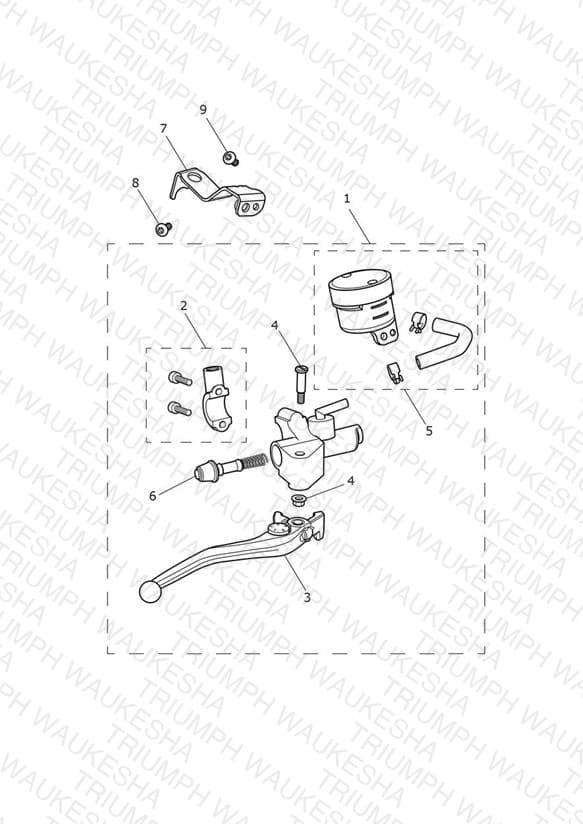

Front Master Cylinder Assy
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021695 Front M/Cyl Assembly | Front M/Cyl Assembly | 1 | $378.49 | Out of Stock | Notify Me |
| 2 | T2025411 Clamp Set | Clamp Set | 1 | $33.93 | Available to order | 1 |
| 3 | T2025441 Lever Assy | Lever Assy | 1 | $87.92 | Available to order | 1 |
| 4 | T2020158 Lever, Bolt, Front M/Cyl | Lever, Bolt, Front M/Cyl | 1 | $13.56 | Available to order | 1 |
| 5 | T2021543 M/Cyl Reservoir Assy, Front | M/Cyl Reservoir Assy, Front | 1 | $46.52 | Available to order | 1 |
| 6 | T2020087 Piston set | Piston set | 1 | $114.08 | Available to order | 1 |
| 7 | T2041794 Bracket, Reservoir | Bracket, Reservoir | 1 | $12.94 | Available to order | 1 |
| 8 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 1 | $0.97 | Available to order | 1 |
| 9 | T3330889 Screw, But/Hd, TX, M10 x 12, Blk | Screw, But/Hd, TX, M10 x 12, Blk | 1 | $0.89 | Available to order | 1 |
