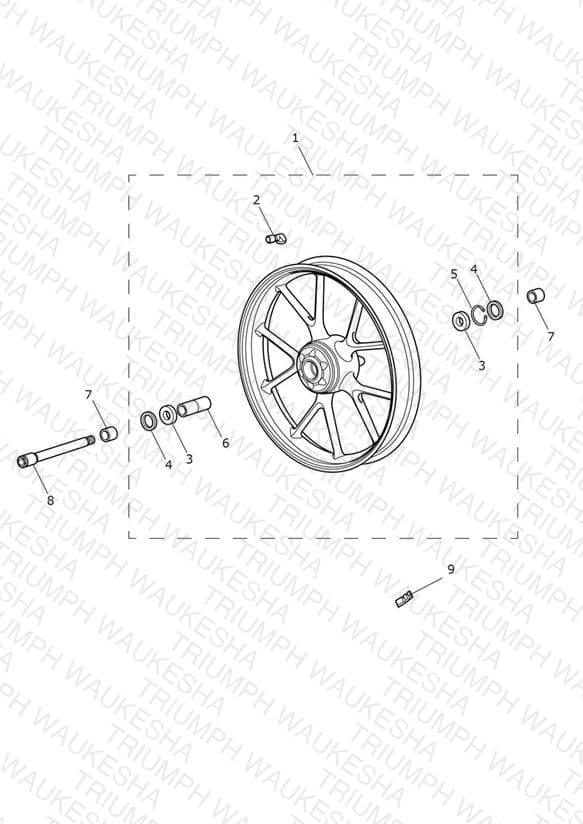

Front Wheel
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2000483 Front Wheel Assembly | Front Wheel Assembly Yellow Stripe | 1 | $968.21 | Out of Stock | Notify Me |
| 1 | T2000430 Front Wheel Assembly | Front Wheel Assembly Gold Stripe | 1 | $959.40 | Available to order | 1 |
| 2 | T2006615 Valve Assy, aluminium, 90, Slv | Valve Assy, aluminium, 90, Slv | 1 | $16.04 | Available to order | 1 |
| 3 | T3800702 Bearing Ball, 20 42 12 | Bearing Ball, 20 42 12 | 2 | $38.50 | Available to order | 2 |
| 4 | T3600703 Oil Seal, 30 42 6 | Oil Seal, 30 42 6 | 2 | $12.38 | Available to order | 2 |
| 5 | T3500401 Circlip, Int Dia 42 | Circlip, Int Dia 42 | 1 | $16.04 | Available to order | 1 |
| 6 | T2004201 Spacer, Wheel, 20 81 | Spacer, Wheel, 20 81 | 1 | $38.99 | Available to order | 1 |
| 7 | T2001422 Spacer, 30 OD, 20.2 ID | Spacer, 30 OD, 20.2 ID | 2 | $7.18 | Available to order | 2 |
| 8 | T2000580 Spindle, Front Wheel | Spindle, Front Wheel | 1 | $75.11 | Available to order | 1 |
| 9 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black | — | $11.01 | Available to order | 1 |
