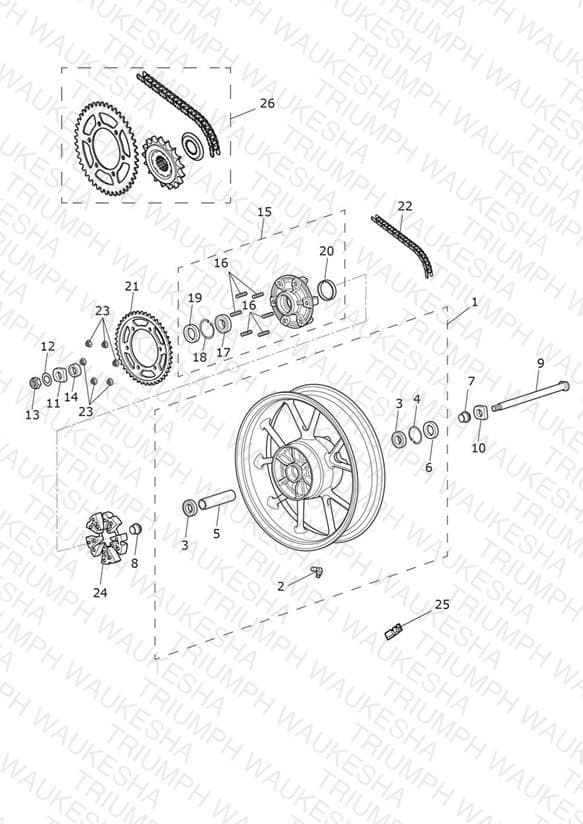

Rear Wheel
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2010549 Wheel Assembly, Rear, 17 x 4.25 | Wheel Assembly, Rear, 17 x 4.25 Yellow Stripe | 1 | $1689.96 | Out of Stock | Notify Me |
| 1 | T2010562 Wheel Assembly, Rear, 17 x 4.25 | Wheel Assembly, Rear, 17 x 4.25 Gold Stripe | 1 | $1100.26 | Out of Stock | Notify Me |
| 2 | T2006615 Valve Assy, aluminium, 90, Slv | Valve Assy, aluminium, 90, Slv | 1 | $16.04 | Available to order | 1 |
| 3 | T3800703 Bearing, Ball, 20 47 14 | Bearing, Ball, 20 47 14 | 2 | $45.80 | Available to order | 2 |
| 4 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 5 | T2003513 Spacer, Wheel, 20 120.7 | Spacer, Wheel, 20 120.7 | 1 | $41.13 | Obsolete | View Details |
| 6 | T3600701 Oil Seal, DC 28 47 7 | Oil Seal, DC 28 47 7 | 1 | $22.52 | Backorder — Late August 2026 | 1 |
| 7 | T2010379 Spacer, Top Hat, 18 Long | Spacer, Top Hat, 18 Long | 1 | $12.38 | Out of Stock | Notify Me |
| 8 | T2010492 Spacer, Stepped | Spacer, Stepped | 1 | $19.37 | Available to order | 1 |
| 9 | T2010382 Rear Wheel Spindle, 283.5mm | Rear Wheel Spindle, 283.5mm | 1 | $73.17 | Available to order | 1 |
| 10 | T2011062 Adjuster, Rear Wheel | Adjuster, Rear Wheel | 1 | $15.27 | Available to order | 1 |
| 11 | T2011052 Adjuster, Rear Wheel | Adjuster, Rear Wheel | 1 | $15.27 | Available to order | 1 |
| 12 | T3555035 Washer, 19 x 34 x 3 | Washer, 19 x 34 x 3 | 1 | $1.27 | Available to order | 1 |
| 13 | T3350118 Locknut, Plain, M18 | Locknut, Plain, M18 | 1 | $11.56 | Available to order | 1 |
| 14 | T2010647 Spacer Tube, 35 x 20 x 12.5 | Spacer Tube, 35 x 20 x 12.5 | 1 | $8.09 | Available to order | 1 |
| 15 | T2010601 Sprocket Carrier Assy, Graphite | Sprocket Carrier Assy, Graphite | 1 | $607.34 | Available to order | 1 |
| 16 | T2012144 Stud, Sprocket Carrier | Stud, Sprocket Carrier | 6 | $7.62 | Available to order | 6 |
| 17 | T3800029 Bearing Ball, 25 52 15 | Bearing Ball, 25 52 15 | 1 | $16.31 | Available to order | 1 |
| 18 | T3500203 Circlip, Int, 52 x 2 | Circlip, Int, 52 x 2 | 1 | $16.04 | Available to order | 1 |
| 19 | T3600073 Oil Seal, 35 52 6 | Oil Seal, 35 52 6 | 1 | $21.86 | Available to order | 1 |
| 20 | T2010630 Bearing, Ring | Bearing, Ring | 1 | $54.20 | Backorder — Mid August 2026 | 1 |
| 21 | T2018890 Sprocket, Rear, 41T, 520 | Sprocket, Rear, 41T, 520 | 1 | $55.63 | Available to order | 1 |
| 22 | T2018899 Chain, Final Drive, 520, 102L | Chain, Final Drive, 520, 102L | 1 | $272.79 | Backorder — Late August 2026 | 1 |
| 22 | T2018877 520 Chain, 102L, Split, Spares | 520 Chain, 102L, Split, Spares | 1 | $195.63 | Available to order | 1 |
| 23 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 6 | $4.16 | Available to order | 6 |
| 24 | T2010314 Rubber, Cush Drive | Rubber, Cush Drive | 1 | $136.88 | Out of Stock | Notify Me |
| 25 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black | — | $11.01 | Available to order | 1 |
| 26 | T2017591 Chain & Sprocket Kit, 102/41/17 | Chain & Sprocket Kit, 102/41/17 | 1 | $274.57 | Available to order | 1 |
