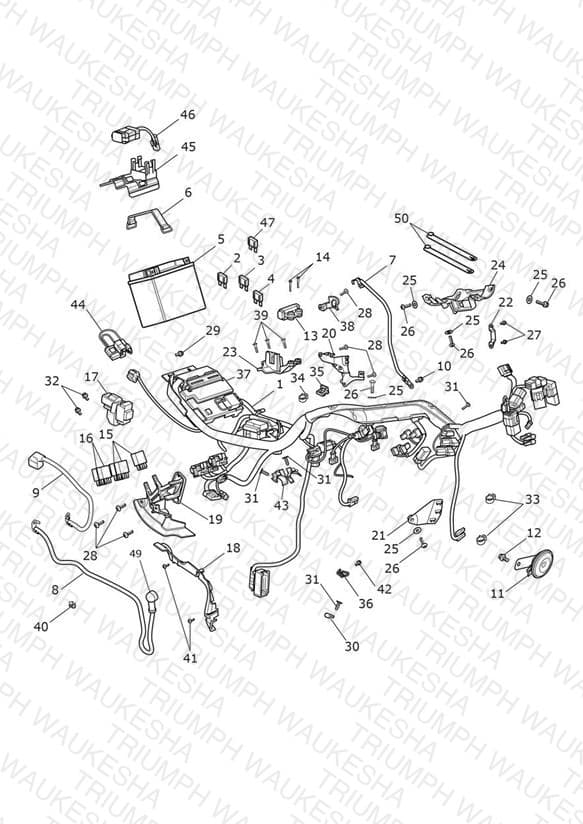

Electrical Equipment
Parts (55)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2502261 Main Harness | Main Harness > 914447 | 1 | $806.86 | Available to order | 1 |
| 1 | T2503412 Harness, Main, ABS | Harness, Main, ABS 914448 > 945922 | 1 | $713.10 | Unavailable | 1 |
| 1 | T2501952 Harness, Main, ABS | Harness, Main, ABS 945923 > All Except CN | 1 | $988.34 | Available to order | 1 |
| 1 | T2505888 Main Harness | Main Harness CN Only | 1 | $628.53 | Obsolete | View Details |
| 2 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 2 | $5.05 | Available to order | 2 |
| 3 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 4 | $5.05 | Available to order | 4 |
| 4 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 1 | $5.05 | Available to order | 1 |
| 5 | T2505581 Battery, 12V, 10AH | Battery, 12V, 10AH All Except EF/ER/GR Markets | 1 | $120.38 | Available to order | 1 |
| 5 | T2506211 Kit, Battery, YTX12-BS | Kit, Battery, YTX12-BS EF/ER/GR Markets Only | 1 | $120.38 | Out of Stock | Notify Me |
| 6 | T2501078 Battery Strap | Battery Strap | 1 | $10.72 | Out of Stock | Notify Me |
| 7 | T2500932 Earth Lead | Earth Lead | 1 | $11.24 | Available to order | 1 |
| 8 | T2500933 Starter Lead | Starter Lead | 1 | $75.58 | Available to order | 1 |
| 9 | T2509984 Battery Lead, Positive | Battery Lead, Positive | 1 | $18.42 | Available to order | 1 |
| 10 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.84 | Available to order | 1 |
| 11 | T2507002 Horn Assy, 440 Hz | Horn Assy, 440 Hz | 1 | $53.23 | Available to order | 1 |
| 12 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.91 | Available to order | 1 |
| 13 | T2502455 Fall Detection Switch | Fall Detection Switch | 1 | $83.02 | Available to order | 1 |
| 14 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 2 | $2.91 | Available to order | 2 |
| 15 | T2507727 Relay, Normally Open | Relay, Normally Open | 4 | $20.87 | Available to order | 4 |
| 16 | T2507728 Relay, Changeover | Relay, Changeover | 2 | $19.19 | Available to order | 2 |
| 17 | T1310120 Starter, Solenoid, Fused | Starter, Solenoid, Fused | 1 | $61.20 | Available to order | 1 |
| 18 | T2501772 Moulding, Starter Cable Guide | Moulding, Starter Cable Guide | 1 | $16.54 | Available to order | 1 |
| 19 | T2501773 Moulding, Bracket, Relays | Moulding, Bracket, Relays | 1 | $23.86 | Available to order | 1 |
| 20 | T2501774 Moulding, Bracket, Roll Over Valve | Moulding, Bracket, Roll Over Valve | 1 | $8.21 | Available to order | 1 |
| 21 | T2501775 Moulding, Bracket, Connectors, Headstock | Moulding, Bracket, Connectors, Headstock | 1 | $10.95 | Available to order | 1 |
| 22 | T2502438 Moulding, Headstock Tidy | Moulding, Headstock Tidy | 1 | $11.21 | Available to order | 1 |
| 23 | T2501439 Moulding, Bracket, Fusebox | Moulding, Bracket, Fusebox | 1 | $19.44 | Available to order | 1 |
| 24 | T1290354 Moulding, Coils Bracket | Moulding, Coils Bracket All Except CN | 1 | $11.84 | Available to order | 1 |
| 24 | T2503720 Moulding, Coils Bracket | Moulding, Coils Bracket CN Only | 1 | $11.84 | Backorder — Mid October 2026 | 1 |
| 25 | T3555025 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 5 | $1.84 | Available to order | 5 |
| 26 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 5 | $5.65 | Available to order | 5 |
| 27 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 2 | $6.04 | Available to order | 2 |
| 28 | T3331260 Screw, Thread Forming, 5 x 20 | Screw, Thread Forming, 5 x 20 | 6 | $11.02 | Available to order | 6 |
| 29 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 1 | $1.04 | Available to order | 1 |
| 30 | T3701094 P Clip, Dia 4.4, Black | P Clip, Dia 4.4, Black | 1 | $3.45 | Out of Stock | Notify Me |
| 31 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 4 | $5.58 | Available to order | 4 |
| 32 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $5.20 | Available to order | 2 |
| 33 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 2 | $3.45 | Available to order | 2 |
| 34 | T2046017 Clip, Cable, Black | Clip, Cable, Black | 1 | $6.06 | Available to order | 1 |
| 35 | T3700216 Clip, Wire, Saddle | Clip, Wire, Saddle | 1 | $4.38 | Available to order | 1 |
| 36 | T2503076 Wire Guide | Wire Guide | 1 | $5.97 | Available to order | 1 |
| 37 | T2501776 Moulding ECM Bracket | Moulding ECM Bracket | 1 | $33.83 | Available to order | 1 |
| 38 | T2501219 Moulding, Bracket, Purge Valve | Moulding, Bracket, Purge Valve | 1 | $18.54 | Available to order | 1 |
| 39 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 3 | $7.18 | Available to order | 3 |
| 40 | T3700061 Clip, Cable Double | Clip, Cable Double | 2 | $5.65 | Available to order | 2 |
| 41 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.73 | Available to order | 2 |
| 42 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 1 | $1.04 | Available to order | 1 |
| 43 | T2501336 Moulding, Cable & Hose Guide | Moulding, Cable & Hose Guide | 1 | $12.75 | Available to order | 1 |
| 44 | T2503436 Auxiliary Fly Lead, Japan | Auxiliary Fly Lead, Japan JP Only | 1 | $26.29 | Available to order | 1 |
| 45 | T2503419 Mount, USB Charger | Mount, USB Charger | 1 | $20.62 | Available to order | 1 |
| 46 | T2501419 USB Charger, 5V | USB Charger, 5V | 1 | $40.59 | Available to order | 1 |
| 47 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 2 | $5.05 | Available to order | 2 |
| 48 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.95 | Available to order | 1 |
| 49 | T2501557 Cover, Starter Lead | Cover, Starter Lead | 1 | $5.77 | Available to order | 1 |
| 50 | T3700252 Rubber Band, 88mm | Rubber Band, 88mm | 2 | $10.21 | Available to order | 2 |
