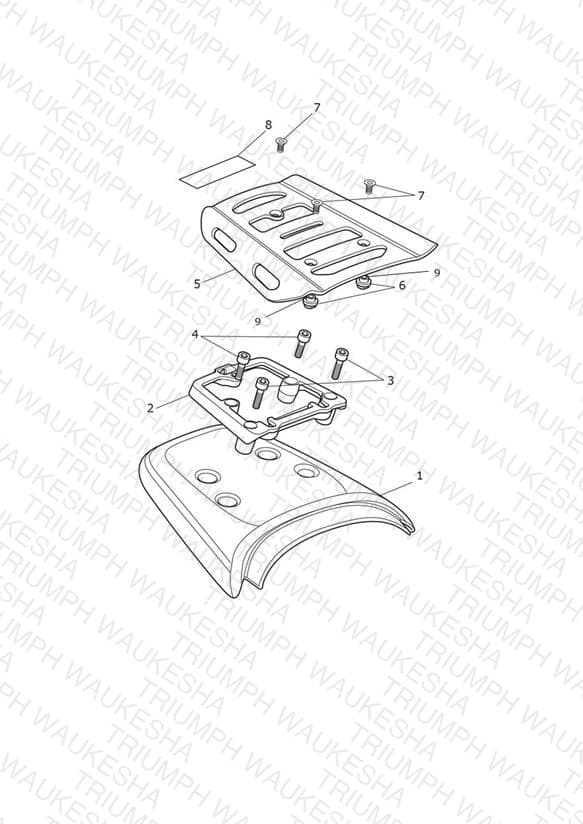

Rear Bodywork
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2309204-PG Frame Cowl, Solo Seat | Frame Cowl, Solo Seat Jet Black | 1 | $378.74 | Backorder — Late August 2026 | 1 |
| 1 | T2309204-PS Frame Cowl, Solo Seat | Frame Cowl, Solo Seat Matt Jet Black | 1 | $378.74 | Backorder — Late August 2026 | 1 |
| 2 | T2309202 Subframe, Luggage Rack | Subframe, Luggage Rack | 1 | $249.05 | Available to order | 1 |
| 3 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 2 | $4.74 | Available to order | 2 |
| 4 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 2 | $4.12 | Available to order | 2 |
| 5 | T2309675 Luggage Rack | Luggage Rack | 1 | $195.81 | Available to order | 1 |
| 6 | T2310073 Bobbin, Luggage Rack | Bobbin, Luggage Rack | 2 | $32.29 | Available to order | 2 |
| 7 | T3330949 Screw, CSK, M6 x 14, Slv | Screw, CSK, M6 x 14, Slv | 3 | $2.37 | Available to order | 3 |
| 8 | T3904075 Max Load Label 3KG | Max Load Label 3KG | 1 | $5.69 | Available to order | 1 |
| 9 | T3600126 O Ring, ID 7.1 x 1.6 | O Ring, ID 7.1 x 1.6 | 2 | $3.04 | Available to order | 2 |
