Street Scrambler

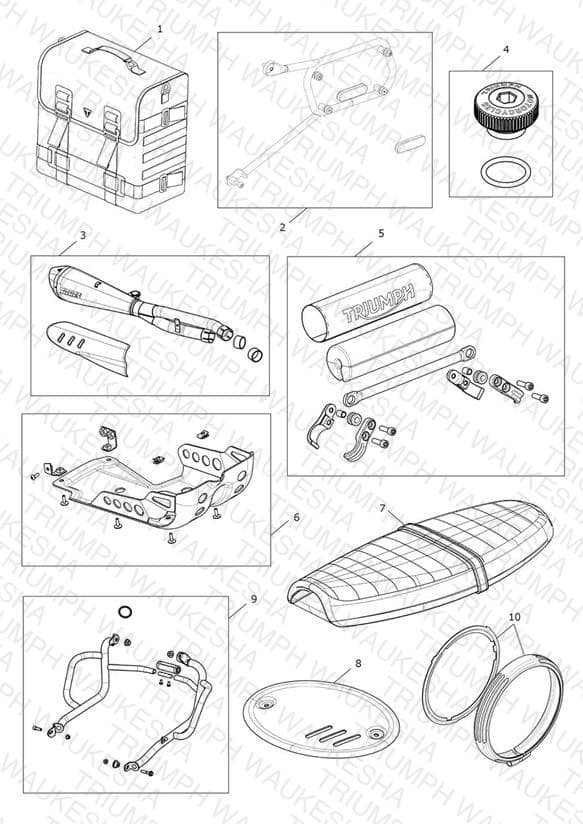

Schematic
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9510433 Rugged Pannier | Rugged Pannier | 1 | $360.00 | Available to order | 1 |
| 2 | A9510490 Mounting Kit, Rugged Pannier, LH | Mounting Kit, Rugged Pannier, LH | 1 | $194.40 | Available to order | 1 |
| 3 | A9600676 Silencer, Hom | Silencer, Hom | 1 | $900.00 | Out of Stock | Notify Me |
| 4 | A9610239 Machined Oil Filler Cap - Black | Machined Oil Filler Cap - Black | 1 | $29.16 | Backorder — Early August 2026 | 1 |
| 5 | A9638142 Brace Kit, Handlebar, Black | Brace Kit, Handlebar, Black | 1 | $102.60 | Available to order | 1 |
| 6 | A9700780 Sump Guard Kit | Sump Guard Kit | 1 | $232.20 | Available to order | 1 |
| 7 | A2304343 Bench Seat - Black | Bench Seat - Black | 1 | $430.00 | Unavailable | View Details |
| 8 | A9708591 Number Board Kit | Number Board Kit | 1 | $37.00 | Obsolete | View Details |
| 9 | A9788025 Dresser Bar Kit, Cage, Black | Dresser Bar Kit, Cage, Black | 1 | $226.80 | Available to order | 1 |
| 10 | A9838244 Grille & Bezel, Headlight | Grille & Bezel, Headlight | 1 | $102.60 | Available to order | 1 |
