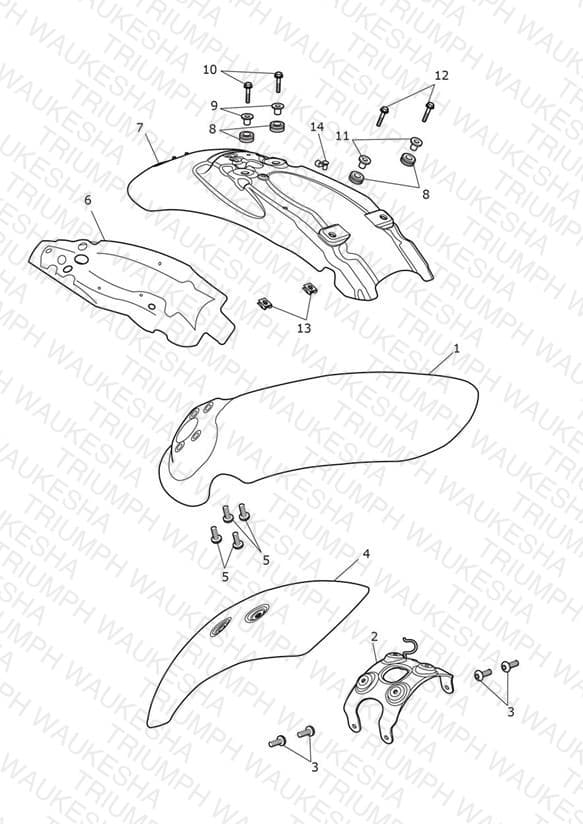

Mudguards - Sandstorm Edition
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T9700777-LZ Front Mudguard | Front Mudguard Storm Grey | 1 | $259.57 | Available to order | 1 |
| 2 | T2308779 Bracket, Front Mudguard | Bracket, Front Mudguard | 1 | $55.85 | Available to order | 1 |
| 3 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 4 | $0.97 | Available to order | 4 |
| 4 | T9700774 Front Mudguard, Low, Moulded | Front Mudguard, Low, Moulded | 1 | $89.37 | Backorder — Late August 2026 | 1 |
| 5 | T3331076 Bolt, But/Hd, M5 x 16, Shld, Enc | Bolt, But/Hd, M5 x 16, Shld, Enc | 4 | $6.94 | Available to order | 4 |
| 6 | T9701322 Mudguard, Plastic, Textured | Mudguard, Plastic, Textured N/A CA Mkt | 1 | $25.59 | Available to order | 1 |
| 7 | T2302372-LZ Rear Mudguard, Matt Storm Grey | Rear Mudguard, Matt Storm Grey Storm Grey - CA Mkt Only | 1 | $336.75 | Available to order | 1 |
| 8 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 9 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 10 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 11 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 12 | T3300069 Screw, Pan/Hd, Tx, M6 x 27, Enc | Screw, Pan/Hd, Tx, M6 x 27, Enc | 2 | $1.82 | Available to order | 2 |
| 13 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 2 | $1.79 | Available to order | 2 |
| 14 | T3700091 Clip Cable | Clip Cable | 1 | $1.13 | Available to order | 1 |
