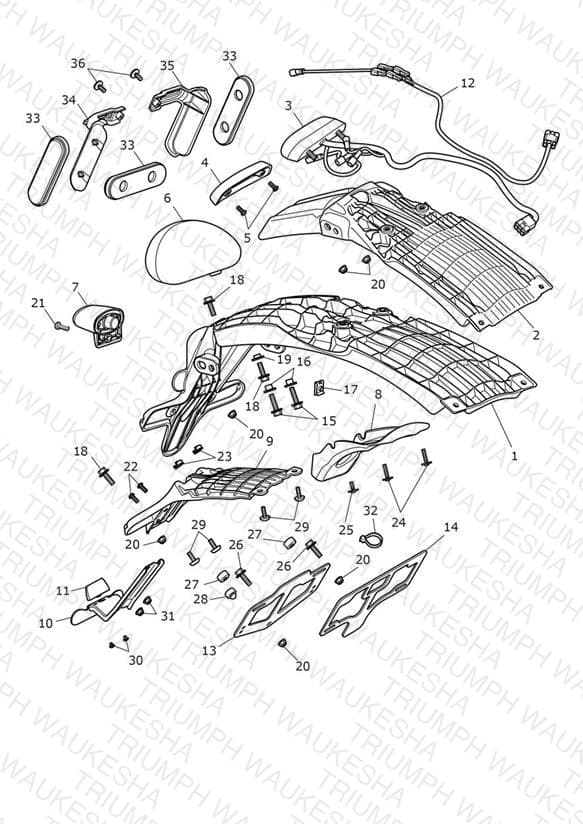

Rear Light
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2702034 Support Bracket, Rear Mudguard | Support Bracket, Rear Mudguard | 1 | $36.96 | Available to order | 1 |
| 2 | T9701323 Support Moulding, Mudguard | Support Moulding, Mudguard Sandstorm Edition Only - All Markets Except CA | 1 | $53.40 | Available to order | 1 |
| 3 | T2701249 Rear Light, LED | Rear Light, LED Sandstorm Edition Only - All Markets Except CA & US | 1 | $432.60 | Available to order | 1 |
| 4 | T9702550 Blanking Plate, Rear Light | Blanking Plate, Rear Light Sandstorm Edition - US Market Only | 1 | $45.62 | Available to order | 1 |
| 5 | T3050348 Screw, Cap/Hd, M6 x 12, Enc, Slv | Screw, Cap/Hd, M6 x 12, Enc, Slv Sandstorm Edition - US Market Only | 2 | $5.14 | Available to order | 2 |
| 6 | T2701265 Rear Light Assy | Rear Light Assy Includes Subharness | 1 | $190.11 | Available to order | 1 |
| 7 | T2701271 Light, Reg Plate | Light, Reg Plate | 1 | $18.91 | Backorder — Mid August 2026 | 1 |
| 8 | T2702100 Closure Plate, Harness | Closure Plate, Harness | 1 | $57.98 | Available to order | 1 |
| 9 | T9701324 Number Plate Hanger | Number Plate Hanger Sandstorm Edition Only - All Markets Except CA | 1 | $18.91 | Available to order | 1 |
| 10 | T9701313 Bracket, Reflector, Pressed | Bracket, Reflector, Pressed Sandstorm Edition Only - All Markets Except CA, US, AU & JP | 1 | $20.14 | Out of Stock | Notify Me |
| 10 | T9701424 Bracket, Reflector, Trimmed | Bracket, Reflector, Trimmed Sandstorm Edition Only - US, AU & JP Markets Only | 1 | $26.00 | Obsolete | View Details |
| 11 | T9830106 LED Light, Reg Plate, Alt | LED Light, Reg Plate, Alt | 1 | $38.93 | Available to order | 1 |
| 12 | T9820091 Harness, Multifunction Lamp | Harness, Multifunction Lamp Sandstorm Edition - US Market Only | 1 | $57.03 | Available to order | 1 |
| 13 | T9701403 Adaptor Plate, Japan | Adaptor Plate, Japan Sandstorm Edition - AU & JP Markets Only | 1 | $48.95 | Backorder — Late August 2026 | 1 |
| 14 | T9708520 Adaptor Plate | Adaptor Plate Sandstorm Edition - US Market Only | 1 | $54.92 | Available to order | 1 |
| 15 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 16 | T3010065 Flanged Sleeve, M6 x 5.5 LG | Flanged Sleeve, M6 x 5.5 LG | 2 | $4.64 | Available to order | 2 |
| 17 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $4.55 | Available to order | 1 |
| 18 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 3 | $3.50 | Available to order | 3 |
| 19 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 1 | $7.14 | Available to order | 1 |
| 20 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 6 | $0.67 | Available to order | 6 |
| 21 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv | 1 | $5.69 | Available to order | 1 |
| 22 | T3332655 Screw, But/HD, M5 x 12. Slv | Screw, But/HD, M5 x 12. Slv Sandstorm Edition Only - All Markets Except CA | 2 | $0.89 | Unavailable | View Details |
| 23 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 Sandstorm Edition Only - All Markets Except CA | 2 | $3.39 | Available to order | 2 |
| 24 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 2 | $1.51 | Available to order | 2 |
| 25 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 1 | $0.75 | Available to order | 1 |
| 26 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv Sandstorm Edition - AU & JP Markets Only | 2 | $5.30 | Available to order | 2 |
| 27 | T3000031 Spacer | Spacer Sandstorm Edition - AU & JP Markets Only | 2 | $5.78 | Out of Stock | Notify Me |
| 28 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 Sandstorm Edition - AU & JP Markets Only | 1 | $2.17 | Available to order | 1 |
| 29 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc Sandstorm Edition Only - All Markets Except CA | 4 | $8.46 | Available to order | 4 |
| 30 | T3330392 Screw, But/Hd, M4 x 5, S/S | Screw, But/Hd, M4 x 5, S/S | 2 | $4.45 | Available to order | 2 |
| 31 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 Sandstorm Edition Only - All Markets Except CA | 2 | $2.25 | Available to order | 2 |
| 32 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long Sandstorm Edition Only - All Markets Except CA | 1 | $0.89 | Available to order | 1 |
| 33 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 3 | $6.14 | Available to order | 3 |
| 34 | T2702025 Bracket, Side Reflector, RH | Bracket, Side Reflector, RH | 1 | $30.70 | Available to order | 1 |
| 35 | T2702026 Bracket, Side Reflector, LH | Bracket, Side Reflector, LH | 1 | $30.70 | Available to order | 1 |
