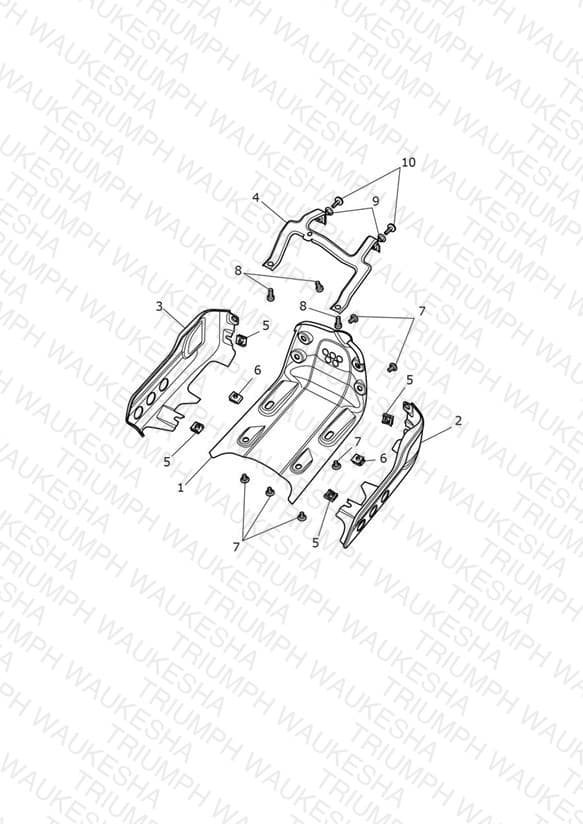

Bellypan - N/A to Sandstorm Edition
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2309845 Bellypan, Front | Bellypan, Front | 1 | $33.66 | Available to order | 1 |
| 2 | T2309867 Bellypan, RH | Bellypan, RH | 1 | $33.66 | Available to order | 1 |
| 3 | T2309856 Bellypan, LH | Bellypan, LH | 1 | $33.66 | Available to order | 1 |
| 4 | T2309823 Bracket, Bellypan | Bracket, Bellypan | 1 | $18.91 | Backorder — Late August 2026 | 1 |
| 5 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 4 | $1.79 | Available to order | 4 |
| 6 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
| 7 | T3330858 Bolt, But/Hd, M6 x 15, Shld, Slv | Bolt, But/Hd, M6 x 15, Shld, Slv | 6 | $2.55 | Available to order | 6 |
| 8 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 3 | $7.42 | Available to order | 3 |
| 9 | T3010707 Sleeve, Flanged, 6.4 x 10 x 6.5 | Sleeve, Flanged, 6.4 x 10 x 6.5 | 2 | $3.59 | Available to order | 2 |
| 10 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.39 | Available to order | 2 |
