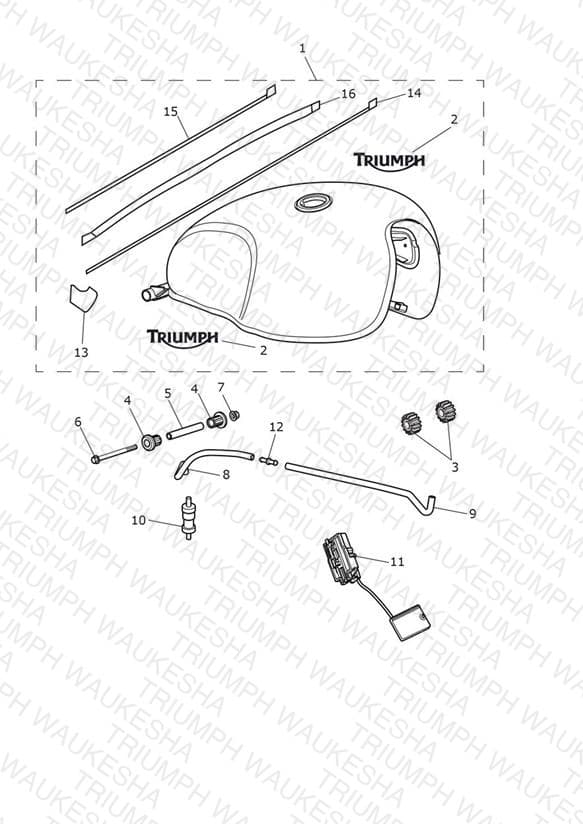

Fuel Tank - Carnival Red/Jet Black, Cosmic Yellow/Graphite & Kingfisher Blue
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2403308-CU Fuel Tank Assembly | Fuel Tank Assembly Carnival Red/Jet Black | 1 | $2254.75 | Available to order | 1 |
| 1 | T2403308-FJ Fuel Tank Assembly | Fuel Tank Assembly Cosmic Yellow/ Graphite - BM5197 > BZ9072 | 1 | $2254.75 | Available to order | 1 |
| 1 | T2403308-KC Fuel Tank Assy, Kingfisher Blue | Fuel Tank Assy, Kingfisher Blue BZ9073 > | 1 | $1061.88 | Out of Stock | Notify Me |
| 2 | T2407111 Decal, Fuel Tank, Wordmark | Decal, Fuel Tank, Wordmark For Red/Black Tank | 2 | $32.52 | Available to order | 2 |
| 2 | T2402207 Tank Badge, 140mm | Tank Badge, 140mm For Yellow/Graphite & Kingfisher Blue Tanks | 2 | $69.37 | Available to order | 2 |
| 3 | T2400854 Tank Mount Bush | Tank Mount Bush | 2 | $2.74 | Available to order | 2 |
| 4 | T2403597 Rubber Bush | Rubber Bush | 2 | $3.50 | Available to order | 2 |
| 5 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 6 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 7 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 8 | T2405057 Hose, Lower, Tank to Rollover | Hose, Lower, Tank to Rollover | 1 | $18.50 | Available to order | 1 |
| 9 | T2405056 Hose, Upper, Tank to Rollover | Hose, Upper, Tank to Rollover | 1 | $21.98 | Out of Stock | Notify Me |
| 10 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 11 | T2403627 Fuel Level Sensor | Fuel Level Sensor | 1 | $241.45 | Available to order | 1 |
| 12 | T2401851 Restrictor, Hose, Breather | Restrictor, Hose, Breather | 1 | $11.32 | Available to order | 1 |
| 13 | T2401625 Protective Film | Protective Film | 1 | $5.78 | Available to order | 1 |
| 14 | T2406976 Decal, Fuel Tank, Stripe 1, Black | Decal, Fuel Tank, Stripe 1, Black For Red/Black & Blue Tanks | 1 | $53.73 | Backorder — Late August 2026 | 1 |
| 14 | T2406021 Decal, Fuel Tank, Stripe 1, Yellow | Decal, Fuel Tank, Stripe 1, Yellow For Yellow/Graphite Tank | 1 | $38.99 | Out of Stock | Notify Me |
| 15 | T2406977 Decal, Fuel Tank, Stripe 2, Black | Decal, Fuel Tank, Stripe 2, Black For Red/Black & Blue Tanks | 1 | $53.73 | Backorder — Late August 2026 | 1 |
| 15 | T2406029 Decal, Fuel Tank, Stripe 2, Yellow | Decal, Fuel Tank, Stripe 2, Yellow For Yellow/Graphite Tank | 1 | $38.99 | Out of Stock | Notify Me |
| 16 | T2406978 Decal, Fuel Tank, Arch Stripe, Red | Decal, Fuel Tank, Arch Stripe, Red For Red/Black Tank | 1 | $53.73 | Backorder — Late August 2026 | 1 |
| 16 | T2406979 Decal, Fuel Tank, Arch Stripe, Yellow | Decal, Fuel Tank, Arch Stripe, Yellow For Yellow/Graphite Tank | 1 | $38.99 | Out of Stock | Notify Me |
| 16 | T2403849 Decal, Fuel Tank, Arch Stripe, Kingfisher Blue | Decal, Fuel Tank, Arch Stripe, Kingfisher Blue For Blue Tanks | 1 | $35.90 | Out of Stock | Notify Me |
