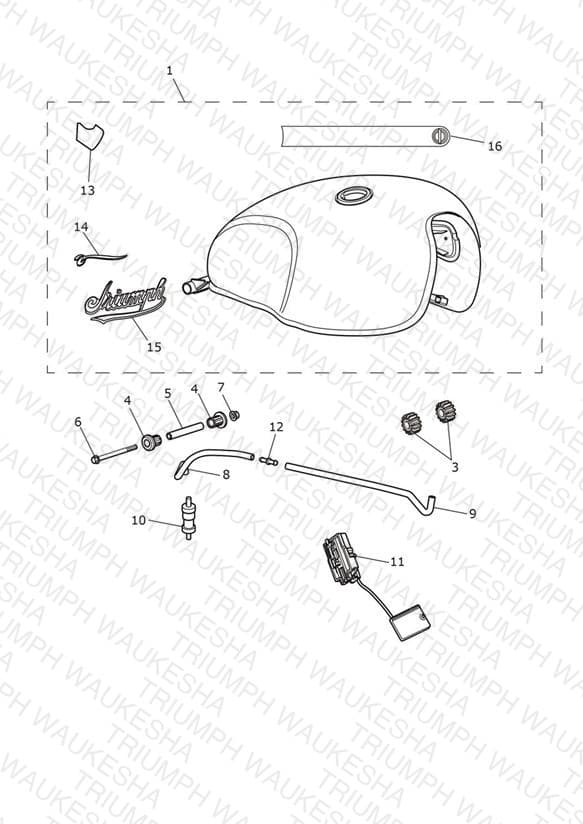

Fuel Tank - Sapphire Black/Aluminium Silver - Icon Edition
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2405331-PM Fuel Tank Assembly | Fuel Tank Assembly Sapphire Black/Aluminium Silver | 1 | $2507.70 | Available to order | 1 |
| 3 | T2400854 Tank Mount Bush | Tank Mount Bush | 2 | $2.74 | Available to order | 2 |
| 4 | T2403597 Rubber Bush | Rubber Bush | 2 | $3.50 | Available to order | 2 |
| 5 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 6 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 7 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 8 | T2405057 Hose, Lower, Tank to Rollover | Hose, Lower, Tank to Rollover | 1 | $18.50 | Available to order | 1 |
| 9 | T2405056 Hose, Upper, Tank to Rollover | Hose, Upper, Tank to Rollover | 1 | $21.98 | Out of Stock | Notify Me |
| 10 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 11 | T2403627 Fuel Level Sensor | Fuel Level Sensor | 1 | $241.45 | Available to order | 1 |
| 12 | T2401851 Restrictor, Hose, Breather | Restrictor, Hose, Breather | 1 | $11.32 | Available to order | 1 |
| 13 | T2401625 Protective Film | Protective Film | 1 | $5.78 | Available to order | 1 |
| 14 | T2404271 Decal 1, FT, Logo, Empire Gold | Decal 1, FT, Logo, Empire Gold | 2 | $35.52 | Out of Stock | Notify Me |
| 15 | T2404414 Decal 2, FT, Logo, Empire Gold | Decal 2, FT, Logo, Empire Gold | 2 | $35.52 | Out of Stock | Notify Me |
| 16 | T2406585 Decal, Tank Stripe, Aluminium | Decal, Tank Stripe, Aluminium | 1 | $35.52 | Out of Stock | Notify Me |
