Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics
Loading schematic...

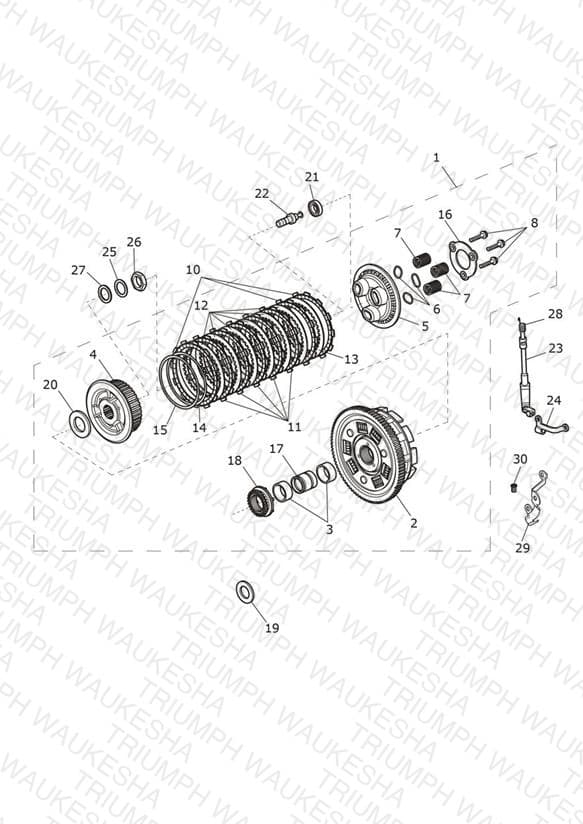

Clutch
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1177700 Clutch Assembly | Clutch Assembly | 1 | $1242.05 | Available to order | 1 |
| 2 | T1175522 Outer Componenet, Clutch | Outer Componenet, Clutch | 1 | $861.23 | Out of Stock | Notify Me |
| 3 | T1172442 Bearing, Needle, 32 x 37 x 17.8 | Bearing, Needle, 32 x 37 x 17.8 | 2 | $71.41 | Backorder — Late September 2026 | 2 |
| 4 | T1175533 Centre, Clutch | Centre, Clutch | 1 | $337.25 | Available to order | 1 |
| 5 | T1175577 Pressure Plate, Clutch | Pressure Plate, Clutch | 1 | $239.82 | Available to order | 1 |
| 6 | T1175545 Seat, Spring, Clutch | Seat, Spring, Clutch | 3 | $10.99 | Backorder — Early November 2026 | 3 |
| 7 | T1175566 Clutch Spring, 900 | Clutch Spring, 900 | 3 | $5.65 | Available to order | 3 |
| 8 | T1175550 Bolt, H/Hd, M6 x 30, Slv | Bolt, H/Hd, M6 x 30, Slv | 3 | $5.16 | Available to order | 3 |
| 9 | T1175555 Kit, Friction Discs | Kit, Friction Discs Comprises 3 x item 10 & 5 x item 11 | 1 | $153.50 | Available to order | 1 |
| 10 | T1175540 Friction Disk, Clutch | Friction Disk, Clutch | 3 | $21.11 | Available to order | 3 |
| 11 | T1175535 Friction Disk, Clutch | Friction Disk, Clutch | 5 | $21.11 | Available to order | 5 |
| 12 | T1175525 Clutch Plate | Clutch Plate | 6 | $25.75 | Available to order | 6 |
| 13 | T1175530 Clutch Plate, B | Clutch Plate, B | 1 | $52.29 | Available to order | 1 |
| 14 | T1170172 Spring, Judder | Spring, Judder | 1 | $20.38 | Available to order | 1 |
| 15 | T1170173 Seat, Judder Spring | Seat, Judder Spring | 1 | $22.30 | Available to order | 1 |
| 16 | T1175575 Plate, Stopper | Plate, Stopper | 1 | $140.93 | Available to order | 1 |
| 17 | T1176611 Bush, Clutch, 25 x 32 x 37 | Bush, Clutch, 25 x 32 x 37 | 1 | $64.41 | Available to order | 1 |
| 18 | T1176644 Sprocket, Auxiliary Drive | Sprocket, Auxiliary Drive | 1 | $139.14 | Out of Stock | Notify Me |
| 19 | T1176622 Spacer, Clutch, 25 x 43 x 2.7 | Spacer, Clutch, 25 x 43 x 2.7 | 1 | $18.54 | Available to order | 1 |
| 20 | T1174700 Washer, 25.5 x 53 x 2 | Washer, 25.5 x 53 x 2 | 1 | $10.84 | Available to order | 1 |
| 21 | T1170105 Bearing, Clutch Lifter | Bearing, Clutch Lifter | 1 | $34.05 | Available to order | 1 |
| 22 | T1175590 Lifter Piece, Clutch | Lifter Piece, Clutch | 1 | $46.00 | Available to order | 1 |
| 23 | T1175900 Arm, Lifter, Clutch | Arm, Lifter, Clutch | 1 | $88.63 | Available to order | 1 |
| 24 | T1176000 Guide, Clutch Cable | Guide, Clutch Cable | 1 | $12.41 | Available to order | 1 |
| 25 | T1179999 Washer, C, Clutch | Washer, C, Clutch | 1 | $12.14 | Available to order | 1 |
| 26 | T1170106 Nut, Clutch, 22mm | Nut, Clutch, 22mm | 1 | $14.01 | Available to order | 1 |
| 27 | T1171282 Washer, ID 22, OD 34 | Washer, ID 22, OD 34 | 1 | $4.95 | Available to order | 1 |
| 28 | T1175599 Return Spring, Clutch | Return Spring, Clutch | 1 | $7.68 | Available to order | 1 |
| 29 | T1261571 Bracket, Clutch Cable, Silver | Bracket, Clutch Cable, Silver | 1 | $20.00 | Available to order | 1 |
| 30 | T3020356 Rubber Grommet, ID 5.75 | Rubber Grommet, ID 5.75 | 1 | $6.06 | Available to order | 1 |
| 31 | T1175560 Clutch Plate, 1.6mm | Clutch Plate, 1.6mm Not Illustrated | 1 | $23.07 | Available to order | 1 |
| 31 | T1175570 Clutch Plate, 2.3mm | Clutch Plate, 2.3mm Not Illustrated | 1 | $21.31 | Out of Stock | Notify Me |
