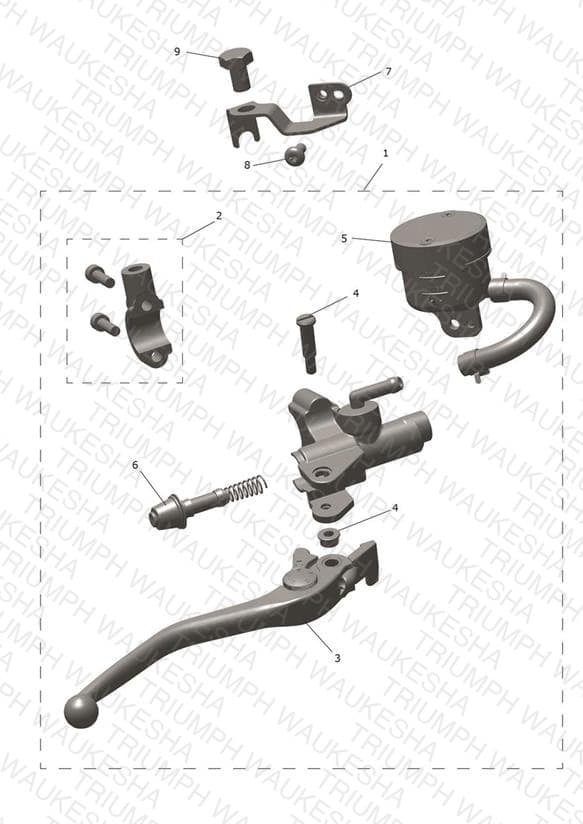

Front Master Cylinder Assy
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2025117 Front M/Cyl Assy, 12.7mm | Front M/Cyl Assy, 12.7mm | 1 | $616.65 | Out of Stock | Notify Me |
| 2 | T2025411 Clamp Set | Clamp Set | 1 | $33.93 | Available to order | 1 |
| 3 | T2025118 Lever, Front Brake | Lever, Front Brake | 1 | $123.28 | Backorder — Mid August 2026 | 1 |
| 4 | T2020158 Lever, Bolt, Front M/Cyl | Lever, Bolt, Front M/Cyl | 1 | $13.56 | Available to order | 1 |
| 5 | T2027006 M/Cyl, Reservoir Assy, Front | M/Cyl, Reservoir Assy, Front | 1 | $50.30 | Out of Stock | Notify Me |
| 6 | T2020006 Piston Set | Piston Set | 1 | $85.52 | Available to order | 1 |
| 7 | T2022171 Reservoir Bracket | Reservoir Bracket | 1 | $23.76 | Available to order | 1 |
| 8 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 1 | $0.97 | Available to order | 1 |
| 9 | T3050141 Bolt, H/HD, M10 x 16 | Bolt, H/HD, M10 x 16 | 1 | $3.17 | Available to order | 1 |
