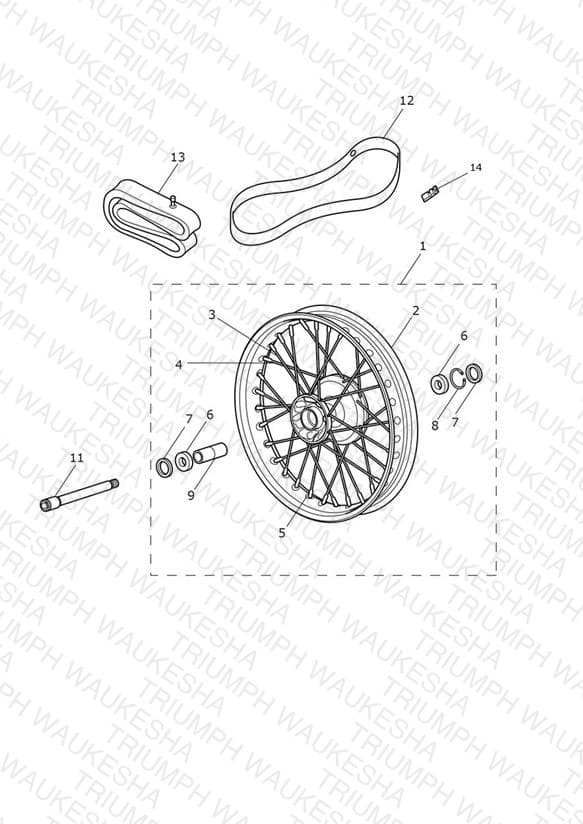

Front Wheel
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2007419 Wheel, Spoked, FR, 19 x 2.5 Al | Wheel, Spoked, FR, 19 x 2.5 Al | 1 | $1130.85 | Out of Stock | Notify Me |
| 2 | T2007421 Rim, Front, 19 x 2.5, Al | Rim, Front, 19 x 2.5, Al | 1 | $613.69 | Out of Stock | Notify Me |
| 3 | T2001201 Spoke, Front, 185.5mm | Spoke, Front, 185.5mm | 16 | $6.45 | Available to order | 16 |
| 4 | T2001202 Spoke, Front, 198.6mm | Spoke, Front, 198.6mm | 16 | $6.94 | Available to order | 16 |
| 5 | T2005003 Nipple, Steel, Spoke | Nipple, Steel, Spoke | 32 | $6.39 | Available to order | 32 |
| 6 | T3800095 Bearing Ball, 20 42 12 | Bearing Ball, 20 42 12 | 2 | $32.32 | Available to order | 2 |
| 7 | T3600042 Oil Seal, 30 42 6 | Oil Seal, 30 42 6 | 2 | $10.40 | Available to order | 2 |
| 8 | T3500023 Circlip, Int Dia 42 | Circlip, Int Dia 42 | 1 | $13.48 | Available to order | 1 |
| 9 | T2007518 Spacer, Internal, Wheel | Spacer, Internal, Wheel | 1 | $53.40 | Out of Stock | Notify Me |
| 11 | T2000595 Spindle, Front Wheel | Spindle, Front Wheel | 1 | $76.59 | Available to order | 1 |
| 12 | T2002880 Rim Band, 19 Inch, 20mm Wide | Rim Band, 19 Inch, 20mm Wide | 1 | $9.02 | Available to order | 1 |
| 13 | T2000964 Inner Tube, 100/90-19 | Inner Tube, 100/90-19 | 1 | $60.96 | Available to order | 1 |
| 14 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black | — | $11.01 | Available to order | 1 |
