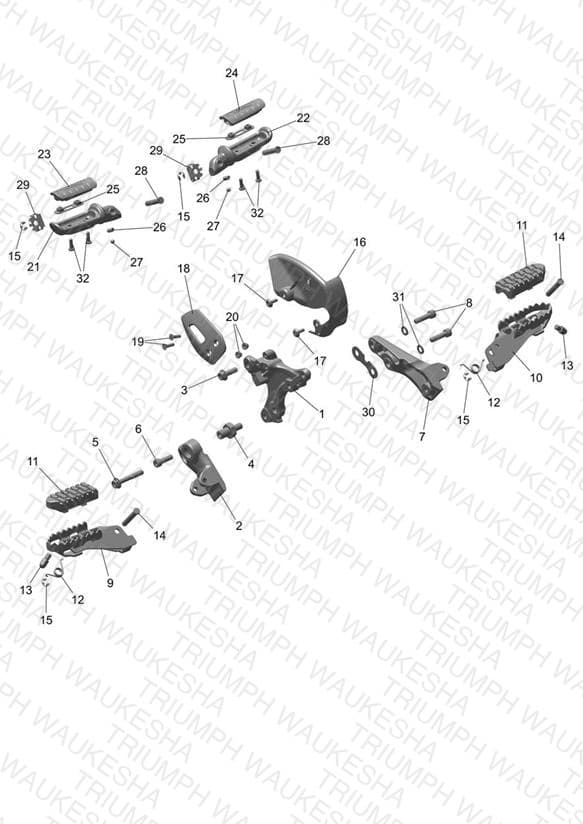

Foot Controls
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2084015 Control Plate, RH | Control Plate, RH | 1 | $111.68 | Available to order | 1 |
| 2 | T2081790 Clevis, RH | Clevis, RH | 1 | $146.47 | Available to order | 1 |
| 3 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | 1 | $1.73 | Available to order | 1 |
| 4 | T3331561 Pivot Pin, Brake Pedal | Pivot Pin, Brake Pedal | 1 | $6.98 | Available to order | 1 |
| 5 | T3202307 Bolt, HHF, M8 x 50, Slv | Bolt, HHF, M8 x 50, Slv | 1 | $7.08 | Available to order | 1 |
| 6 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 1 | $4.38 | Available to order | 1 |
| 7 | T2082356 Clevis, LH | Clevis, LH | 1 | $146.47 | Available to order | 1 |
| 8 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 2 | $5.05 | Available to order | 2 |
| 9 | T2085145 Footpeg, RH, Front | Footpeg, RH, Front | 1 | $68.06 | Available to order | 1 |
| 10 | T2085146 Footpeg, LH, Front | Footpeg, LH, Front | 1 | $70.91 | Available to order | 1 |
| 11 | T2085119 Footrest, Rubber | Footrest, Rubber | 2 | $13.01 | Available to order | 2 |
| 12 | T2082605 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.70 | Available to order | 2 |
| 13 | T2085160 Peg, Bank Angle, 15mm | Peg, Bank Angle, 15mm | 2 | $14.59 | Backorder — Late October 2026 | 2 |
| 14 | T2080874 Pivot Pin, Footrest, 8.0 | Pivot Pin, Footrest, 8.0 | 2 | $9.69 | Available to order | 2 |
| 15 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $3.04 | Available to order | 4 |
| 16 | T2022819 Cover, Sprocket, Inner | Cover, Sprocket, Inner | 1 | $52.29 | Out of Stock | Notify Me |
| 17 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 2 | $9.00 | Available to order | 2 |
| 18 | T2086420 Heelguard, Pressing | Heelguard, Pressing | 2 | $30.45 | Available to order | 2 |
| 19 | T3330686 Screw, Csk, Skt, M5 x 20, Slv | Screw, Csk, Skt, M5 x 20, Slv | 2 | $3.61 | Available to order | 2 |
| 20 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.40 | Available to order | 2 |
| 21 | T2085175 Footrest, Rear, RH, Black | Footrest, Rear, RH, Black | 1 | $100.47 | Out of Stock | Notify Me |
| 22 | T2085176 Footrest, Rear, LH, Black | Footrest, Rear, LH, Black | 1 | $100.47 | Available to order | 1 |
| 23 | T2081977 Rubber, Pillion, RH | Rubber, Pillion, RH | 1 | $16.54 | Available to order | 1 |
| 24 | T2081978 Rubber, Pillion, LH | Rubber, Pillion, LH | 1 | $16.54 | Available to order | 1 |
| 25 | T2086988 Nutplate, Footpeg | Nutplate, Footpeg | 2 | $6.15 | Available to order | 2 |
| 26 | T2081674 Spring, Detent | Spring, Detent | 2 | $6.81 | Available to order | 2 |
| 27 | T2081675 Detent Ball | Detent Ball | 2 | $2.04 | Available to order | 2 |
| 28 | T2080547 Pivot pin | Pivot pin | 2 | $6.98 | Available to order | 2 |
| 29 | T2081672 Detent Plate | Detent Plate | 2 | $5.65 | Available to order | 2 |
| 30 | T2082205 Spacer Plate, Clevis | Spacer Plate, Clevis | 1 | $5.97 | Available to order | 1 |
| 31 | T3551282 Washer, M8, 8.4 x 15 x 1.6, Slv | Washer, M8, 8.4 x 15 x 1.6, Slv | 2 | $3.61 | Available to order | 2 |
| 32 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 4 | $1.04 | Available to order | 4 |
