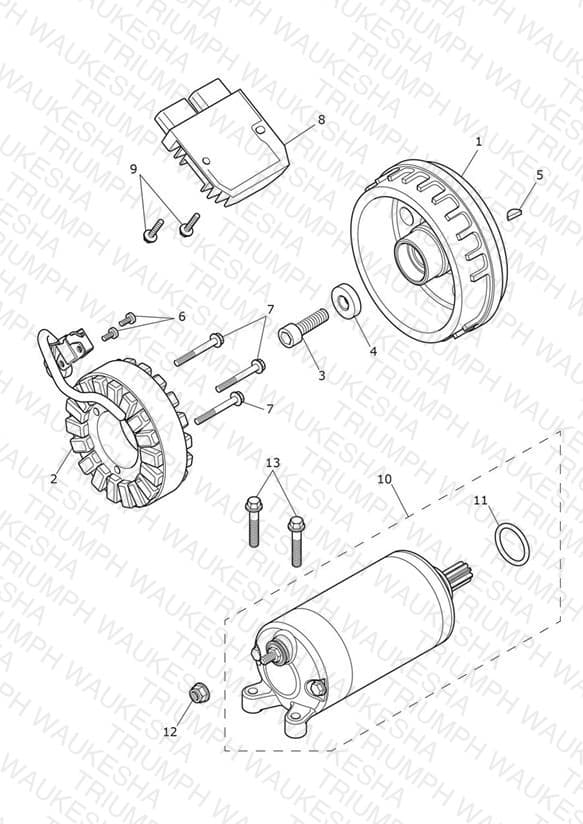

Alternator & Starter Motor
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1300109 Rotor, Alternator, Low Inertia | Rotor, Alternator, Low Inertia | 1 | $888.98 | Available to order | 1 |
| 2 | T1301984 Stator, Alternator | Stator, Alternator | 1 | $436.75 | Out of Stock | Notify Me |
| 3 | T3208888 Bolt, Radial Feed, M12 x 40 | Bolt, Radial Feed, M12 x 40 | 1 | $14.46 | Available to order | 1 |
| 4 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 5 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 6 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 7 | T3051082 Screw, Cap/Hd, M6 x 50, Enc | Screw, Cap/Hd, M6 x 50, Enc | 3 | $2.17 | Available to order | 3 |
| 8 | T1300679 Regulator Rectifier | Regulator Rectifier | 1 | $412.16 | Available to order | 1 |
| 9 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 10 | T1313222 Starter Motor, 1KW | Starter Motor, 1KW | 1 | $1153.04 | Available to order | 1 |
| 11 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
| 12 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 13 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv | 2 | $2.37 | Available to order | 2 |
