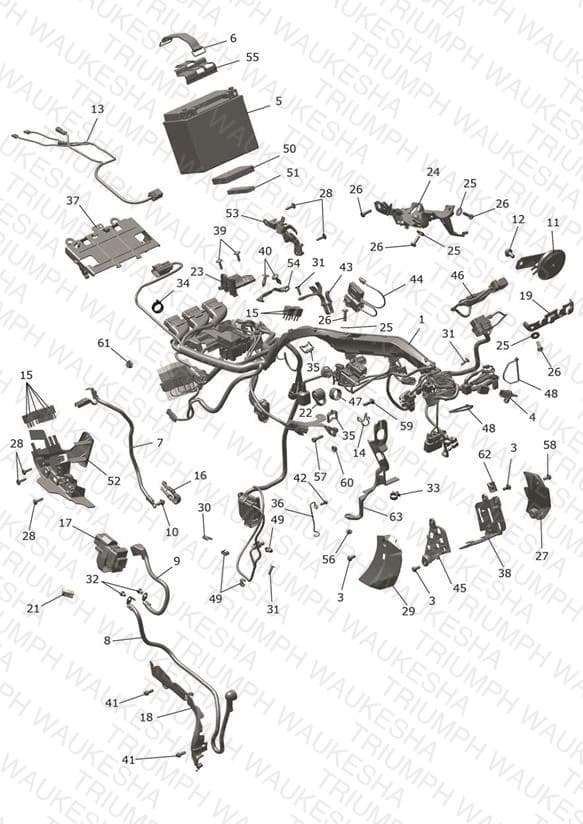

Electrical Equipment
Parts (71)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2504709 Main Harness | Main Harness | 1 | $1007.20 | Backorder — Mid October 2026 | 1 |
| 2 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 1 | $5.05 | Available to order | 1 |
| 2 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 1 | $5.05 | Available to order | 1 |
| 2 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 1 | $5.05 | Available to order | 1 |
| 2 | T2501320 Fuse, Mini, 20A | Fuse, Mini, 20A | 1 | $5.05 | Available to order | 1 |
| 2 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 1 | $5.05 | Available to order | 1 |
| 3 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 3 | $1.50 | Available to order | 3 |
| 4 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $63.55 | Available to order | 1 |
| 5 | T2505581 Battery, 12V, 10AH | Battery, 12V, 10AH All Except BR/JP/EF/ER/GR Markets | 1 | $120.38 | Available to order | 1 |
| 5 | T2501736 Kit, Battery, YTX12 BS | Kit, Battery, YTX12 BS BR Only | 1 | $126.01 | Backorder — Late October 2026 | 1 |
| 5 | T2508687 Spares Kit, Battery | Spares Kit, Battery JP Only - Includes Pads, Items 50 & 51 | 1 | $136.98 | Out of Stock | Notify Me |
| 5 | T2506211 Kit, Battery, YTX12-BS | Kit, Battery, YTX12-BS EF/ER/GR Markets Only | 1 | $120.38 | Out of Stock | Notify Me |
| 6 | T2501078 Battery Strap | Battery Strap | 1 | $10.72 | Out of Stock | Notify Me |
| 7 | T2500932 Earth Lead | Earth Lead | 1 | $11.24 | Available to order | 1 |
| 8 | T2500933 Starter Lead | Starter Lead | 1 | $75.58 | Available to order | 1 |
| 9 | T2509984 Battery Lead, Positive | Battery Lead, Positive | 1 | $18.42 | Available to order | 1 |
| 10 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.84 | Available to order | 1 |
| 11 | T2507002 Horn Assy, 440 Hz | Horn Assy, 440 Hz | 1 | $53.23 | Available to order | 1 |
| 12 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.91 | Available to order | 1 |
| 13 | T2504478 Subharness, Lights, Rear | Subharness, Lights, Rear All Except US/CA | 1 | $46.18 | Out of Stock | Notify Me |
| 13 | T2504479 Subharness, Lights, Rear | Subharness, Lights, Rear US/CA Only | 1 | $46.31 | Available to order | 1 |
| 14 | T2505272 Wire Guide, Stator Lead | Wire Guide, Stator Lead | 1 | $11.33 | Out of Stock | Notify Me |
| 15 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 7 | $8.02 | Available to order | 7 |
| 16 | T2506520 Cover, Earth Lead | Cover, Earth Lead | 1 | $10.95 | Available to order | 1 |
| 17 | T1310120 Starter, Solenoid, Fused | Starter, Solenoid, Fused | 1 | $61.20 | Available to order | 1 |
| 17 | T2500805 Fuse, 30A | Fuse, 30A | 1 | $1.50 | Available to order | 1 |
| 18 | T2501772 Moulding, Starter Cable Guide | Moulding, Starter Cable Guide | 1 | $16.54 | Available to order | 1 |
| 19 | T2504172 Moulding, Bracket, Connectors, Headstock Rear | Moulding, Bracket, Connectors, Headstock Rear | 1 | $6.64 | Out of Stock | Notify Me |
| 21 | T2505049 Blanking Plug, O2 Sensor | Blanking Plug, O2 Sensor | 1 | $7.08 | Available to order | 1 |
| 22 | T2505544 Retention Cap | Retention Cap | 1 | $2.81 | Out of Stock | Notify Me |
| 23 | T2505187 Bracket, Fusebox Moulding | Bracket, Fusebox Moulding | 1 | $5.81 | Out of Stock | Notify Me |
| 24 | T2504707 Moulding, Coils Bracket | Moulding, Coils Bracket | 1 | $12.84 | Out of Stock | Notify Me |
| 25 | T3555025 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 4 | $1.84 | Available to order | 4 |
| 26 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 5 | $5.65 | Available to order | 5 |
| 27 | T2504234 Moulding, Headstock Guide, LH, Outer | Moulding, Headstock Guide, LH, Outer | 1 | $6.64 | Out of Stock | Notify Me |
| 28 | T3331260 Screw, Thread Forming, 5 x 20 | Screw, Thread Forming, 5 x 20 | 5 | $11.02 | Available to order | 5 |
| 29 | T2504287 Moulding, Headstock Guide, RH, Outer | Moulding, Headstock Guide, RH, Outer | 1 | $6.64 | Available to order | 1 |
| 30 | T3701094 P Clip, Dia 4.4, Black | P Clip, Dia 4.4, Black | 1 | $3.45 | Out of Stock | Notify Me |
| 31 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 3 | $5.58 | Available to order | 3 |
| 32 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $5.20 | Available to order | 2 |
| 33 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 2 | $3.45 | Available to order | 2 |
| 34 | T2046017 Clip, Cable, Black | Clip, Cable, Black | 1 | $6.06 | Available to order | 1 |
| 35 | T3700216 Clip, Wire, Saddle | Clip, Wire, Saddle | 2 | $4.38 | Available to order | 2 |
| 36 | T2503076 Wire Guide | Wire Guide | 1 | $5.97 | Available to order | 1 |
| 37 | T2501979 Bracket, ECU Mounting | Bracket, ECU Mounting | 1 | $8.07 | Available to order | 1 |
| 38 | T2505700 Mldg, Cover, Headstock, LH | Mldg, Cover, Headstock, LH | 1 | $18.42 | Out of Stock | Notify Me |
| 39 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $7.18 | Available to order | 2 |
| 40 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 2 | $1.29 | Available to order | 2 |
| 41 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.73 | Available to order | 2 |
| 42 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 1 | $1.04 | Available to order | 1 |
| 43 | T2504417 Cable & Hose Guide Mldg | Cable & Hose Guide Mldg | 1 | $4.65 | Out of Stock | Notify Me |
| 44 | T2503437 Auxilary Fly Lead, JP | Auxilary Fly Lead, JP JP Only | 1 | $24.88 | Available to order | 1 |
| 45 | T2504288 Moulding, Headstock Guide, RH, Inner | Moulding, Headstock Guide, RH, Inner | 1 | $6.64 | Out of Stock | Notify Me |
| 46 | T2505319 Charger, USB | Charger, USB | 1 | $61.88 | Available to order | 1 |
| 47 | T3700212 Band, Rubber | Band, Rubber | 1 | $3.50 | Available to order | 1 |
| 48 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 3 | $0.95 | Available to order | 3 |
| 49 | T3700061 Clip, Cable Double | Clip, Cable Double | 3 | $5.65 | Available to order | 3 |
| 50 | T2509499 Pad, Battery, Top | Pad, Battery, Top JP Only - Included in Battery Kit, Item 5 | 1 | $4.74 | Backorder — Mid October 2026 | 1 |
| 51 | T2507801 Pad, Battery, Bottom | Pad, Battery, Bottom JP Only - Included in Battery Kit, Item 5 | 1 | $4.74 | Out of Stock | Notify Me |
| 52 | T2504202 Sidepanel, Inner, RH, Mldg | Sidepanel, Inner, RH, Mldg | 1 | $27.63 | Out of Stock | Notify Me |
| 53 | T2504203 Sidepanel, Inner, LH, Mldg | Sidepanel, Inner, LH, Mldg | 1 | $27.63 | Out of Stock | Notify Me |
| 54 | T2504843 Moulding, Harness Retention | Moulding, Harness Retention | 1 | $3.78 | Out of Stock | Notify Me |
| 55 | T2505190 Moulding, Mount, OBD Connector | Moulding, Mount, OBD Connector | 1 | $6.64 | Out of Stock | Notify Me |
| 56 | T3010061 Flanged Sleeve, M6 x 9 x 3.25 | Flanged Sleeve, M6 x 9 x 3.25 | 1 | $7.68 | Available to order | 1 |
| 57 | T3050339 Screw, Cap/Hd, M6x 20, Slv, Enc | Screw, Cap/Hd, M6x 20, Slv, Enc | 1 | $1.21 | Available to order | 1 |
| 58 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 1 | $1.04 | Available to order | 1 |
| 59 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 1 | $2.24 | Available to order | 1 |
| 60 | T3350067 Nut, Flanged, M6 | Nut, Flanged, M6 | 1 | $1.50 | Available to order | 1 |
| 61 | T3704444 Clip, Cable Tie, Fir Tree | Clip, Cable Tie, Fir Tree | 1 | $2.65 | Backorder — Early October 2026 | 1 |
| 62 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 1 | $1.91 | Available to order | 1 |
| 63 | T2505277 Conduit, Stator Lead | Conduit, Stator Lead | 1 | $11.05 | Out of Stock | Notify Me |
