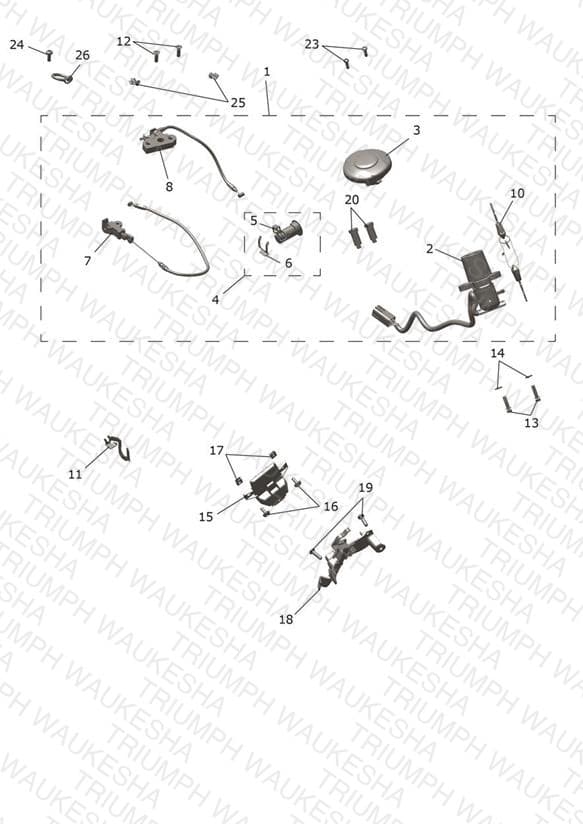

Ignition Switch & Lockset
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2504281 Lockset | Lockset | 1 | $616.65 | Backorder — Early October 2026 | 1 |
| 2 | T2503928 Ignition Lock, Combined | Ignition Lock, Combined Includes 2 keys | 1 | $576.30 | Available to order | 1 |
| 3 | T2508017 Filler Cap, Locking | Filler Cap, Locking Includes 2 keys | 1 | $145.36 | Available to order | 1 |
| 4 | T2501924 Seat Lock Assembly | Seat Lock Assembly | 1 | $120.82 | Available to order | 1 |
| 5 | T2501922 Seat Lock, Panel Mount | Seat Lock, Panel Mount | 1 | $30.69 | Available to order | 1 |
| 6 | T2505616 Clip, Seat Lock | Clip, Seat Lock | 1 | $10.61 | Available to order | 1 |
| 7 | T2503006 Seat Latch | Seat Latch | 1 | $45.80 | Out of Stock | Notify Me |
| 8 | T2505360 Latch Assy, Seat | Latch Assy, Seat | 1 | $35.92 | Out of Stock | Notify Me |
| 10 | T2504577 Key, Cut, Immobiliser | Key, Cut, Immobiliser Supplied as pair | 1 | $77.56 | Out of Stock | Notify Me |
| 10 | T2504578 Key, Blank, Immobiliser | Key, Blank, Immobiliser Supplied as single | 2 | $70.91 | Available to order | 2 |
| 11 | T2501725 Cable Bracket, Seat Lock | Cable Bracket, Seat Lock | 1 | $15.38 | Available to order | 1 |
| 12 | T3331200 Screw, CSK, M6 x 20, T30, SLV, Enc | Screw, CSK, M6 x 20, T30, SLV, Enc | 2 | $7.68 | Available to order | 2 |
| 13 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.58 | Available to order | 2 |
| 14 | T3550436 Washer, M6, Elongated | Washer, M6, Elongated | 2 | $4.74 | Available to order | 2 |
| 15 | T2507434 Immobiliser ECU, RF 434 | Immobiliser ECU, RF 434 All Except JP | 1 | $1208.81 | Available to order | 1 |
| 15 | T2507315 Immobiliser ECU, RF 315 | Immobiliser ECU, RF 315 JP Only | 1 | $1208.81 | Out of Stock | Notify Me |
| 16 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 2 | $5.24 | Available to order | 2 |
| 17 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $4.84 | Available to order | 2 |
| 18 | T2504283 Moulding, Bracket, Immobiliser | Moulding, Bracket, Immobiliser | 1 | $11.98 | Out of Stock | Notify Me |
| 19 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 2 | $5.65 | Available to order | 2 |
| 20 | T2500693 Lock Barrel | Lock Barrel | 2 | $54.53 | Available to order | 2 |
| 23 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $1.04 | Available to order | 2 |
| 24 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $1.04 | Available to order | 1 |
| 25 | T3700162 Clip, Cable/Pipe | Clip, Cable/Pipe | 2 | $1.21 | Available to order | 2 |
| 26 | T2310080 Pull Ring, Latch | Pull Ring, Latch | 1 | $11.91 | Available to order | 1 |
