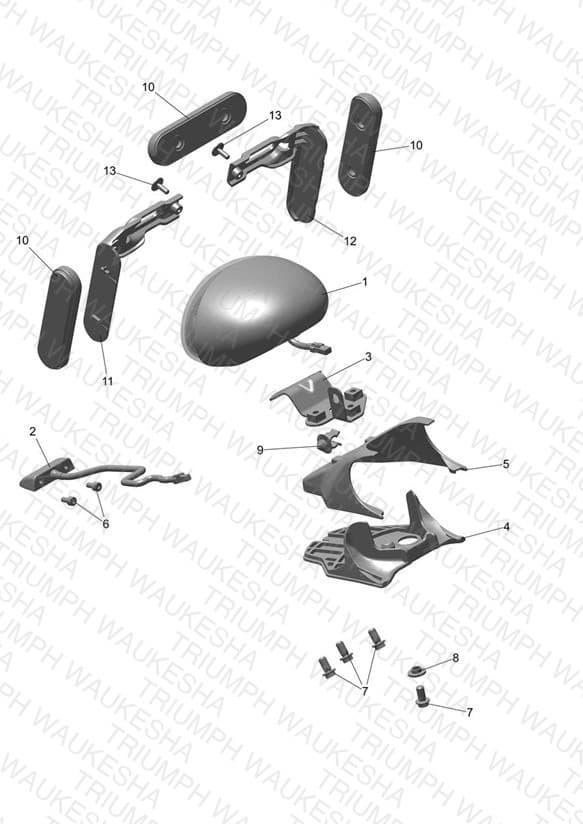

Rear Light - US & CA
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2701255 Rear Light Assembly | Rear Light Assembly | 1 | $194.67 | Available to order | 1 |
| 2 | T2701254 Reg Plate Light | Reg Plate Light | 1 | $36.42 | Available to order | 1 |
| 3 | T2701489 Bracket, Rear Light | Bracket, Rear Light | 1 | $8.88 | Out of Stock | Notify Me |
| 4 | T2701527 Plinth, Rear Light, Rubber | Plinth, Rear Light, Rubber | 1 | $7.78 | Out of Stock | Notify Me |
| 5 | T2703602 Mount, Rear Light, Mldg | Mount, Rear Light, Mldg | 1 | $5.45 | Available to order | 1 |
| 6 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 2 | $5.14 | Available to order | 2 |
| 7 | T3200661 Bolt, TX, Lghtd, M6 x 12, Slv | Bolt, TX, Lghtd, M6 x 12, Slv | 4 | $3.79 | Out of Stock | Notify Me |
| 8 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 1 | $7.14 | Available to order | 1 |
| 9 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 1 | $5.88 | Available to order | 1 |
| 10 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 3 | $6.14 | Available to order | 3 |
| 11 | T2701536 Bracket, Reflector, RH | Bracket, Reflector, RH | 1 | $5.46 | Out of Stock | Notify Me |
| 12 | T2701538 Bracket, Reflector, LH | Bracket, Reflector, LH | 1 | $5.46 | Out of Stock | Notify Me |
| 13 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 2 | $0.75 | Available to order | 2 |
