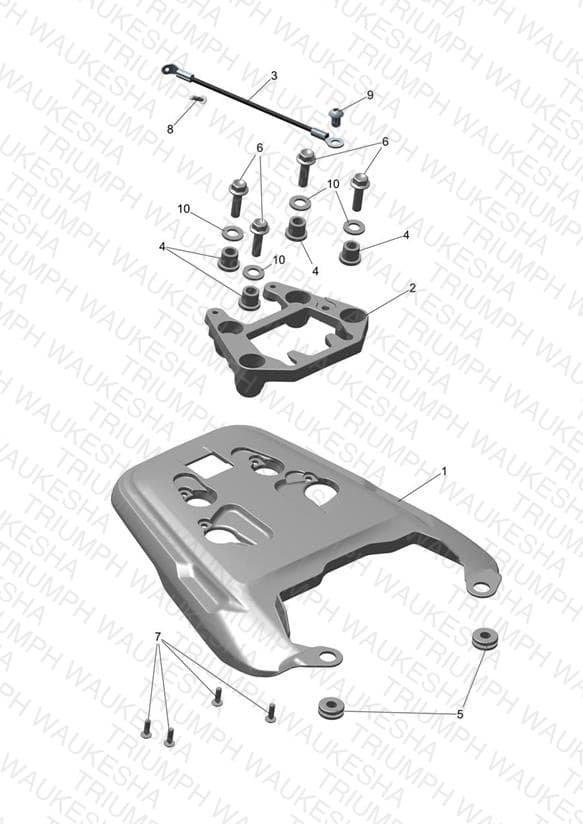

Rear Bodywork
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2312215-PD Frame Cowl, Solo Seat, Matt Phantom Black | Frame Cowl, Solo Seat, Matt Phantom Black Matt Khaki Green/Matt Phantom Black Bikes | 1 | $365.87 | Out of Stock | Notify Me |
| 1 | T2312215-PR Frame Cowl, Solo Seat, Phantom Black | Frame Cowl, Solo Seat, Phantom Black Mineral Grey/Cosmic Yellow Bikes | 1 | $365.87 | Available to order | 1 |
| 1 | T2312215-PS Frame Cowl, Solo Seat, Matt Jet Black | Frame Cowl, Solo Seat, Matt Jet Black Urban Grey Bikes | 1 | $365.87 | Out of Stock | Notify Me |
| 2 | T2313901 Subframe, Rack, Luggage, Mldg | Subframe, Rack, Luggage, Mldg | 1 | $19.95 | Out of Stock | Notify Me |
| 3 | T2309807 Seat Lanyard | Seat Lanyard | 1 | $26.69 | Available to order | 1 |
| 4 | T3010399 Compression Limiter | Compression Limiter | 4 | $5.04 | Out of Stock | Notify Me |
| 5 | T3020188 Grommet, 16.5 x 3 x 9.5 | Grommet, 16.5 x 3 x 9.5 | 2 | $1.91 | Out of Stock | Notify Me |
| 6 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 4 | $1.21 | Available to order | 4 |
| 7 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 4 | $1.51 | Available to order | 4 |
| 8 | T3331432 Screw, Pan/Hd, Torx, M4 x 18, Slv | Screw, Pan/Hd, Torx, M4 x 18, Slv | 1 | $1.06 | Backorder — Mid August 2026 | 1 |
| 9 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 1 | $1.72 | Available to order | 1 |
| 10 | T3555041 Washer, 10.25 x 19.5 x 2 | Washer, 10.25 x 19.5 x 2 | 4 | $2.83 | Available to order | 4 |
