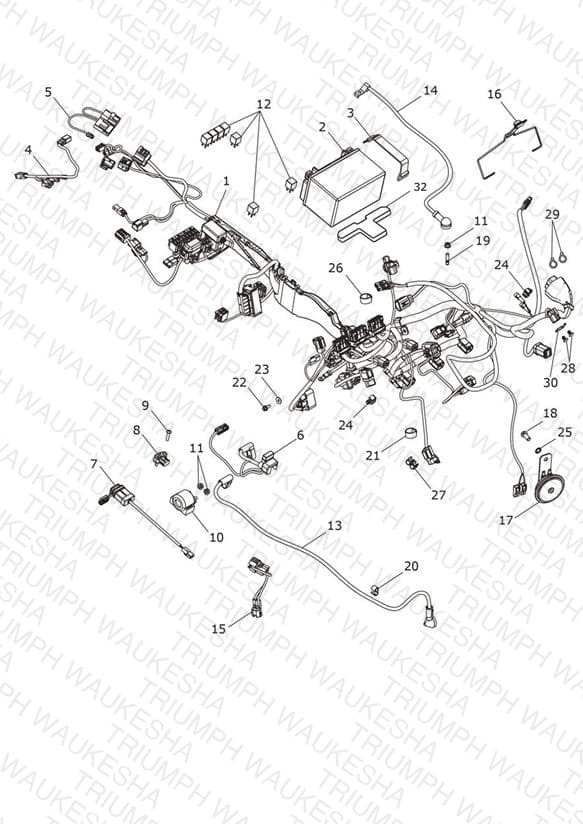

Electrical System
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2506117 Main Harness, Type II | Main Harness, Type II | 1 | $878.08 | Out of Stock | Notify Me |
| 2 | T2507773 Spares Kit, Battery | Spares Kit, Battery JP Only - Includes items 6 & 32 | 1 | $246.57 | Backorder — Late August 2026 | 1 |
| 2 | T2500183 Battery | Battery All Markets Except EF/ER/GR/JP | 1 | $125.34 | Available to order | 1 |
| 2 | T2506715 Kit, Battery, YTX9-BS | Kit, Battery, YTX9-BS EF/ER/GR Markets Only | 1 | $116.06 | Out of Stock | Notify Me |
| 3 | T2501740 Battery Strap | Battery Strap | 1 | $9.97 | Available to order | 1 |
| 4 | T2500898 Rear Subharness, Lighting | Rear Subharness, Lighting | 1 | $85.52 | Available to order | 1 |
| 5 | T2503437 Auxilary Fly Lead, JP | Auxilary Fly Lead, JP JP Only | 1 | $23.98 | Available to order | 1 |
| 6 | T2506179 Lead, Battery, Positive | Lead, Battery, Positive Not JP | 1 | $14.46 | Available to order | 1 |
| 6 | T2507072 Lead, Battery, Positive | Lead, Battery, Positive JP Only | 1 | $13.16 | Out of Stock | Notify Me |
| 7 | T2501422 Charger, USB, 5V, 170mm | Charger, USB, 5V, 170mm | 1 | $40.59 | Available to order | 1 |
| 8 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $144.49 | Available to order | 1 |
| 9 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 1 | $2.17 | Available to order | 1 |
| 10 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 11 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 3 | $0.67 | Available to order | 3 |
| 12 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 7 | $7.53 | Available to order | 7 |
| 13 | T2507126 Starter Lead | Starter Lead | 1 | $66.15 | Available to order | 1 |
| 14 | T2508394 Lead, Earth | Lead, Earth | 1 | $14.46 | Available to order | 1 |
| 15 | T2507820 Subharness, Engine | Subharness, Engine | 1 | $93.14 | Available to order | 1 |
| 16 | T2502124 Strap, ECU | Strap, ECU | 1 | $4.20 | Backorder — Late August 2026 | 1 |
| 17 | T2506311 Horn Assy, 440 Hz | Horn Assy, 440 Hz | 1 | $57.53 | Available to order | 1 |
| 18 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 1 | $3.50 | Available to order | 1 |
| 19 | T3100050 Stud, M6 x 28, Enc | Stud, M6 x 28, Enc | 1 | $3.70 | Available to order | 1 |
| 20 | T3700061 Clip, Cable Double | Clip, Cable Double | 1 | $5.30 | Available to order | 1 |
| 21 | T3700212 Band, Rubber | Band, Rubber | 1 | $3.29 | Available to order | 1 |
| 22 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 1 | $3.24 | Available to order | 1 |
| 23 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 | 1 | $0.97 | Available to order | 1 |
| 24 | T3700193 Clip, Double, Firtree | Clip, Double, Firtree | 2 | $1.13 | Available to order | 2 |
| 25 | T3551128 Washer, Serrated Lock, M8 | Washer, Serrated Lock, M8 | 1 | $1.79 | Available to order | 1 |
| 26 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $3.90 | Available to order | 1 |
| 27 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 1 | $2.63 | Available to order | 1 |
| 28 | T3704444 Clip, Cable Tie, Fir Tree | Clip, Cable Tie, Fir Tree | 2 | $2.49 | Available to order | 2 |
| 29 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 2 | $0.89 | Available to order | 2 |
| 30 | T2505128 Bracket, Harness Mount | Bracket, Harness Mount | 1 | $0.88 | Out of Stock | Notify Me |
| 32 | T2509939 Pad, Battery | Pad, Battery JP Only | 1 | $8.88 | Out of Stock | Notify Me |
