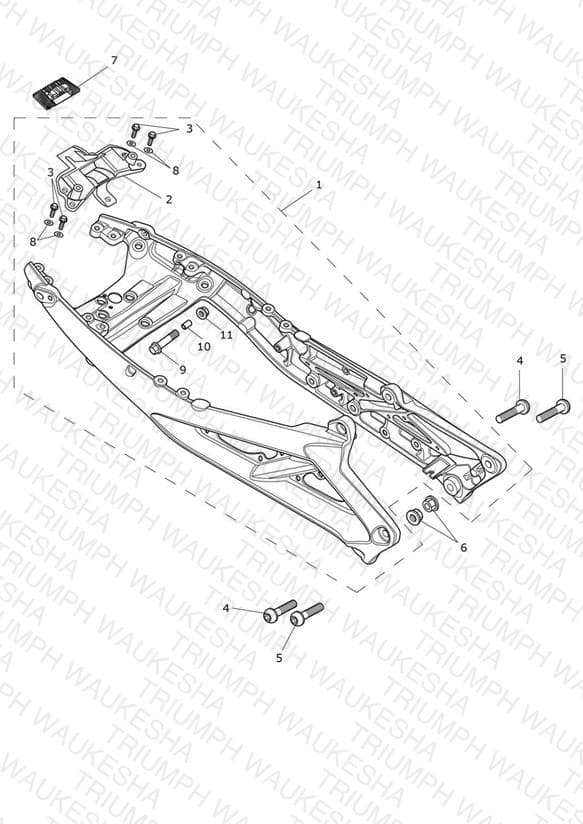

Rear Sub-Frame & Fittings
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2077699 Rear Subframe Assy, DD | Rear Subframe Assy, DD | 1 | $613.69 | Backorder — Late August 2026 | 1 |
| 2 | T2070577 Rear Bridge | Rear Bridge | 1 | $169.19 | Backorder — Late August 2026 | 1 |
| 3 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 4 | $3.50 | Available to order | 4 |
| 4 | T3332670 Bolt, TX, M10 x 30 | Bolt, TX, M10 x 30 | 2 | $4.92 | Available to order | 2 |
| 5 | T3332675 Bolt, TX, M10 x 40 | Bolt, TX, M10 x 40 | 2 | $15.12 | Available to order | 2 |
| 6 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 2 | $4.16 | Available to order | 2 |
| 7 | T2070651 Mounting Rubber | Mounting Rubber | 1 | $4.19 | Backorder — Late August 2026 | 1 |
| 8 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 4 | $1.69 | Available to order | 4 |
| 9 | T3202319 Bolt, HHF, M8 x 35, Slv | Bolt, HHF, M8 x 35, Slv | 1 | $2.63 | Available to order | 1 |
| 10 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 1 | $1.79 | Available to order | 1 |
| 11 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.45 | Available to order | 1 |
