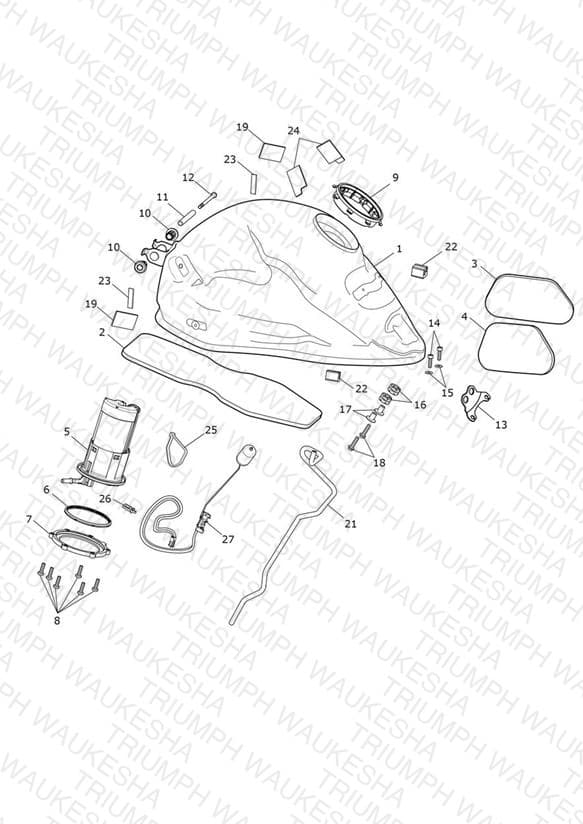

Fuel Pump & Fittings
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2407560 Fuel Tank, ED | Fuel Tank, ED | 1 | $1004.78 | Available to order | 1 |
| 2 | T2401641 Heat Pad, Fuel Tank, Centre | Heat Pad, Fuel Tank, Centre | 1 | $57.60 | Available to order | 1 |
| 3 | T2401642 Heat Pad, Fuel Tank, LH | Heat Pad, Fuel Tank, LH | 1 | $28.80 | Available to order | 1 |
| 4 | T2401643 Heat Pad, Fuel Tank, RH | Heat Pad, Fuel Tank, RH | 1 | $28.80 | Available to order | 1 |
| 5 | T2403892 Pump, Fuel, 3.5 Bar | Pump, Fuel, 3.5 Bar | 1 | $180.73 | Available to order | 1 |
| 6 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 7 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 8 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 9 | T2405473 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.12 | Available to order | 1 |
| 10 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.24 | Out of Stock | Notify Me |
| 11 | T2401070 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.09 | Available to order | 1 |
| 12 | T3205079 Bolt, HHF, Lghtd, M6 x 105, Slv | Bolt, HHF, Lghtd, M6 x 105, Slv | 1 | $3.50 | Available to order | 1 |
| 13 | T2403890 Bracket, Fuel Tank | Bracket, Fuel Tank | 1 | $13.33 | Available to order | 1 |
| 14 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 2 | $1.51 | Available to order | 2 |
| 15 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.40 | Available to order | 2 |
| 16 | T3020601 Grommet, Castellated | Grommet, Castellated | 2 | $4.01 | Available to order | 2 |
| 17 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 18 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 19 | T2403440 Protective Film, Fuel Tank | Protective Film, Fuel Tank | 2 | $3.07 | Available to order | 2 |
| 21 | T2401844 Drain Hose, Fuel Tank | Drain Hose, Fuel Tank | 1 | $12.63 | Available to order | 1 |
| 22 | T2400641 Pad, Rubber | Pad, Rubber | 2 | $2.74 | Backorder — Early August 2026 | 2 |
| 23 | T3660194 Rubber Strip, 30 x 10 x 1.3 | Rubber Strip, 30 x 10 x 1.3 | 2 | $8.19 | Available to order | 2 |
| 24 | T3660175 Rubber Pad, 30 x 45 x 3 | Rubber Pad, 30 x 45 x 3 | 2 | $5.78 | Available to order | 2 |
| 25 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
| 26 | T3700243 Clip, Wire Saddle, Side Entry | Clip, Wire Saddle, Side Entry | 1 | $3.18 | Available to order | 1 |
| 27 | T2406999 Level Sender, Fuel Tank | Level Sender, Fuel Tank | 1 | $162.94 | Available to order | 1 |
