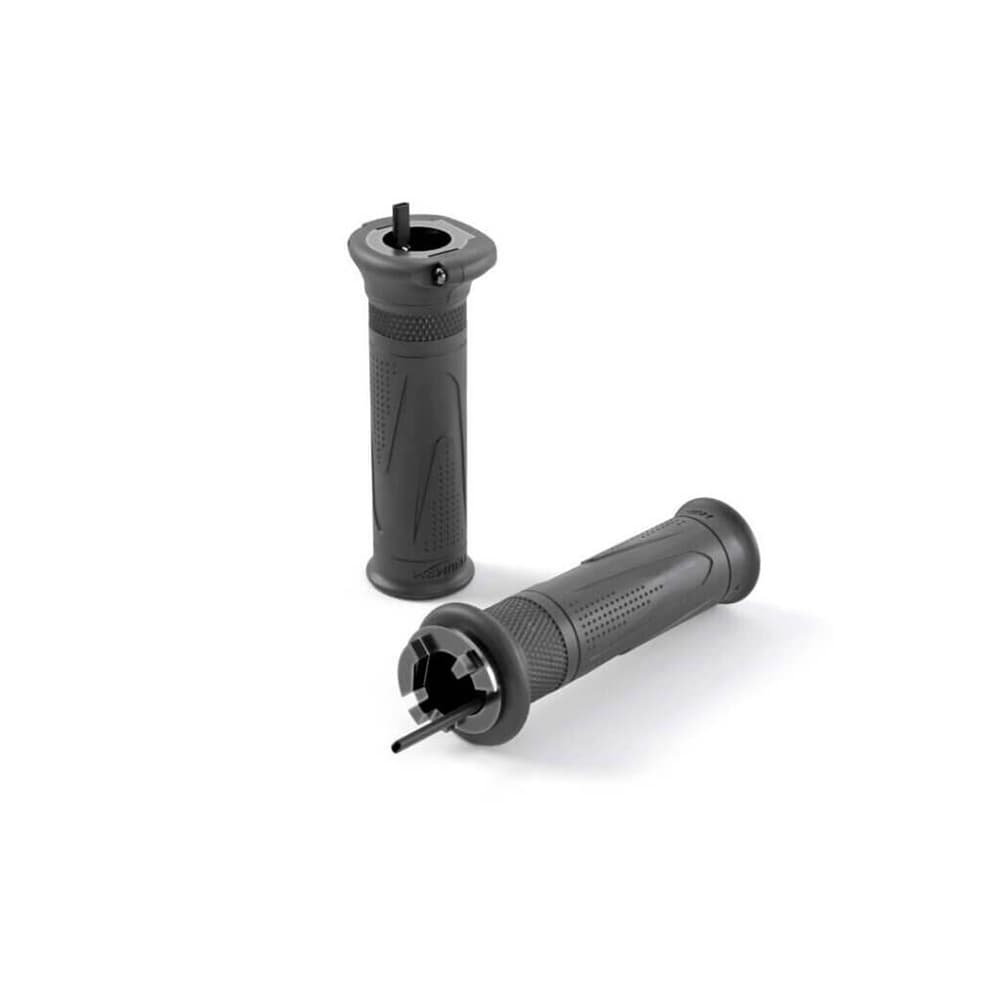

Heated Grip Kit

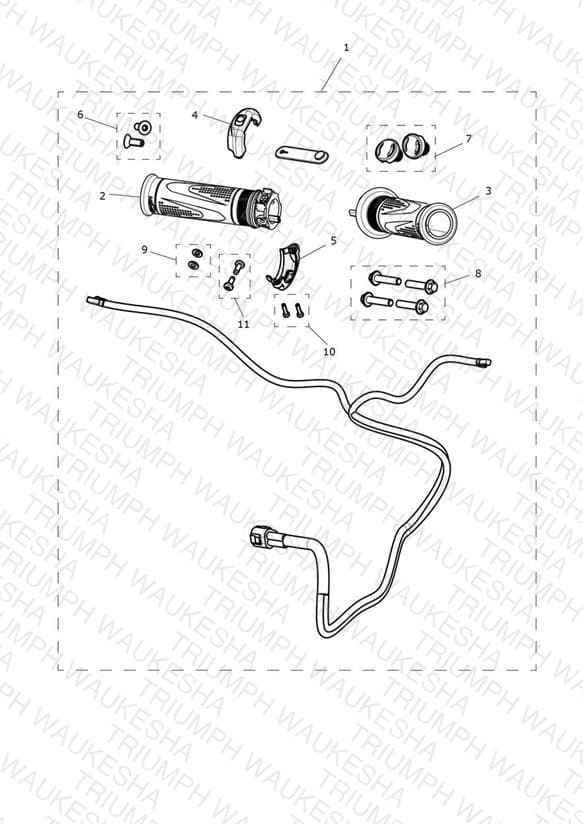

Schematic
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9638341 Heated Grip Kit | Heated Grip Kit | 1 | $325.00 | Available to order | 1 |
| 2 | T2046400 Heated Grip, RH | Heated Grip, RH | 1 | $176.68 | Available to order | 1 |
| 3 | T2046404 Grip, Heated, LH | Grip, Heated, LH | 1 | $153.78 | Available to order | 1 |
| 4 | T2043692 Heated Grip, Housing, Switch | Heated Grip, Housing, Switch | 1 | $7.38 | Available to order | 1 |
| 5 | T2043694 Heated Grip, Housing, Rear | Heated Grip, Housing, Rear | 1 | $7.30 | Available to order | 1 |
| 6 | T3330959 Screw, Csk, M6 x 16. Slv, Enc | Screw, Csk, M6 x 16. Slv, Enc | 2 | $2.37 | Available to order | 2 |
| 7 | T9631431 Plug, Bar End, Heated Grips | Plug, Bar End, Heated Grips | 2 | $2.22 | Available to order | 2 |
| 8 | T3202344 Bolt, RHHF, M6 x 28, Slv, Enc | Bolt, RHHF, M6 x 28, Slv, Enc | 4 | $3.07 | Available to order | 4 |
| 9 | T3550500 Washer, 4.3 x 9.0 x 0.8 | Washer, 4.3 x 9.0 x 0.8 | 2 | $1.72 | Available to order | 2 |
| 10 | T3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk | Screw, S/Tap, TX, 3 x 1.35 x 12, Blk | 2 | $5.02 | Available to order | 2 |
| 11 | T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD | Screw, S/Tap, Pan/Hd, M4 x 10, HD | 2 | $7.14 | Available to order | 2 |
