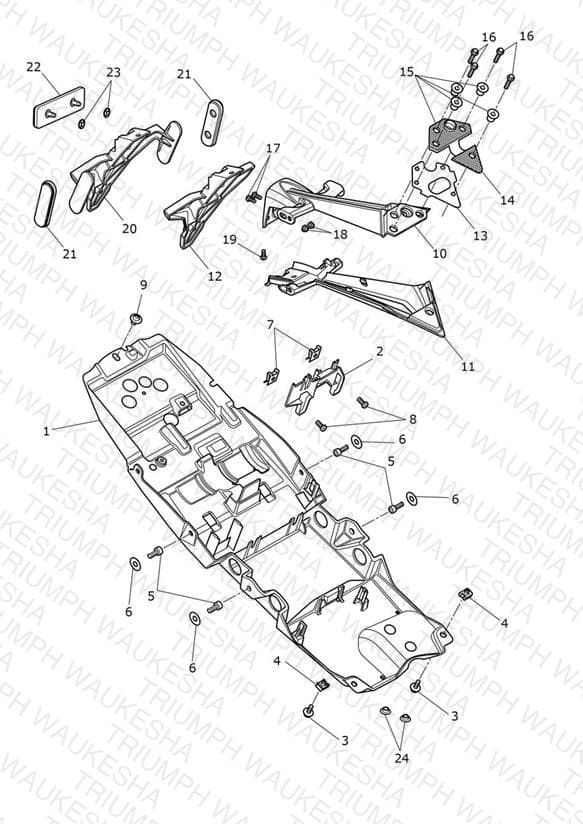

Rear Mudguard & No Plate Brkt
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2318749 Battery Tray, Moulding | Battery Tray, Moulding | 1 | $60.28 | Available to order | 1 |
| 2 | T2315494 Bracket, Electrical, Moulding | Bracket, Electrical, Moulding | 1 | $11.78 | Available to order | 1 |
| 3 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 2 | $9.00 | Available to order | 2 |
| 4 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.61 | Available to order | 2 |
| 5 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 4 | $1.04 | Available to order | 4 |
| 6 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 4 | $1.29 | Available to order | 4 |
| 7 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 2 | $2.63 | Available to order | 2 |
| 8 | T3330356 Screw, M5 x 10, S/S, Enc | Screw, M5 x 10, S/S, Enc | 2 | $6.46 | Out of Stock | Notify Me |
| 9 | T3701121 Rivet, Plastic, Screw Type | Rivet, Plastic, Screw Type | 1 | $1.29 | Out of Stock | Notify Me |
| 10 | T2302024 Number Plate Hanger, Upper | Number Plate Hanger, Upper | 1 | $39.92 | Out of Stock | Notify Me |
| 11 | T2308677 Number Plate Hanger, Lower | Number Plate Hanger, Lower | 1 | $45.47 | Available to order | 1 |
| 12 | T2320000 Number Plate, Moulding | Number Plate, Moulding All Except AR, CA, ID, US, ZA | 1 | $53.29 | Available to order | 1 |
| 13 | T2302225 Fixing Plate, No Plate Hanger | Fixing Plate, No Plate Hanger | 1 | $46.59 | Available to order | 1 |
| 14 | T2302226 Spacer, Rubber, No Plate Hanger | Spacer, Rubber, No Plate Hanger | 1 | $10.19 | Available to order | 1 |
| 15 | T3010713 Sleeve, Flgd, 6.4 x 11.5 x 11.5 | Sleeve, Flgd, 6.4 x 11.5 x 11.5 | 4 | $4.38 | Available to order | 4 |
| 16 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 4 | $2.61 | Available to order | 4 |
| 17 | T3332655 Screw, But/HD, M5 x 12. Slv | Screw, But/HD, M5 x 12. Slv | 2 | $0.95 | Unavailable | View Details |
| 18 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.40 | Available to order | 2 |
| 19 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv | 1 | $6.06 | Available to order | 1 |
| 20 | T2703122 Moulding, No Plate & Reflectors | Moulding, No Plate & Reflectors AR, CA, ID, US, ZA Only | 1 | $58.76 | Available to order | 1 |
| 21 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 2 | $6.54 | Available to order | 2 |
| 22 | T2707111 Reflex Reflector | Reflex Reflector | 1 | $10.52 | Available to order | 1 |
| 23 | T3550253 Washer, Dia 5 mm, Retaining | Washer, Dia 5 mm, Retaining | 2 | $1.04 | Available to order | 2 |
| 24 | T3450302 Plug, Dia 15 | Plug, Dia 15 | 2 | $3.27 | Backorder — Early November 2026 | 2 |
